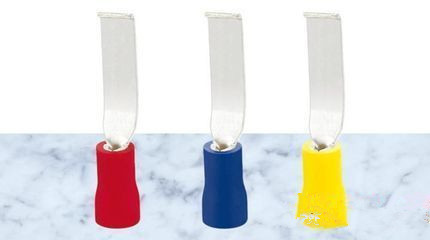

Concave Plate Shape Pre-Insulated Terminal

Name: Concave Plate Shape Pre-Insulated Terminal
Brand: all-electronics-online.com
SKU: 734080785
Availability: InStock
Rating: 4.5 (139 reviews)

Price:	US $ 0.09/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LBV 1.25-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Hook Shaped
Color:	Red, Blue, Yellow
Application:	Conduct Electricity
Material:	Copper
Brand:	Jma
Certification:	CE

Product Description

Specifications
Certificate: ISO9001: 2000
Current Supply: Imax=19A, 27A
WIRE RANGE: 0.5~1.05Mm² (A. W. G. 22~16)
MAXMUM ELECTRICAL RATING-IMAX=19A

ITEM NO.	DIMENSION						COLOR
	W	L	F	B	D	C
	mm	mm	mm	mm	mm	mm
LBV1.25-3	3.0	26.8	16.8	10.0	4.3	1.7	Red
LBV1.25-4.6	4.0	26.8	16.8	10.0	4.3	1.7	Red

WIRE RANGE:1.5~2.5Mm²(A.W.G.16~14)
MAXMUM ELECTRICAL RATING-IMAX=27A

ITEM NO.	DIMENSION						COLOR
	W	L	F	B	D	C
	mm	mm	mm	mm	mm	mm
LBV2-3	3.0	26.8	16.8	10.0	4.9	12.3	Blue
LBV2-4.6	4.6	26.8	16.8

WIRE RANGE:4-6mm²(A.W.G.12~10)
MAXMUM ELECTRICAL RATING-IMAX=48A

ITEM NO.	DIMENSION						COLOR
	W	L	F	B	D	C
	mm	mm	mm	mm	mm	mm
LBV5.5-3	3.0	29.3	16.8	10.0	4.9	12.3	Blue
LBV 5.5-4.6	4.6	29.3	16.8

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
