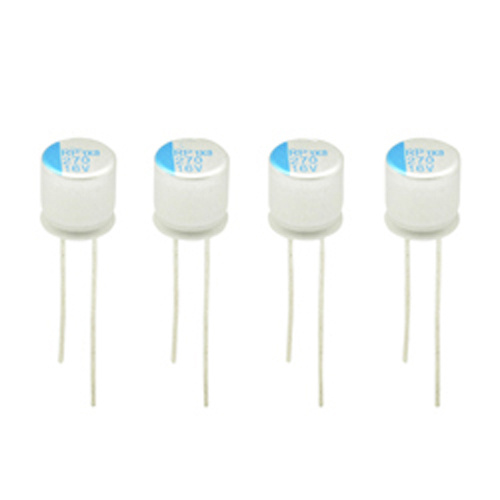

Conductive Polymer Aluminum Solid Capacitors (RP Series)
| Price: |
US $ 0.5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TMCE31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
16VDC |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
270UF |
Product Description
Conductive Polymer Aluminum Solid Capacitors (RP Series)
Scope: This specification covers polarized aluminum electrolytic capacitors with solid electrolyte for use in electronic equipment.
Reference Standard: JISC 5101-4-2 1998 Aluminum electrolytic capacitors with solid electrolyte
| Operating Temperature Range | -55° C-~+105° C |
| Rated Voltage | 16VDC |
| Surge Voltage | 18.4VDC |
| Dissipation Factor (tan δ ) | 0.12 |
| Measurement Frequency | 120Hz. Temperature: 20° C |
| Measurement Voltage (V) | No more than 0.5Vrms+2.1~2.5VDC |
| Capacitance Tolerance | ± 20% (120Hz, 20° C) |
| Capacitance | 270uF |
ESR: 12mΩ
Measurement Frequency: 100~300kHz± 10%
Measurement Voltage (V): No more than 0.5Vrms+2.1~2.5VDC
Temperature: 20° C± 10° C
Leakage Current: The rated voltage shall be applied between terminals of capacitor such that the terminal voltage will reach the rated voltage with in two minute and the leakage current shall be measured at following time after the voltage has reached the rated voltage across a 1000± 10Ω Series protection resistor. Then the current value shall not be exceed value calculated from following formula.
Rated 16V/270uF LC(2 Minute) 864uA
Temperature Characteristics: Measurement Impedance at +20± 2° C, 100kHz± 20%
Measurement Impedance at -25± 2° C, 100kHz± 20%
Measurement Impedance at -55± 2° C, 100kHz± 20%
Impedance ratio of the -25° C and -55° C values to the +20° C value shall be not exceed the following values.
Z(-25° C)/Z(+20° C) 1.15
Z(-55° C)/Z(+20° C) 1.25
Endurance( Load Life Test)
Capacitors shall be applied the rated voltage continuously through 1000Ω Series protective resistor at 105± 2° C for 2000hours. After the test and returned in standard condition for 1~2 hours, and the capacitor shall meet the following requirements.
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.
Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.
Presently, Topmay products mainly include the following products:
The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.
Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.
Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
