Conduit Installation 6 Core Multimode/Singlemode Fiber Optic Cable Drop Cable

Name: Conduit Installation 6 Core Multimode/Singlemode Fiber Optic Cable Drop Cable
Brand: all-electronics-online.com
SKU: 818206815
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 0.15-0.25/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYFXTH
Fiber Type:	G652D/G657A
Fiber Count:	2-24cores
Fiber:	Singlemode
Central Member:	Glass Yarn/ Kevlar Yarn
Applications:	Indoor/Outdoor
Installation Temperature:	-40~+70
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yueyou
Sheath Material:	PE/LSZH Material

Product Description

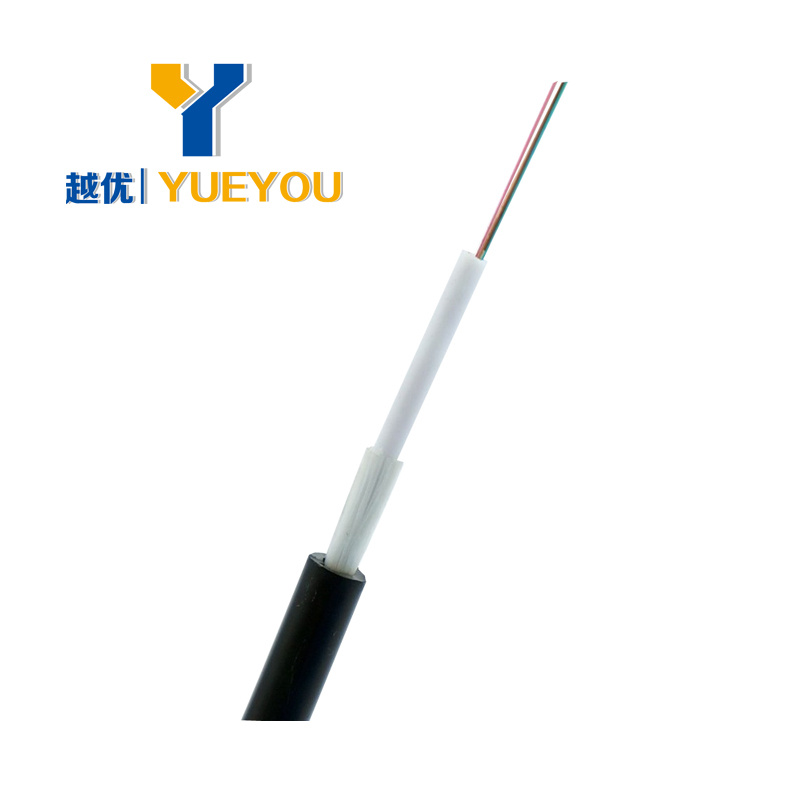

Conduit Installation 6 Core Multimode/Singlemode Fiber Optic Cable Drop cable

Description:

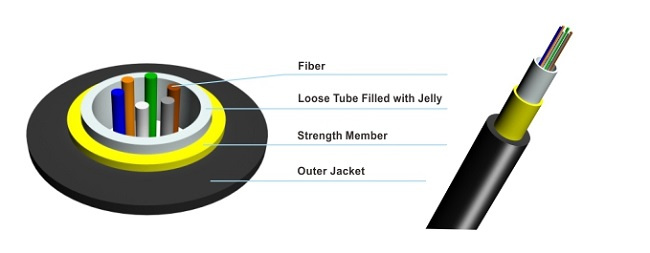

The fiber are positioned in a loose tube made of high modulus plastic,PBT loose tube are filled with
water-resistance filling compound,Glass yarn strength member are covered with loose tube.
Outer sheath is made of UV resistance LSZH jacket.

Features:

Fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Strength Member: Glass Yarn.

Gel filled loose tubes for a critical protection of fiber.

Small diameter, light weight, flexible, easy installation.

LSZH sheath flame resistance.

IEC 60332-1-2standard.

Application:

Duct, access, date center, computer room.

Fiber Characteristics:

Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km

Physical characteristics and mechanical performance:

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-12	6.0±0.2	27±10	1200/500	1000/300	20D/10D	-40~+70
14-24	6.5±0.2	33±10	1200/500	1000/300	20D/10D	-40~+70

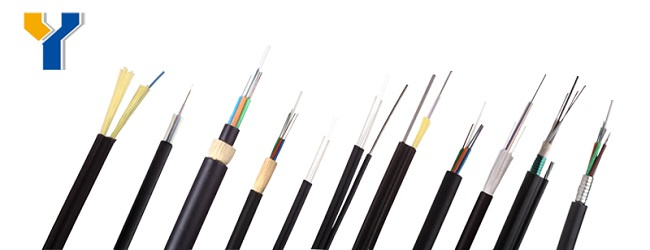

More popular products:

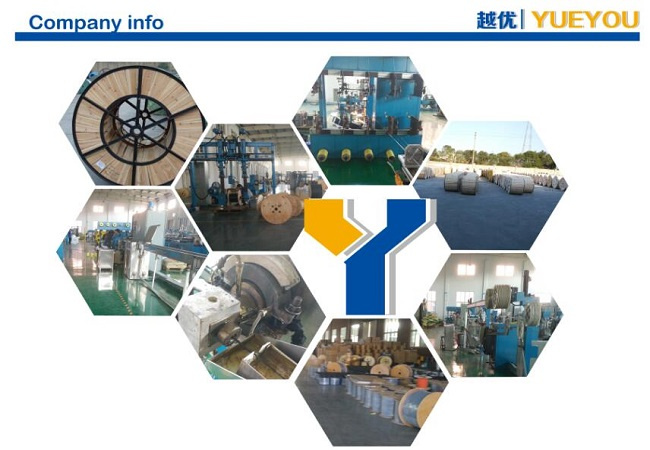

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
