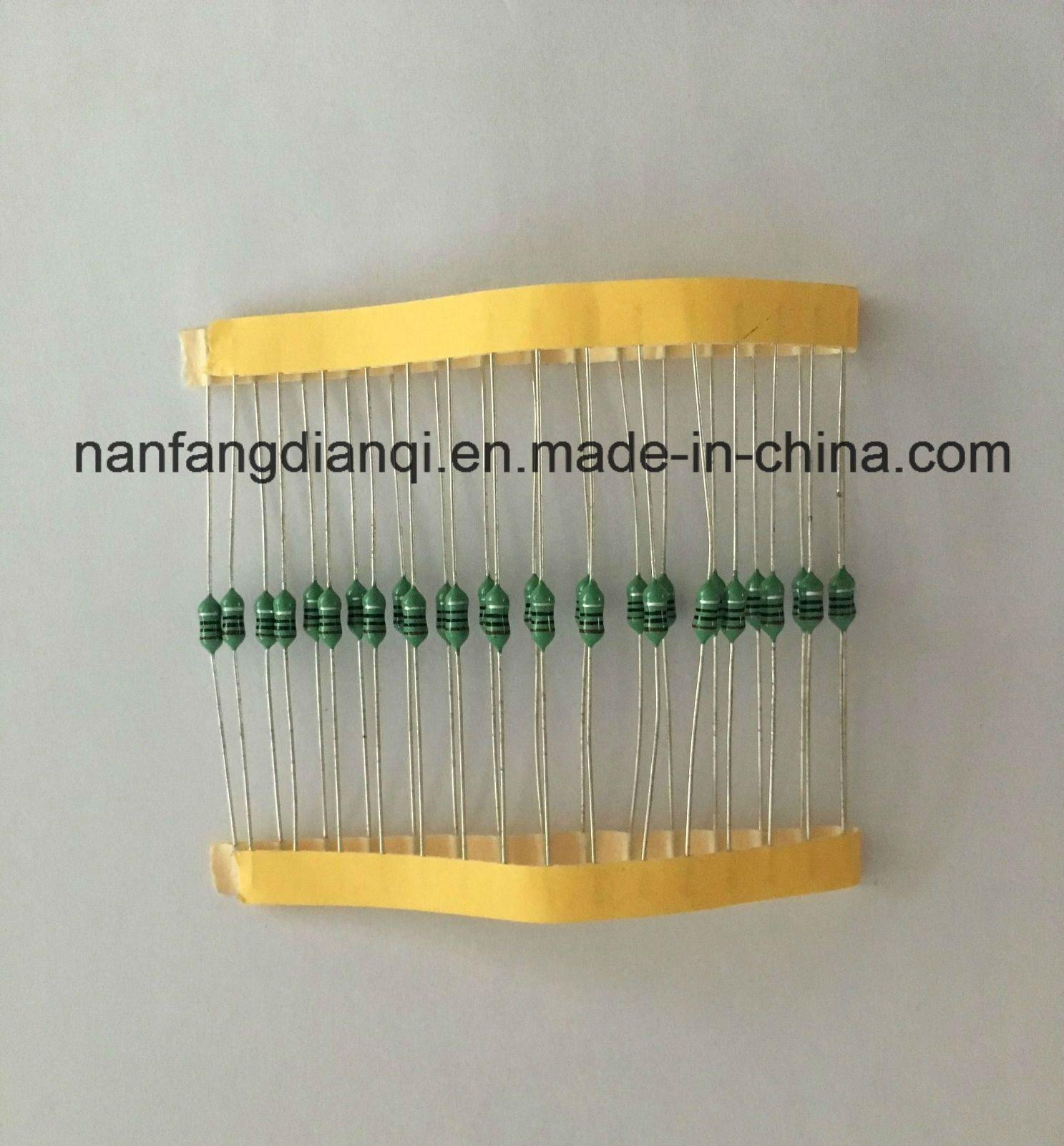

Conformal Colored Axial Inductors with Size 3*7

Name: Conformal Colored Axial Inductors with Size 3*7
Brand: all-electronics-online.com
SKU: 824601425
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGA
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Other Certification:	RoHS
Tolerance:	5%,10%,20%
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

Colored inductors
1. Many kinds of inductors.

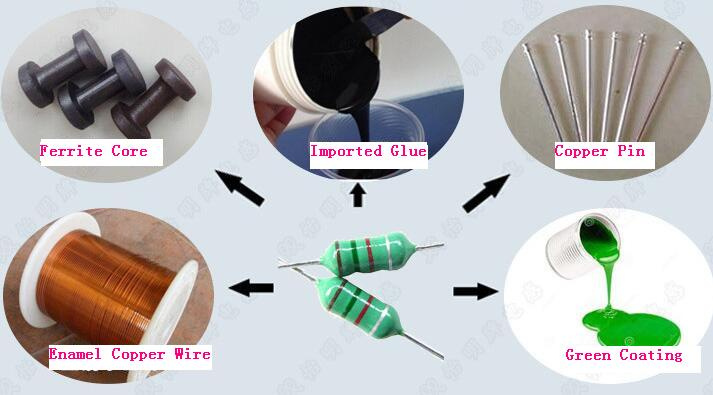

2. Contain high-frequency ferrite.
3. Comparaticely large rated current.
4. Low cost

Applications in
1. Televisions
2. VCR
3. OA equipment
4.PC
5.other electronic equipment

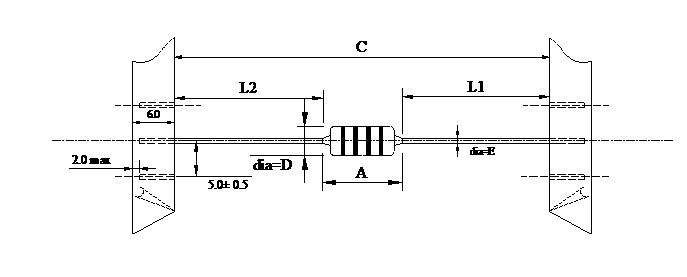

Feature: 1. Low cost 2. Exceptional Q characteristics 3. High reliability 4. High self-resonant frequency 5. Low DCR LGA0307TYPE: A:7.0max D:3.0max C:(52 or 26) 52±1.0 E:0.50 \|L1-L2\|<1.0 LGA0410TYPE: A:10.0max D:4.0max C:52±1.0 E:0.60 \|L1-L2\|<1.0 LGA0510TYPE: A:10.0max D:5.0max C:52±1.0 E:0.60 \|L1-L2\|<1.0 LGA0512TYPE: A:12.0max D:5.0max C:52±1.0 E:0.60 \|L1-L2\|<1.0

Inductance Area and Current Area
LGA0204 0.1uH~1.0mH 700mA~20mA
LGA0307 0.1uH~1.0mH 700mA~60mA
LGA0410 0.1uH~1.0mH 900mA~100mA
LGA0510 1.2mH~100mH 110mA~5mA

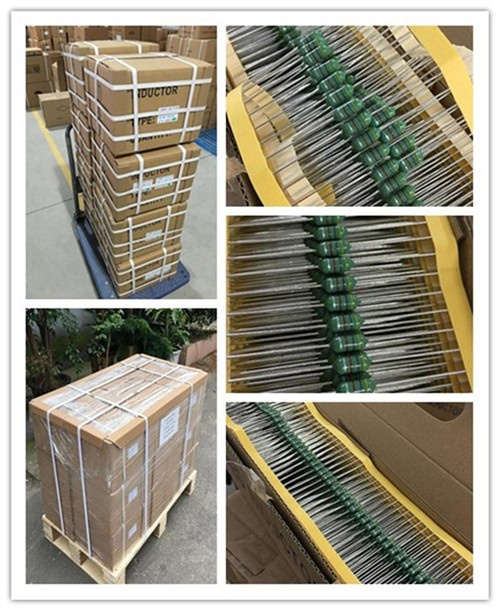

Packing mode	LGA0204	LGA0307	LGA0410	LGA0510
On taping	4000PCS/BOX	3000PCS/BOX	2000PCS/BOX	1000PCS/BOX
In bulk	1000PCS/BAG	1000PCS/BAG	1000PCS/BAG	1000PCS/BAG

Color code table:

color	effective number	multiplier	Inductance tolerance
Black	0	1	±20%
Brown	1	10	-
Red	2	100	-
Orange	3	1000	-
Yellow	4	-----	-
Green	5	-----	-
Blue	6	-----	-
Purple	7	-----	-
Gray	8	-----	-
White	9	-----	-
Silver	-	0.01	±10%
Gold	-	0.1	±5%

Color code marking(from left)
1.The first effective number
2.The second effective number
3.Multiplier
4.Inductance tolerance

Our features

(1)Fastest Lead Time

(2)Low Minimum Order

(3) Regular purchase with competitive prices and reliable supply

(4)Warranty is A Least 8 Months

(5)New Original & PB Free

[Payment Information]

1. T/T (Wire Transfer)

2. WESTERN UNION

3. L/C

If you find any interest in our products,please feel free to contact us !

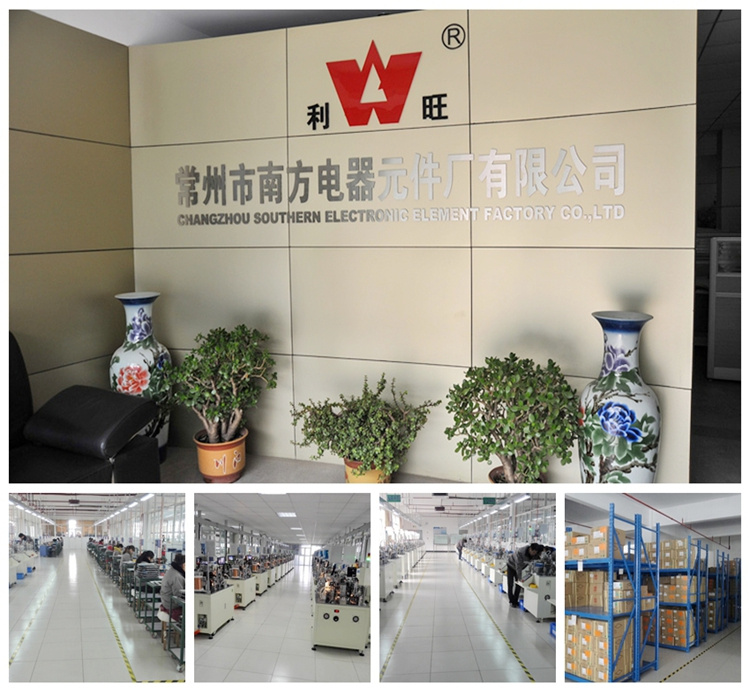

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
