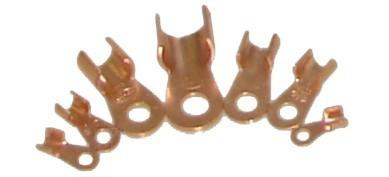

Connecting Terminals/Ot Copper Passing Through Terminals

Name: Connecting Terminals/Ot Copper Passing Through Terminals
Brand: all-electronics-online.com
SKU: 735042115
Availability: InStock
Rating: 4.8 (72 reviews)

Price:	US $ 0.255/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OT-10A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stainless Steel Cable Lug:	Cable Lugs and Sleeve
Application:	Conduct Electricity
Type:	Single Hole Terminals
Material:	Aluminum

Product Description

The advantage is that it has good electric conductance, electrochemlcal corrosion resistance, long service life

Material: 99.9% copper
Finished: Tin-plated

1. Operating temperature: -55~150
2. Packing: Standard export packing

Specification
1) Application: Connection of copper conductor (section 1.5-1000mm2) in power cable with electronic equipment
2) Material: >99.9% pure copper tube T2, good conductivity
3) Surface Treatment: Tinned, corrosion resistance
4) Working Temperature: -55° C-150° C
5) Certificate: CE, ISO9001-2000
6) Manufacturer: Price advantage

GTY Copper Connecting Tube
1. Good quality in much competitive price
2. Series spy hole copper connecting terminal(cable lug)
3. Tinned coated
GTY copper connecting tube information:
1. The advantage is that it has good electric conductance, electrochemlcal corrosion resistance, long service life
2. Certification: CE. ISO9001
3. These products are applicable for the circular wire, hemicyclic wire with power supply cable in distribution equipment. They are made of with higher 99.9 percent pure copper tube T2 and coated with tin.

Item No	Dimension ( mm )
Item No	Φ	H	L	R	R1	A
OT-10A	5.2	6	14.5	4.5	2	0.8
OT-20A	6.2	7	17	5.5	2.5	1
OT-30A	6.2	8.2	19	5.8	3.2	1.2
OT-40A	6.2	9	19.5	6.2	3.5	1.2
OT-50A	6.2	9	21.5	6.5	3.5	1.2
OT-60A	8.2	10	23	7	4	1.4
OT-80A	8.2	11	25	8	4.5	1.5
OT-100A	8.2	12	29	8.5	5	1.5
OT-150A	10.2	12	31	9	5.5	1.6
OT-200A	10.2	14	33	10	6	1.7
OT-250A	10.2	15.5	36	10.5	6.5	2
OT-300A	12.2	16	40	11.5	7	2
OT-400A	14.2	18	43	13	8	2.2
OT-500A	14.2	20	46	14.5	8.5	2.4
OT-600A	16.0	22	50.5	16	10.5	2.8
OT-800A	18.2	26	61	17.5	12.5	3.2
OT-1000A	18.2	33	66	20.5	15.5	3.8

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
