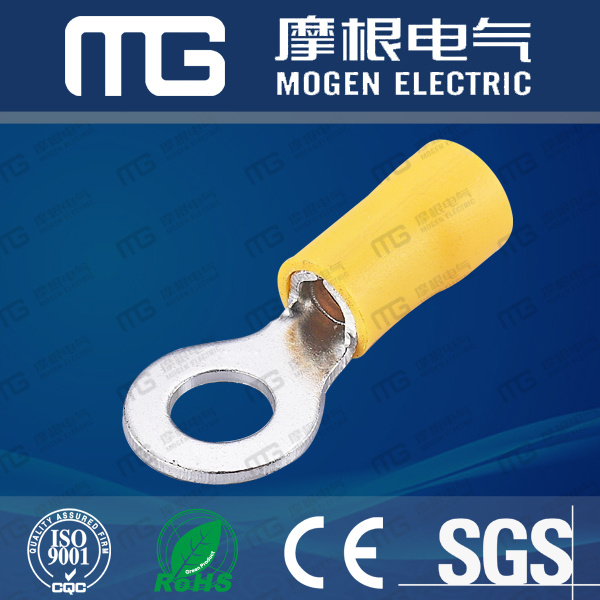

Connection Wiring Terminals

Name: Connection Wiring Terminals
Brand: all-electronics-online.com
SKU: 726162115
Availability: InStock
Rating: 5 (21 reviews)

Price:	US $ 0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV5.5-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Yellow
Plating:	Tin
Application:	Transmission of Electrical Signals
Type:	Single Hole Terminals
Brand:	Mogen
Material:	Copper, Purple Copper

Product Description

Product Description:

Nylon or PVC insulated cable terminal

1. Certifications: CE, SGS, ISO9001
2. Material: Made by high purity copper tube T2
3. Plating: Tin
4. Material thickness: 0.7mm-1.0mm
5. Color: Red, Blue, Black, Yellow
6. Using: Connect wire with electrical equipment

There are many kinds of insulated cable terminals to choose ring terminal, fork terminal, hook terminal, butt connector, pin terminal, flange spade terminal.

No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
1	RV1.25-3.2	#4	3.2	5.7	17.8	4.95	10.0	4.3	Red
2	RVS1.25-3.7	#6	3.7	5.7	17.8	4.95
3	RVM1.25-3.7	#6	3.7	6.6	20.1	6.3
4	RVL1.25-3.7	#6	3.7	8.0	21.5	7.0
5	RVS1.25-4	#8	4.3	6.6	20.1	6.3
6	RVL1.25-4	#8	4.3	8.0	21.5	7.0
7	RV1.25-5	#10	5.3	8.0	21.5	7.0
8	RV1.25-6	1/4	6.5	11.6	27.5	11.1
9	RV1.25-8	5/16	8.4	11.6	27.5	11.1
10	RV1.25-10	3/8	10.5	13.6	31.6	13.9
Cable size:1.5~2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
11	RV2-3.2	#4	3.2	6.6	17.8	4.3	10.0	4.9	blue
12	RVS2-3.7	#6	3.7	6.6	17.8	4.3
13	RVM2-3.7	#6	3.7	6.6	21.0	7.0
14	RVL2-3.7	#6	4.7	8.5	22.5	7.75
15	RVS2-4	#8	4.3	6.6	21.0	7.0
16	RVL2-4	#8	4.3	8.5	22.5	7.75
17	RVS2-5	#10	5.3	8.5	22.5	7.75
18	RVL2-5	#10	5.3	9.5	22.5	7.25
19	RV2-6	1/4	6.5	12.0	27.6	11.0
20	RV2-8	5/16	8.4	12.0	27.6	11.0
21	RV2-10	3/8	10.5	13.6	30.2	13.9
Cable size:2.5~4mm²(A.W.G.14-12) Max current:Imax=37A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
21	RV3.5-4	#8	4.3	8.0	24.5	7.7	12.5	6.2	black
22	RVS3.5-4	#10	5.3	8.0	24.5	7.7
23	RVL3.5-5	#10	5.3	12.0	27.9	7.7
24	RV3.5-6	1/4	6.5	12.0	27.9	7.7
Cable size:4~6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
25	RV5.5-3.7	#6	3.7	7.2	21.4	5.9	12.5	6.7	yellow
26	RVS5.5-4	#8	4.3	7.2	21.4	5.9
27	RVL5.5-4	#8	4.3	9.5	25.5	8.3
28	RV5.5-5	#10	5.3	9.5	25.5	8.3
29	RVS5.5-6	1/4	6.5	12.0	31.5	13.0
30	SV5.5-8	5/16	8.4	15.0	33.7	13.7
31	SV5.5-10	3/8	10.5	15.0	33.7	13.7
32	SV5.5-12	1/2	13.0	19.2	38.1	16.0
