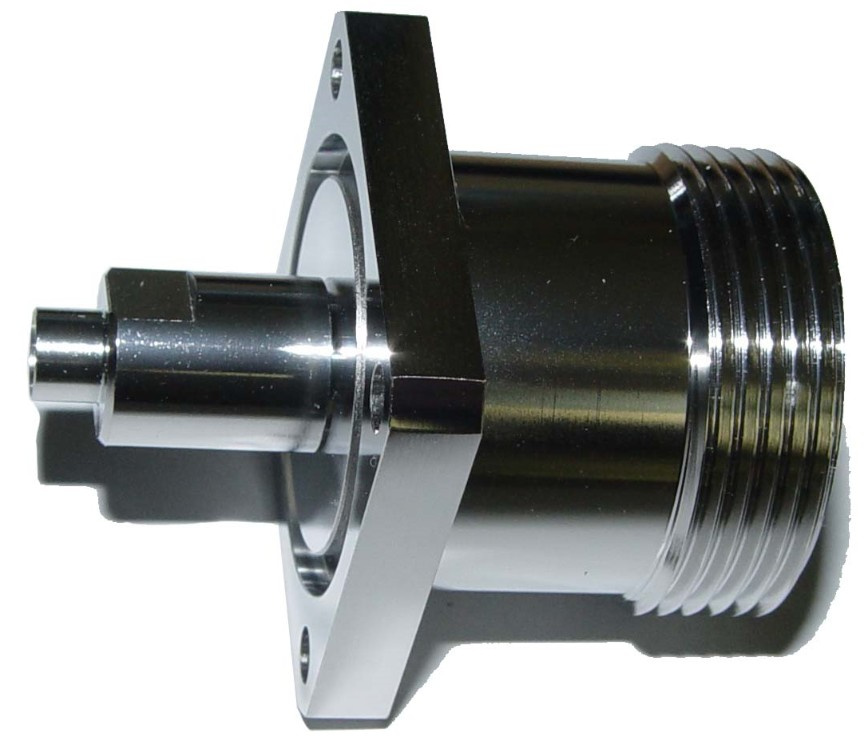

Connector 7/16 Female for 141 Semi-Flexible Series Cable

Name: Connector 7/16 Female for 141 Semi-Flexible Series Cable
Brand: all-electronics-online.com
SKU: 779208575
Availability: InStock
Rating: 4.8 (123 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	7/16 Female For 141 Semi-Flexible Series Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Interface Type:	4.3/10 Type
Brand:	Rfconnector

Product Description

Interface

7/16 Female For 141 Semi-Flexible Series Cable
Electrical
Characteristic Impedance			50Ω
Freqency Range			DC~3000MHz
Insertion Loss			≤0.15dB
Return Loss		800~1000MHz	≤28dB
		1700~2200MHz	≤28dB
IM3(20W)	static IMD		≤-116dBm
	dynamic IMD		≤-112dBm
Dielectric Withstanding Voltage			1500VAC
Dielectric Resistance			10000 MΩ
Contact Resistance	Inner Conductor		0.4mΩ
	Outer Conductor		0.2mΩ
Mechanical
Interface			716 Female
According with the Standard			IEC 60169-4
Suitable Cable			141 Semi-Flexible Series Cable
Durability			500 Cycles
Environmental
Temperature Range			-55-+155ºC
Water-Proofing			IP68

Durability

Mating cycles ≥500

Material and plating

Description	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	-
Center conductor	Phosphor bronze	Ag
Other	Brass	Ni
RoHs compliance	Full ROHS compliance
Salt-fog test	96h

FAQ
1, What is your MOQ?
Our MOQ usually is 10,00pcs, but we accept lower quantity for your trial order.
2, Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .
3,Can you supply sample for test and your samples are free?
Yes, usually we will make sample specially according to clients' request , and the sample cost and freight charge will be paid by clients, but the sample cost will be return back to client after order confirmed in future.
4,Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
