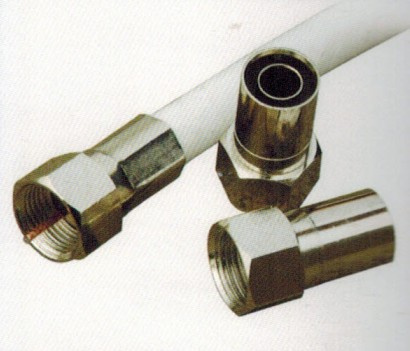

Connector Wtih SGS Approved TV Connector

Name: Connector Wtih SGS Approved TV Connector
Brand: all-electronics-online.com
SKU: 709742695
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 0.120-0.125/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 CONNECTOR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RG6 F Connector:	The Length of The 22mm
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection

Product Description

F Connector Cable Class A High Quality (110dB)

Connected to CD player, Audio and Video player or computer system, etc. This cable set maximizes signal transfer for optimum sound.

Features:
1. F plug-plug
2. OD: 7.0mm
3. (1/0.643*FPE+AL+64#/0.12BC)*1C
4. Golded connector metal slive white

Electrical:
Testing: 100% open and short test
Contact Resistance: 30M Ohms Max
Voltage rating: AC/DV 125V
Current rating: AC/DV 1A
Withstanding Voltage: AC 250V/1 Min
Insulation resistance: 100M Ohms Min
Working Temperature: -25° ~+85°

Mechanical:
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
Packing: PE bag, Blister packing, or others

o.	Test parameters		Unit	Specifications	Test Resuits			Conclusions
o.	Test parameters		Unit	Specifications	1#	2#	3#	Conclusions
1	Frequency Range		MHz	5~1000	5~1000	5~1000	5~1000	Qualified
2	Insertion Loss		dB	≤0.08(0.05) (5~300MHz)	0.044	0.043	0.052	Qualified
2	Insertion Loss		dB	≤0.08(0.05)(300~1000MHz)	0.08	0.09	0.11	Qualified
3	Return Loss		dB	≥2N2(28) (5~300MHz)	35.3	34.8	34.5	Qualified
3	Return Loss		dB	≥20(26) (300~1000MHz)	30.9	30.0	32.6	Qualified
4	Screening attenuation		dB	≥90(100)	93.5	92.5	92.5	Qualified
5	Contact resistance		MΩ	≤10(Inner conductor)	––	––	––	––
5	Contact resistance		MΩ	≤5(Outer conductor)	4.7	4.6	4.5	Qualified
6	Insulation Resistance		MΩ	≥1000 (DC voltage 500V)				Qualified
7	Pressure		––	1 minute without breakdown (AC Voltage 1500V)	No breakdown	No breakdown	No breakdown	Qualified
8	Soaking		––	Waterproof(Soaking,24h)	––	––	––	––
9	Damp	Pressure	V	≥800(40Celsius±2Celsius,93%±3%,24h)	Greater than800	Greater than800	Greater than800	Qualified
9	Damp	Insulation Resistance	MΩ	≥250(40Celsius±2Celsius,93%±3%,24h)	49000	49000	48000	Qualified
10	High Temperature Insulation Resistance		MΩ	≥500(85Celsius±5Celsius,16h)	49000	50000	50000	Qualified
11	Cryogenic insulation resistance		MΩ	≥1000(-40Celsius±5Celsius,2h)	50000	50000	49000	Qualified

Jiangsu Yuandong electronic and technology Co., Ltd. Was founded in 2012, we are a manufacturer and professional in CATV connector area.

We can do OEM and ODM for service, our designer can make special design according to your requirements.

As for quality controlling, we think quality is priority. Our company always attach great importance to quality controlling from the very beginning to the very end:

1). All the material we used are according to RoHS.;

2). Skillful workers care every details in handling the producing and packing processes;

3). Quality control department specially is responsible for quality checking in each process.
