Connectors Manufacturing USB Converters USB Waterproof Panel Mount USB Waterproof Extension Cable Connector

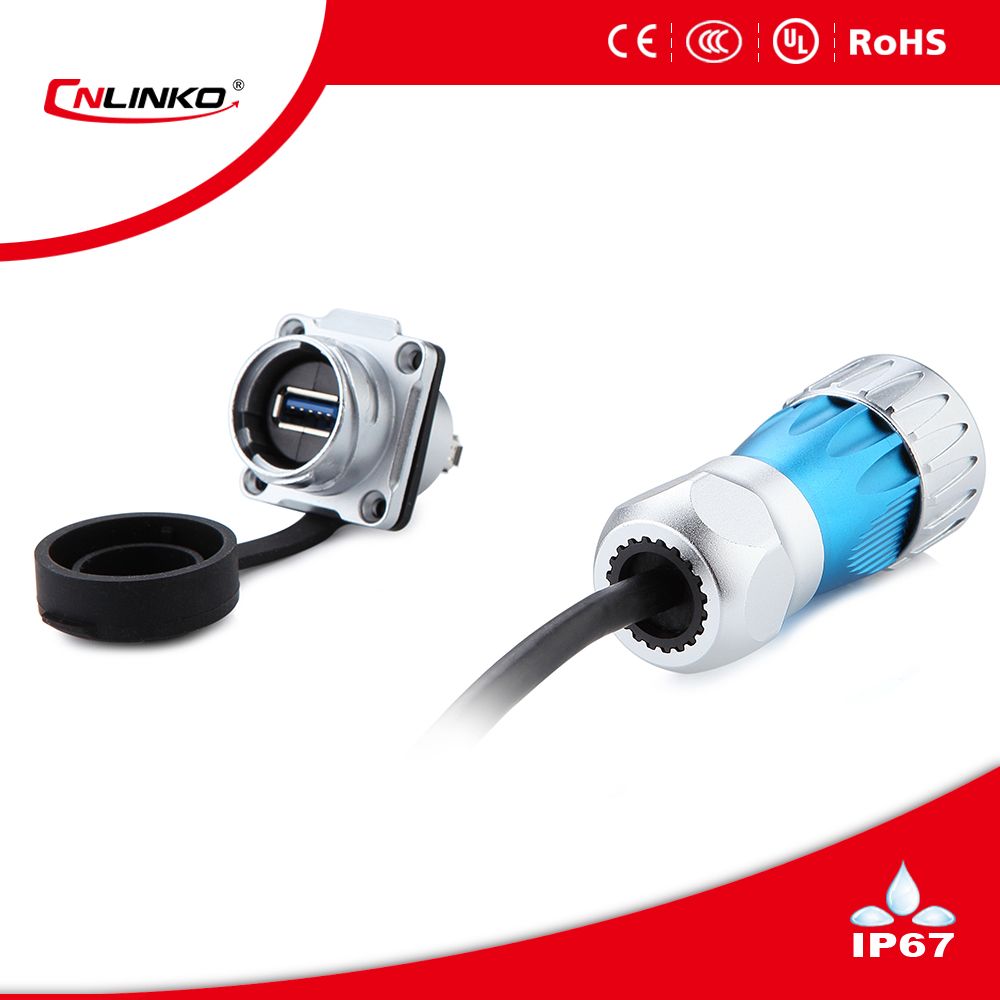

Name: Connectors Manufacturing USB Converters USB Waterproof Panel Mount USB Waterproof Extension Cable Connector
Brand: all-electronics-online.com
SKU: 777927605
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 9.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-24-USB3.0-P01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	USB3.0 Male Plug with 1m Cable
MOQ:	100PCS
Usage:	Data Box
Housing:	High-Performance Engineering Plastics
Flammability Rating:	UL94-V0
Application:	UHF
Gender:	Plug and Socket

Product Description

DH-24 series USB connectors IP65/IP67
1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
8. Waterproof IP65/IP67 while connection.

DH-24-USB3.0-P01 USB3.0 male plug with 1m cable
Specifications:
Connecting mode:	Plug&unplug
Protection level:	IP65/IP67
Cable specification:	0.15mm2 ~ 0.20mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
