Constant Current EU LED Driver 96W 1.2A with Ce/EMC

Name: Constant Current EU LED Driver 96W 1.2A with Ce/EMC
Brand: all-electronics-online.com
SKU: 798517855
Availability: InStock
Rating: 4.9 (67 reviews)

Price:	US $ 5.9-8.9/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD100-1SCH72-1200
Output Power:	96W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	176X41X30 mm
Brand:	Fsp-Powerland

Product Description

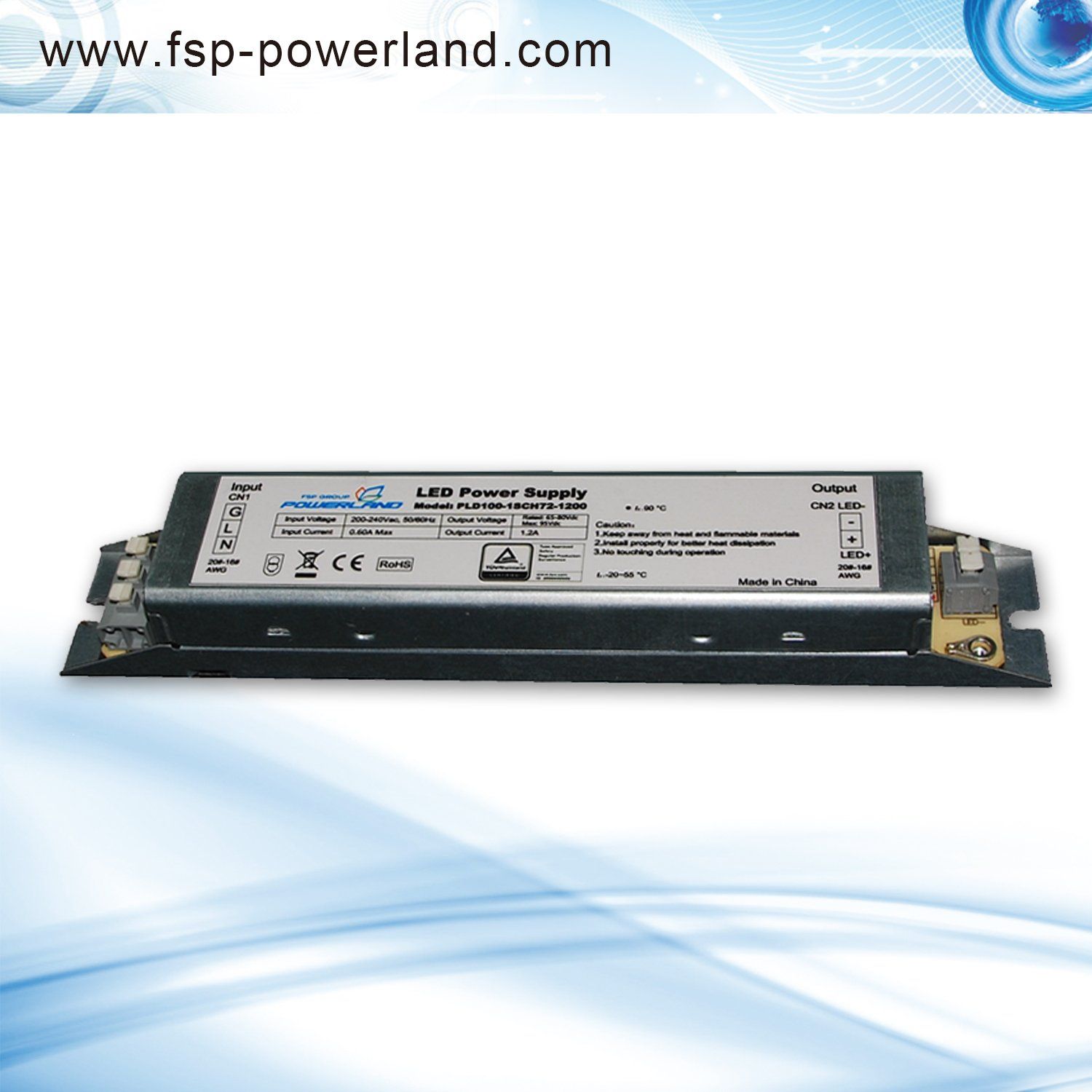

Constant Current EU LED Driver 96W 1.2A with CE/EMC

PLD100-1SCH72-1200 offers 96W constant current drivers with 180~264Vac input.
The output current of this series is up to 1.2A, and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase

3 years warranty at 60ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD100-1SCH72-1200
Output Voltage	65~80V
Output Current	1.20A
Output Power	96W
Max. Current Ripple	500mA
Voltage Range	180~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.6A
Max. Input Power	124W
Power Factor	>0.90 @ 230Vac & 100% load
Efficiency	90%
Max. Open Circuit Voltage	95V
THD	<30% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-20~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	N/A
Dimension	176x41x30 mm
Mounting Length	222 mm
Overall Length	232 mm
Weight	0.27 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

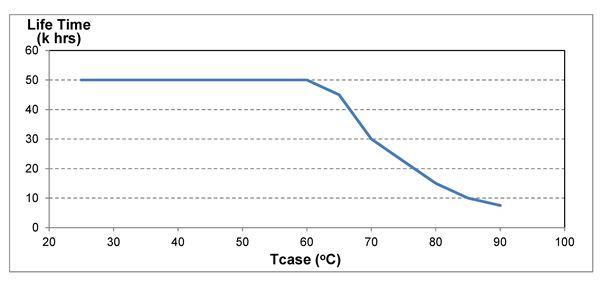

Life Time vs. Case Temperature

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
