Constant Current LED Driver with Triac/Elv Dimmable 52W 1.2A

Name: Constant Current LED Driver with Triac/Elv Dimmable 52W 1.2A
Brand: all-electronics-online.com
SKU: 798672475
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	US $ 12.7-19/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD052-1SCF512T-1200
Output Power:	52W
Dimming:	Triac/Elv Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	95X70X32 mm
Brand:	Fsp-Powerland

Product Description

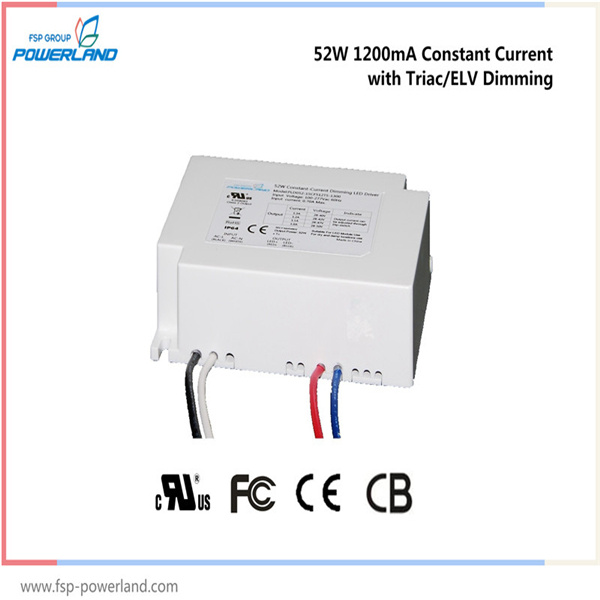

Constant Current LED Driver with Triac/Elv Dimmable 52W 1.2A

PLD052-1SCF512T-1200 offers constant current drivers with wide-range dimmable output
current and 90~305Vac universal input.

The output current of this series is up to 1.2A ,and designed for Triac/ELV dimming applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
100,000 hours lifetime at 65oC Tcase

5 years warranty at 50oC Tcase

Constant current output
Compatible with Triac/ELV dimming
Universal input voltage: 90~305Vac

Safety according to UL1310 & EN61347-2-13
UL Class 2 Output

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD052-1SCF512T-1200
Output Voltage	28~42V
Output Current	1200mA
Dimming	Triac/ELV
Output Power	52W
Max. Current Ripple	±30%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.72A
Max. Input Power	65W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.75 @ 277Vac & 80~100% load
Efficiency	84%
Max. Open Circuit Voltage	60V
THD	<20% @ 120Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp
Working Temperature	-20~+60oC
Max. Case Temperature	90oC
Surge Protection	1kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	95x70x32 mm (3.74x2.76x1.26 inch)
Mounting Length	85 mm (3.35 inch)
Overall Length	95 mm (3.74 inch)
Weight	0.34 kg (0.75 lb)
Life Time	100,000 hours @ full load, 65oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

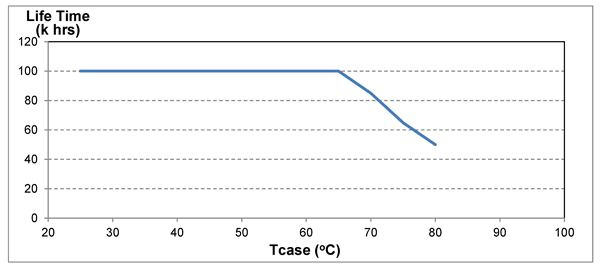

Life Time vs. Case Temperature

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
