| Prod Model: |
ZBHG-s-2.2kW |
| Adaptive Motor: |
Squirrel-Cage Three-Phase Asynchronous Motor |
| Request: |
Custom-Made |
| Power: |
2.2kw |
| Voltage: |
380V/440V |
| Input Frequency: |
50/60Hz |
| Starting Times: |
It Is Recommended Not to Exceed 20 Times Per Hour. |
| Start Mode 1: |
Current-Limiting Start; 2) Voltage Ramp Start; |
| Start Mode 2: |
1) Soft Stop; 2) Free Stop. |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Shell Material: |
Ggd |
| Brand: |
Chziri |
Product Description

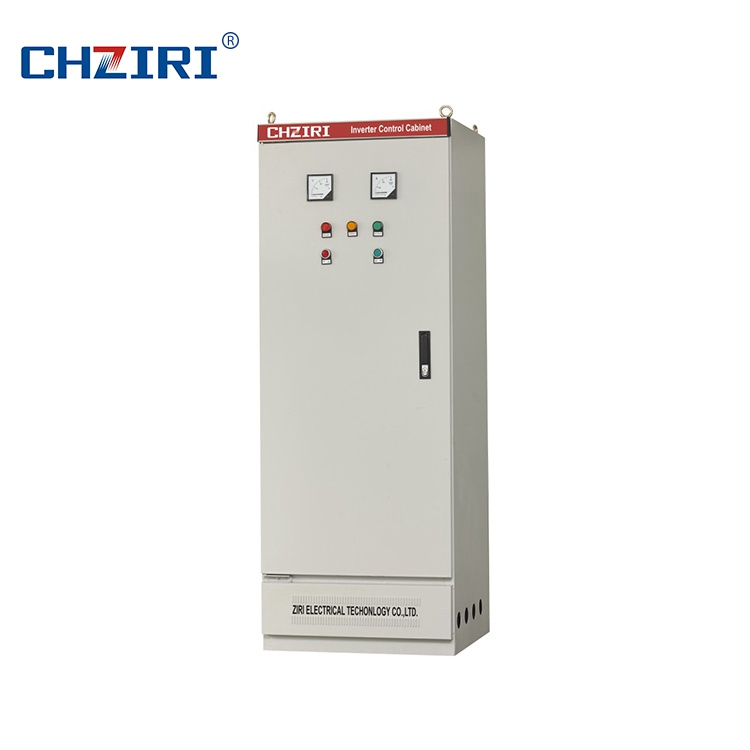

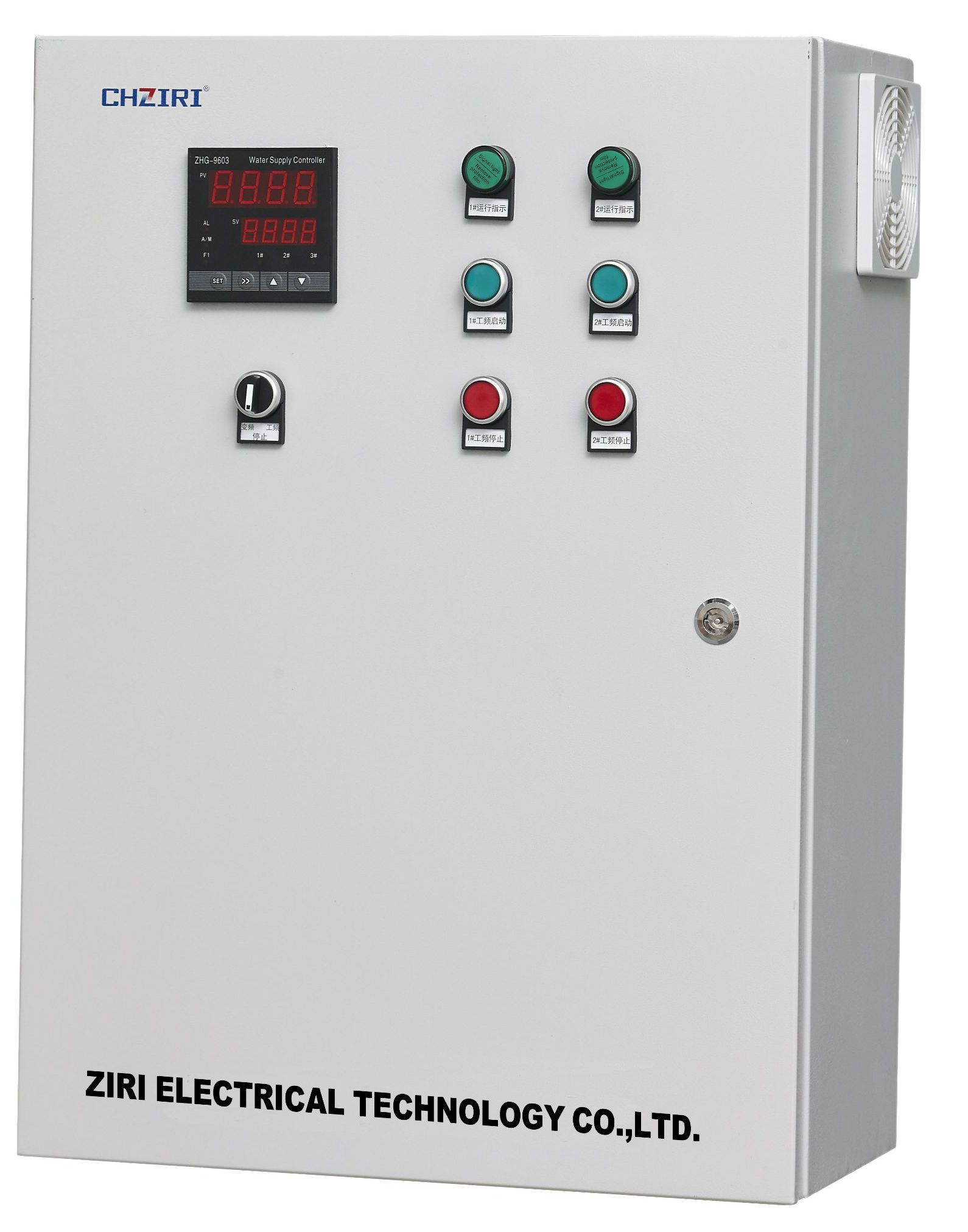

Constant pressure water supply control panel
Main Feature
ZBHG series variable constant pressure water supply control cabinet is the company development of a new generation of energy-saving water supply products.
Its core is the AC frequency inverter technology and the microcomputer control technology. Use closed-loop control system. The control panel can automatically adjust the pump speed and the number of units running, so that the pressure of the water supply network to maintain the required pressure and flow, so as to improve the quality of water supply and high efficient energy saving purposes. The control cabinet can replace the high water-level tank, water tower and other facilities and valve adjustment and other measures . to improve the automation of water supply and drinking water quality, to prevent secondary pollution, is an ideal modern water supply products.
Application Range :
Urban and rural residential area, high-rise buildings water supply, hotels, restaurants and large-sized structures' water supply and fire fighting water;
City central heating water supply and air-conditioning system of hot and cold water circulation system;
Water pumping stations, pipeline system;
Industrial production and water recycling water of industrial boiler water supply system;
sewage treatment system;
old water supply (pressure water tower high water-level and water tank supply) transformation;
Agricultural irrigation, sprinkler irrigation and music fountain.
Product Characteristics: 3 units main pumps + one unit small pump, Multi-speed control mode can be selected .
- Flexible increase ,decrease pump control logic.
- Flexible sleep pump control function;
- Regular rotation control, can effectively prevent the rust of the pump;
- Up to 8 periods of pressure control, and each period
- can be set to any arbitrary pressure setting control and realize time switch function;
- Pipe network pressure monitoring, alarm; pump grounding, loss phase and so on perfect protection.

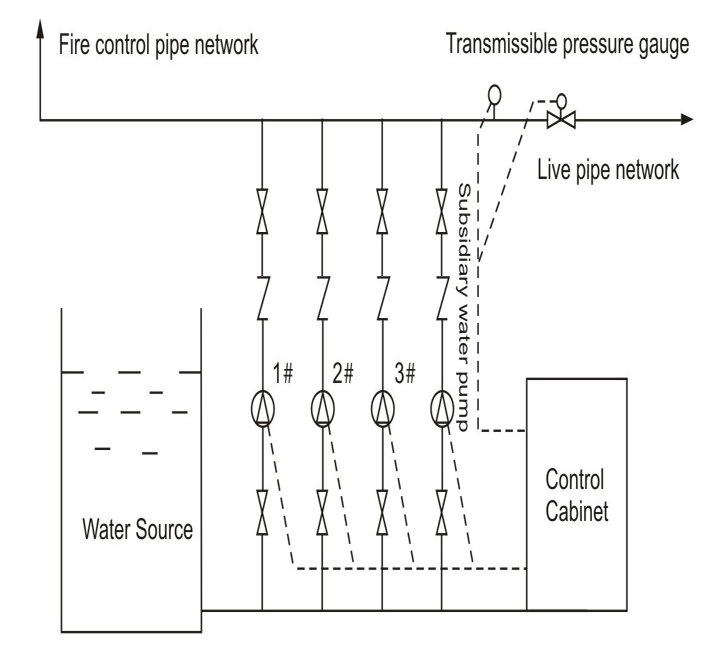

Constant Pressure Water supplu principle
