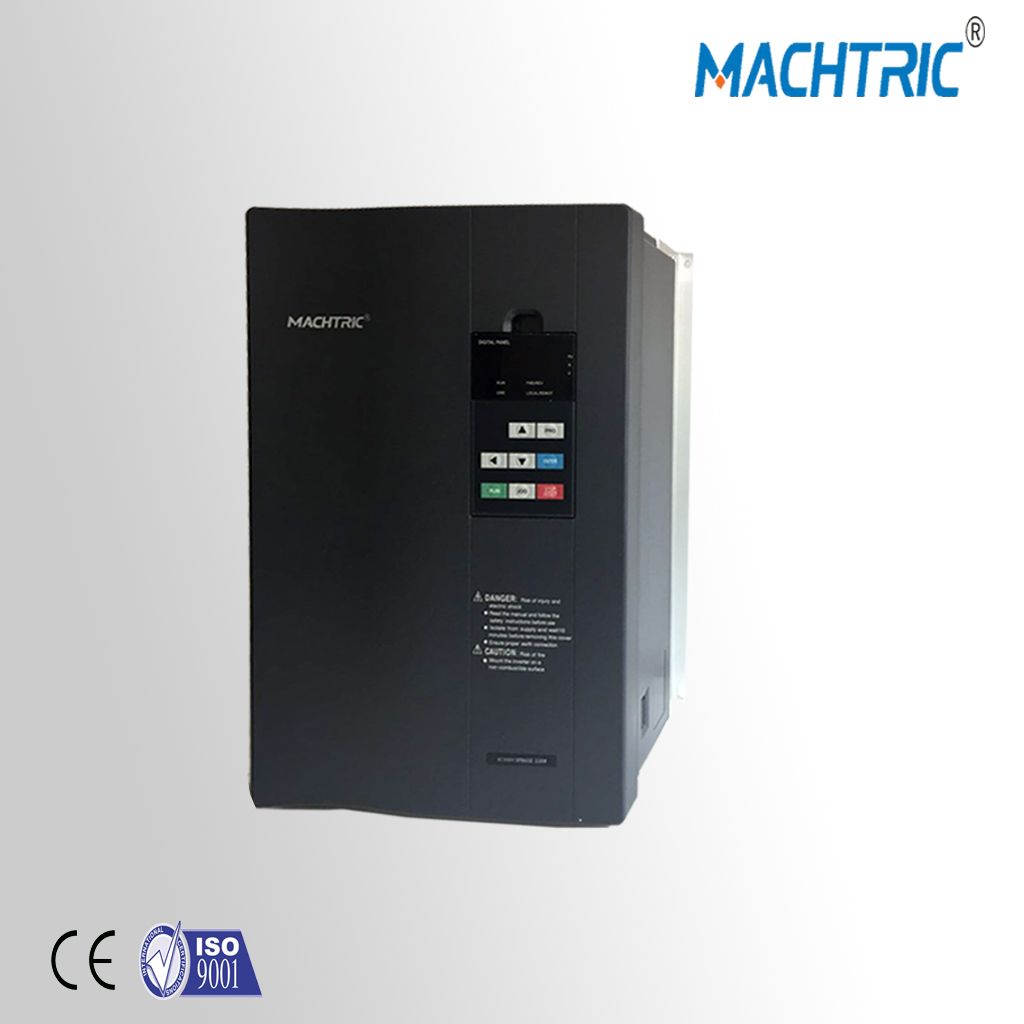

Constant Pressure Water Supply Used Variable Frequency Inverter
| Price: |
US $ 111/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
S2100E |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Rate: |
5.5kw-280kw |
| Voltage: |
220V; 380V |
| Phase: |
1/3 Phase |
| Applicable: |
Water Pump |
| Communicate: |
RS485 |
| Output Phase: |
1/3 Phase |
| Built In.: |
Pid |
| Working Environment: |
-20 - 60 Degree |
| Application .: |
Elevator |
| Color: |
Black |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
AC-DC-AC |
| Brand: |
Machtric |
Product Description
Constant Pressure Water Supply used variable frequency inverter
Products advantage:
- Certification: ISO9001 & CE
- Reasonable price
- Received the National Invention Award
Company advantage:
- 20 years experience
- 70-80 professional R&D team
- ISO14001, OHSAS18000
- Delivery: 3-7 days after receive payment.
Our service:
1. Reply inquiry within 24 hours from Monday to Friday
2. OEM service accept
3. Charge Sample test
Items |
S2100 E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
| Voltage Range | 380V:330V~440V; 220V:170V~240V |
| Output | Voltage Range | 380V:0~380V; 220V:0~220V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional Input
Terminal | Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration time Setting | 0~-6000s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;z
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Eight multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection
Warning Function | Overload | 150%,60 second(Constant torque);120%.60 second (variable torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Below 90KW:Wall Mounted;
110~200KW:Wall Mounted or in Cabinet;
Above 220KW:in Cabinet |
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
