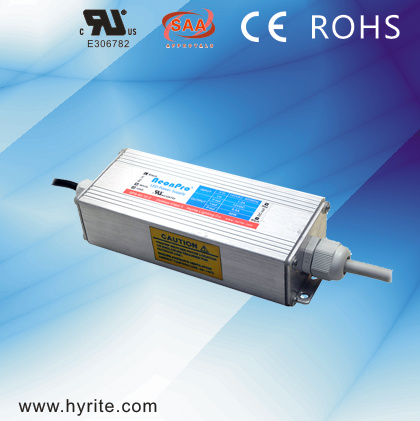

Constant Voltage 12V 60W Waterproof LED Driver with UL

Name: Constant Voltage 12V 60W Waterproof LED Driver with UL
Brand: all-electronics-online.com
SKU: 772431185
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 14.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPS-60-12-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	LED Driver with UL Certification
Power:	60W
Input Voltage:	120V
Input Current:	1.2A Max
Output Voltage:	12V
Certificates/Standards:	UL
Working Temperature:	-40'c~50'c
Installation:	Outdoor Rainproof IP64
Cooling:	Free Air Convection
Power Factor:	0.65
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	120V
Brand:	Neopro

Product Description

12V 60W IP64 Class 2 Constant Voltage LED Driver with UL Certification

1.Feature of 12V led driver with UL certification :

AC to DC Single Output Switching Power Supply
Self-contained slim design, wiring connection inside
UL recognized outdoor class 1
Rainproof :IP64

2.Application of 12V led driver with UL certification :

LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

3.Specification of 12V led driver with UL certification :

Model no.	SPS-60-12-C
Input voltage	120 ±10%VAC 60 Hz
Max.Power	60 W max
Output type	Constant voltage
Output voltage	12VDC ± 5%
Output current	5A max
Installation	Outdoor rainproof
IP rating	IP 64
Dimming	No
Built-in active PFC	No
Power factor	>0.65
Overload protection	105%-120% hiccup mode, auto-recovery
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40'C
Cooling	Free air convection
Certificates/standards	UL
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Weight(kg)	0.8400

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
