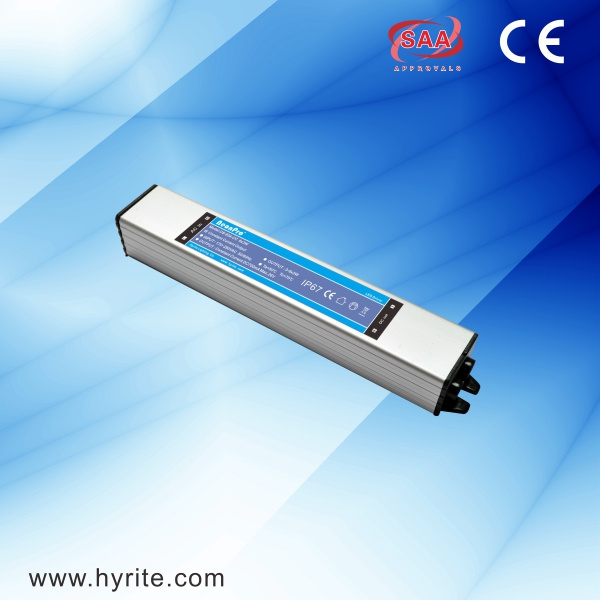

Constant Voltage 18W 12V IP67 Stable Quality Waterproof Isolated LED Driver

Name: Constant Voltage 18W 12V IP67 Stable Quality Waterproof Isolated LED Driver
Brand: all-electronics-online.com
SKU: 757727325
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	US $ 4.54-4.78/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-634-CV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	18W
Output:	Constant Current
Input Voltage:	100-260V
IP Rating:	IP67 Waterproof
Warranty:	2 Years Warranty
Application:	Spot Light, Down Light, Panel Light
Size:	1302521mm
Case:	Aluminum
Efficiency:	85%
Certificates/Standards:	Ce, RoHS
Usage:	Construction, Building
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Ce, RoHS, EMC Test
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

Constant Voltage 18W 12V IP67 Stable Quality Waterproof Isolated LED Driver

Features for Waterproof Isolated LED Driver:
*Constant voltage/ current output.
*Aluminum case, IP67
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*CE approval.

Advantage for Waterproof Isolated LED Driver:
-Build-in thermal protection, short circuit protection
-Input 100V-260VAC(50/60Hz)
-Operating temperature:Max.50ºC
-Operating surface temperature:Max.70ºC

Applications for Waterproof Isolated LED Driver:
Designed for spot light, down light, wash light, panel light or other signage, decoration lighting.

Remarks for Waterproof Isolated LED Driver:
*Trade Terms: EXW, FOB, CIF and CNF term available
*Lead time: 15 days after order confirmation
*Payment terms: L/C, T/T, Western Union
*MOQ: 1 pc

Shipping for Waterproof Isolated LED Driver:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification for Waterproof Isolated LED Driver:

Model No.	OS-634-CV
Input voltage	100-260 VAC 50/60 Hz
Max. power	20W max
Output type	Constant voltage
Efficiency	85%
Output	12V
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Waterproof
IP rating	IP67
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(LWH)	1302521mm
Packing information	100pcs/ctn, G.W: 5KG

More information for Waterproof Isolated LED Driver (700mA constant current):

Model no.	OS-634-CC-700
Model series	OS
Input voltage	100-260 VAC/170-260 VAC 50/60 Hz
Power	18 W max
Output type	Constant current
Output voltage	Max.26 V DC
Output current	700mA
Typical LED loading	3~6*3 W
Operating temperature	-25~50ºC
Installation	Indoor
Cooling	Free air convection
Connection input/output	Input:0.5mm²x2(15cm) Output:0.5mm²x2(15cm)
Dimensions(LWH)	1302521 mm
Weight(kg)	0.1000
