Constant Voltage 300W 24VDC Indoor PWM LED Driver

Name: Constant Voltage 300W 24VDC Indoor PWM LED Driver
Brand: all-electronics-online.com
SKU: 748246045
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 16.92/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E300B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	25A
Max. Power:	300 W Max
Power Factor:	Low
Installation:	Indoor
IP Rating:	IP 20
Cooling:	Free Air Convection
Connection Input/Output:	Terminal
Dimensions(LWH):	21511550 mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

Constant Voltage 300W 24VDC Indoor PWM LED Driver

Brief Introduction for PWM LED Driver:
-Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
-Constant voltage output
-Mesh case (or electric fan) for ventilation
-100% burn-in test

Technical Specification for PWM LED Driver:

Model no.	ELDV-12E300B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	300 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	25A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	21511550 mm
Weight(kg)	1.1000
Packing information	30 Pcs/ Carton, G.W 31 KG

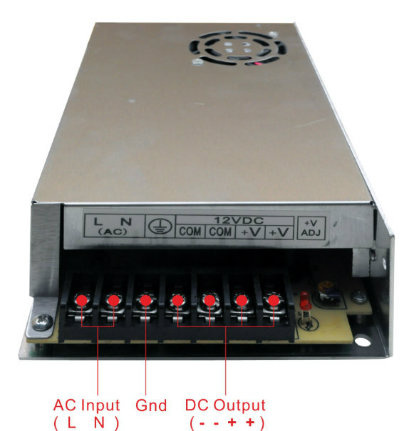

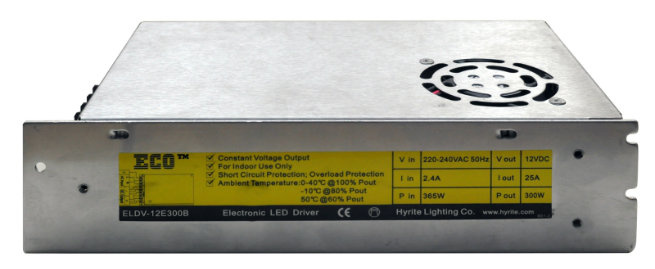

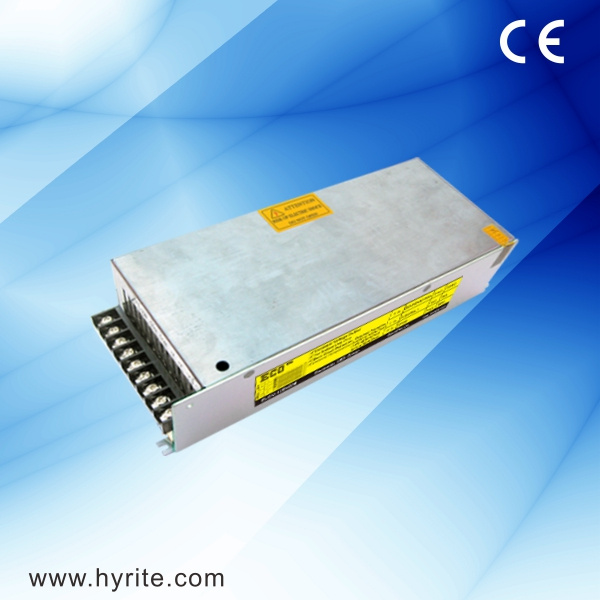

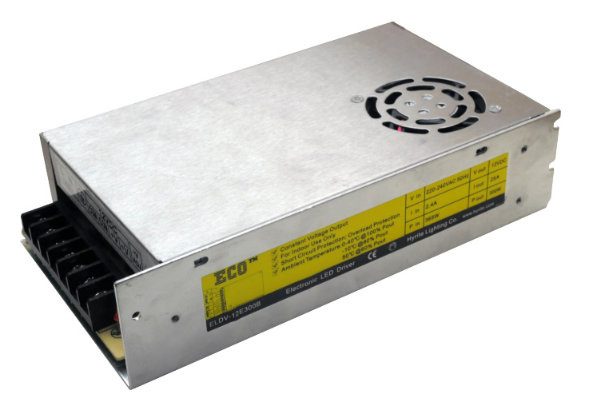

Some pictures for PWM LED Driver:

About our factory:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
