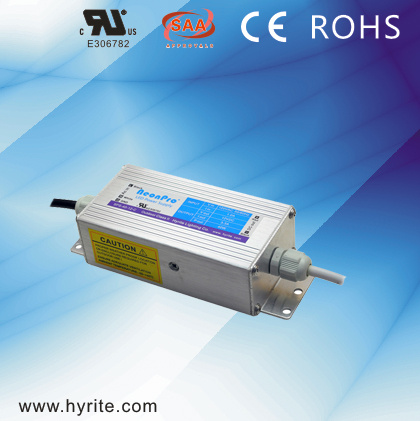

Constant Voltage LED Transformer for Module Strip with UL

Name: Constant Voltage LED Transformer for Module Strip with UL
Brand: all-electronics-online.com
SKU: 772443565
Availability: InStock
Rating: 4.7 (142 reviews)

Price:	US $ 12.83/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPS-40-12-C
Markets:	North America,South America
Item:	40W LED Transformer with UL
Input Voltage:	120V
Input Current:	1.0A
Output Voltage:	12V
Power:	40W
Dimming:	No
Power Factor:	>0.65
Efficiency:	80%
IP Rating:	IP 64
Weight(Kg):	0.3
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	120V
Brand:	Neonpro

Product Description

40W led transformer with UL certification

1.Feature of 40W led transformer with UL certification :
AC to DC Single Output Switching Power Supply
Self-contained slim design, wiring connection inside
UL recognized outdoor class 1
Rainproof :IP64

2.Application of 40W led transformer with UL certification
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

3.Specification of 40W led transformer with UL certification

Model no.	SPS-40-12-C
Input voltage	120 ±10%VAC 60 Hz
Max.Power	40 W max
Output type	Constant voltage
Output voltage	12VDC ± 5%
Output current	3.3A max
Installation	Outdoor rainproof
IP rating	IP 64
Dimming	No
Built-in active PFC	No
Power factor	>0.65
Overload protection	105%-120% hiccup mode, auto-recovery
Over current protection	>9.8A
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40'C
Cooling	Free air convection
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Weight(kg)	0.3kg
Certificates/standards	UL

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
