| Prod Model: |
LRS-200-24 |
| Warranty: |
3 Years |
| Weight: |
0.35kgs |
| DC Output: |
DC12V, DC24V, DC5V, DC36V |
| AC Input: |
90-265V |
| Wattage: |
350W |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Meanwell |
Product Description

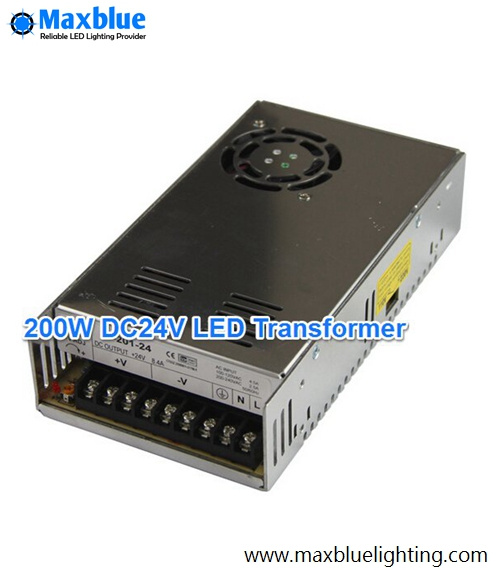

Constant Voltage Switching Power Supply with CE RoHS UL for LED Strip Lighting
Features:
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage /Over temperature
Compliance to IEC/EN 60335-1(PD3) and EC/EN61558-1, -2-16 for household appliance
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
High operating temperature up to 70°C
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
3 years warranty
Application:
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Description:
LRS-350 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 85VAC-264VAC (select by switch), the entire series provides an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, with the built-in long life fan LRS-100 can work under -25~+70 with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN60950-1,
EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.
| Part No. | LRS-200-5/12/24/36 |
| wattage | 200W |
| voltage | 5V, 12V, 24V, 36V |
| warranty | 3 years |
