Constant Voltage Waterproof LED Driver for Light Bar with Ce

Name: Constant Voltage Waterproof LED Driver for Light Bar with Ce
Brand: all-electronics-online.com
SKU: 780826215
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 16.47-17.71/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	170-250 VAC 50/60 Hz
Max. Power:	100W
Efficiency:	86%
Output Current:	8.3A
Output Voltage:	12VDC ± 5%
Overload Protection:	105%-120% Hiccup Mode, Auto-Recovery
Over Voltage Protection:	120% Rated Output Voltage
Operating Temperature:	-25~40 Degree Centigrade
Withstand Voltage:	I/P~O/P:1.5kvac, 1 Minute
IP Rating:	IP 67
Usage:	Commerical Lighting
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

12V 100W LED Power Supply for Strips with CE RoHS

Brief Introduction
-External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
-Seamless aluminum case, fully sealed & waterproof, IP67
-Constant voltage output
-100% burn-in test

Technical Specs

Model no.	LPS-12E100
Input voltage	170-250 VAC 50/60 Hz
Max. power	100 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	8.3 A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40'C
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

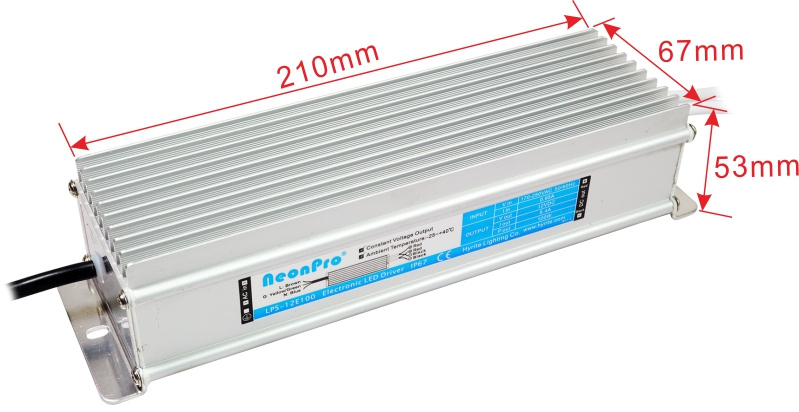

Dimensions(LWH)	2436750 mm
Weight(kg)	1.1500
Packing information	10 Pcs/ Carton, G.W 12.3KG

Detailed Pictures

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
