Constant Voltager Waterproof LED Power Supply with SAA

Name: Constant Voltager Waterproof LED Power Supply with SAA
Brand: all-electronics-online.com
SKU: 780842485
Availability: InStock
Rating: 4.8 (68 reviews)

Price:	US $ 25.56-28.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E200
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	200W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	80 %
IP Rating:	IP67
Dimensions(LWH):	23313968 mm
Weight(Kg):	3.08

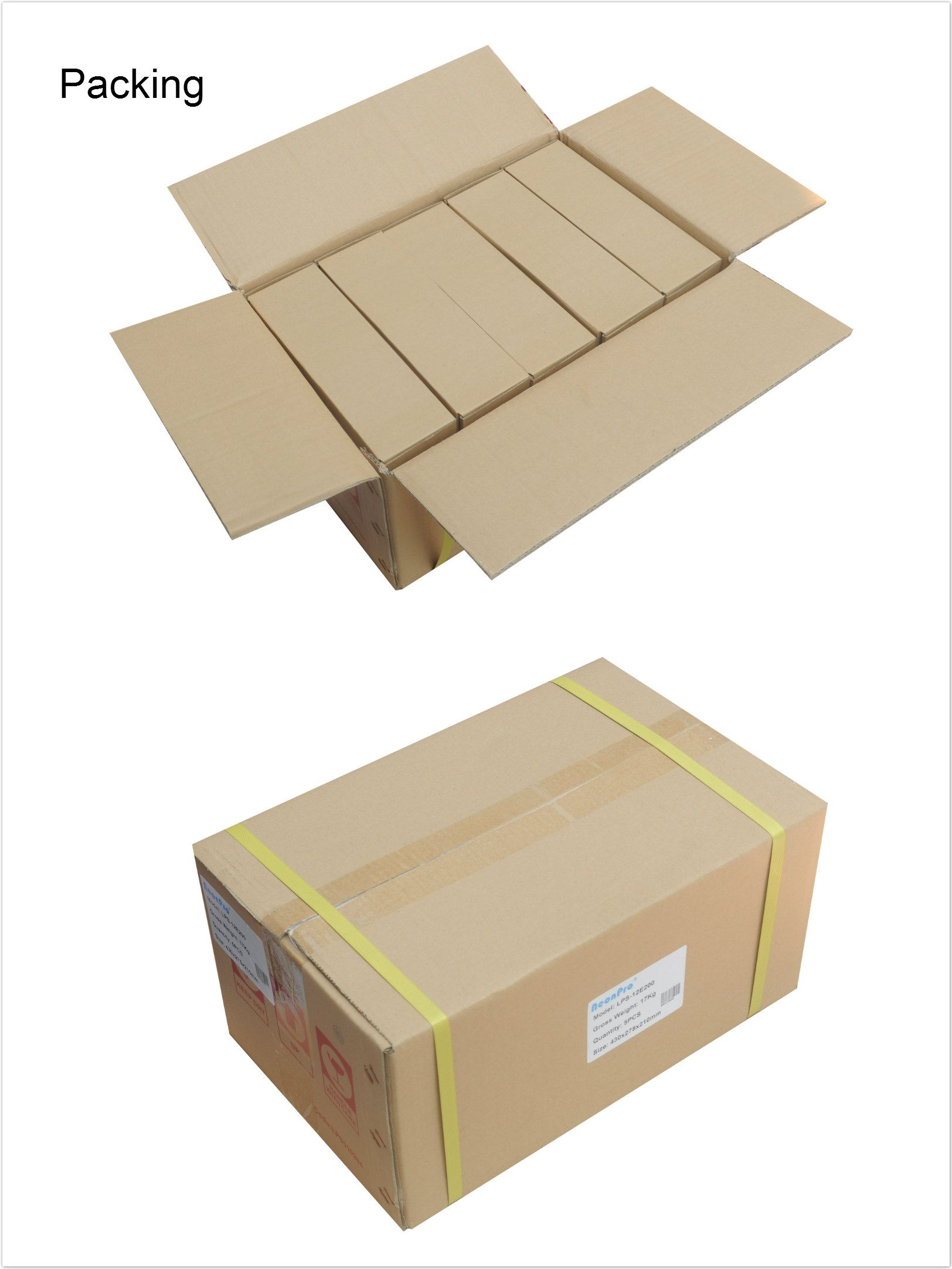

Packing Information:	5 PCS/ Carton, G.W 17 Kg
Operating Temperature:	-25~40 Oc
Usage:	Construction
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Saso SAA
Power Supply Voltage:	AC170-250
Brand:	Neonpro

Product Description

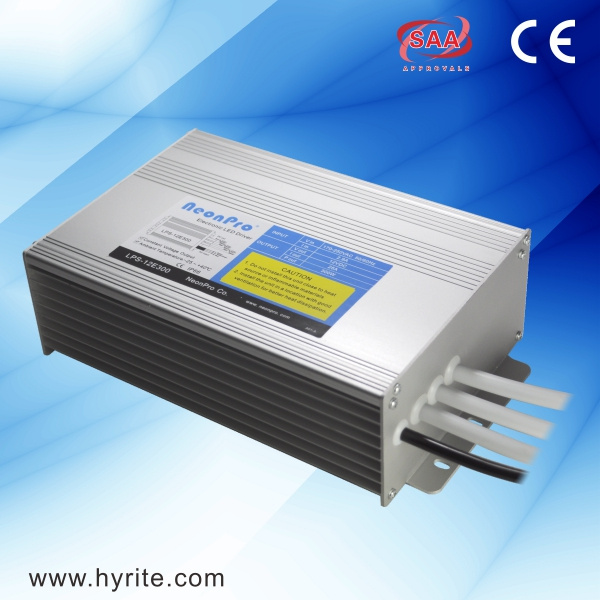

IP67 constant voltage LED Transformer for Signs with CE SAA Saso

Brief Introduction
*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test

Our main products include:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

Technical Specification

Model no.	LPS-12E200
Input voltage	170-250 VAC 50/60 Hz
Max. power	200W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	80 %
Output voltage	12VDC ± 5%
Output current	16.7 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE,SAA,SASO
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm)

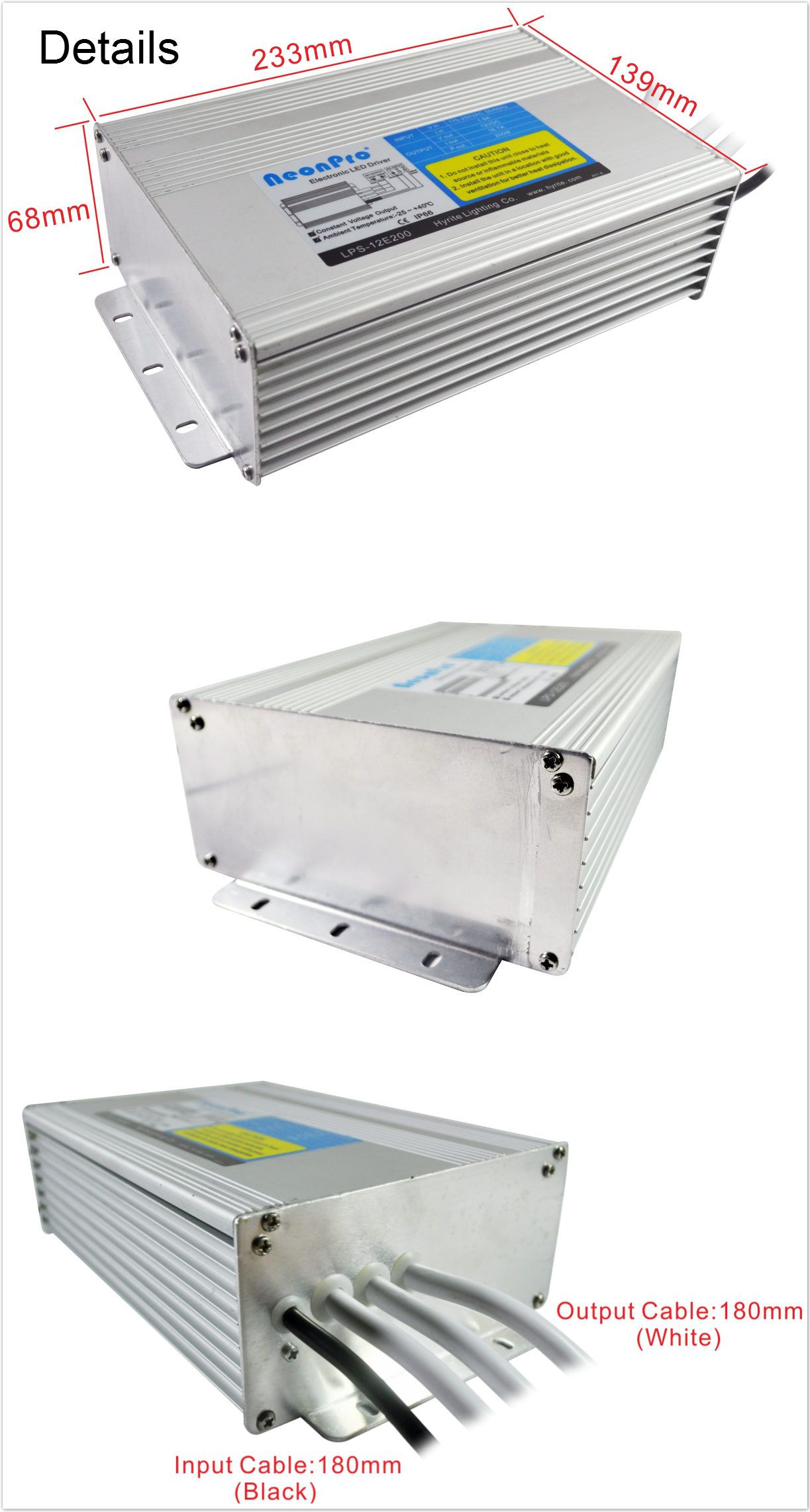

Dimensions(LWH)	23313968 mm
Weight(kg)	3.08
Packing information	5 Pcs/ Carton, G.W 17 KG

Product Details

Welcome to our factory!
45 minns away from Guangzhou International Baiyun Airport.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
