Construction Equipment Overhead Bridge Crane Radio Remote Control

Prod Model:	F24-10D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Crane Radio Remote Control
Control Disatance:	up to 100m
Control Points:	16
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Operation Frequency:	310-330MHz & 433MHz
Certificates:	Ce, FCC, ISO9001:2008
Unique Code:	Over 4.3 Billon Unique ID Codes
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	3V
Material:	Plastic
Battery Type:	AA Battery

Product Description

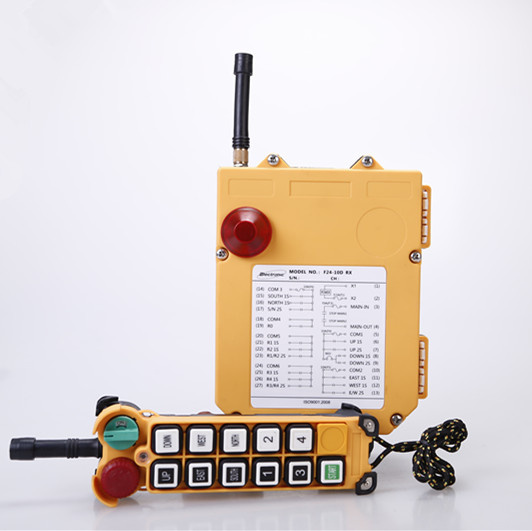

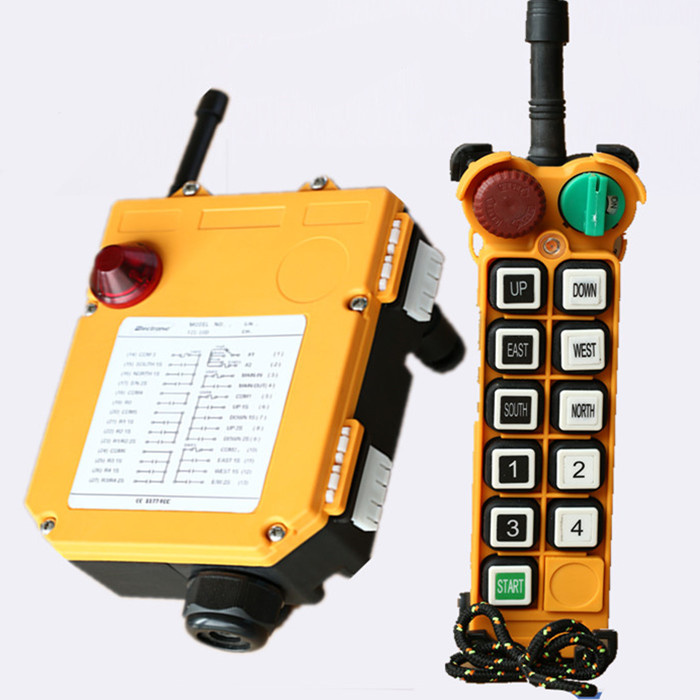

F24-10D Construction Equipment Overhead Bridge Crane Radio Remote Control

Brife interduction:
 1.More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.

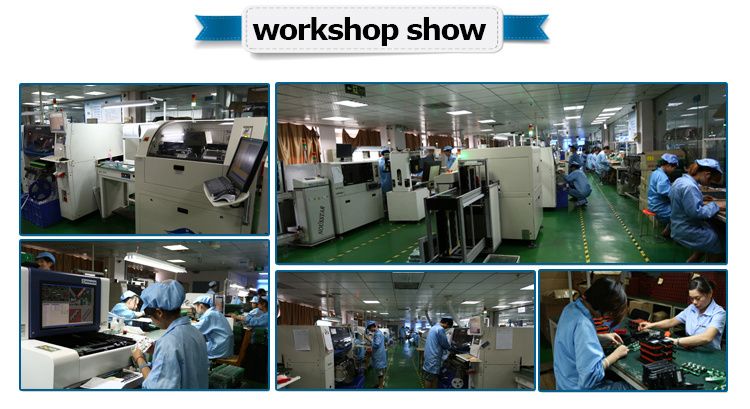

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT
 machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty


Specification


Application	Overhead cranes, hoist ,chain hoist and other industrial machine
Frequency	310.0325~331.165Mhz & 433Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	10 Double speed push button+1 start+1 stop
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Material	glass fiber


 Standard configuration:
  One transmitter ;
  One receiver;
  One 1m cable connect with receiver
  One operation and maintain manual .

 Products Application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system,
 data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry,
steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites
which can be worked by radio controls.


 Notes:
The LED on the front of the transmitter indicates the condition of the batteries.  It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.  If the LED is flashing red, or if the operation becomes erratic,
or will only work from a short distance, replace both batteries with new AA alkaline batteries.
