| Prod Model: |
11kw/15KW/18KW |
| Power: |
220V;440V |
| Delivery: |
Around15 Days |
| Size: |
3*16+2*10 and More |
| Color: |
Black |
| Type: |
Ygt;Yc |
| Function: |
Construction Hoist, Zlp630 |
| Conductor Material: |
Copper or Aluminum |
| Place Of Origin: |
China |
| Condition: |
New |
| Package: |
Standard |
| Application: |
Car |
| Voltage: |
High Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
China Brand |
Product Description

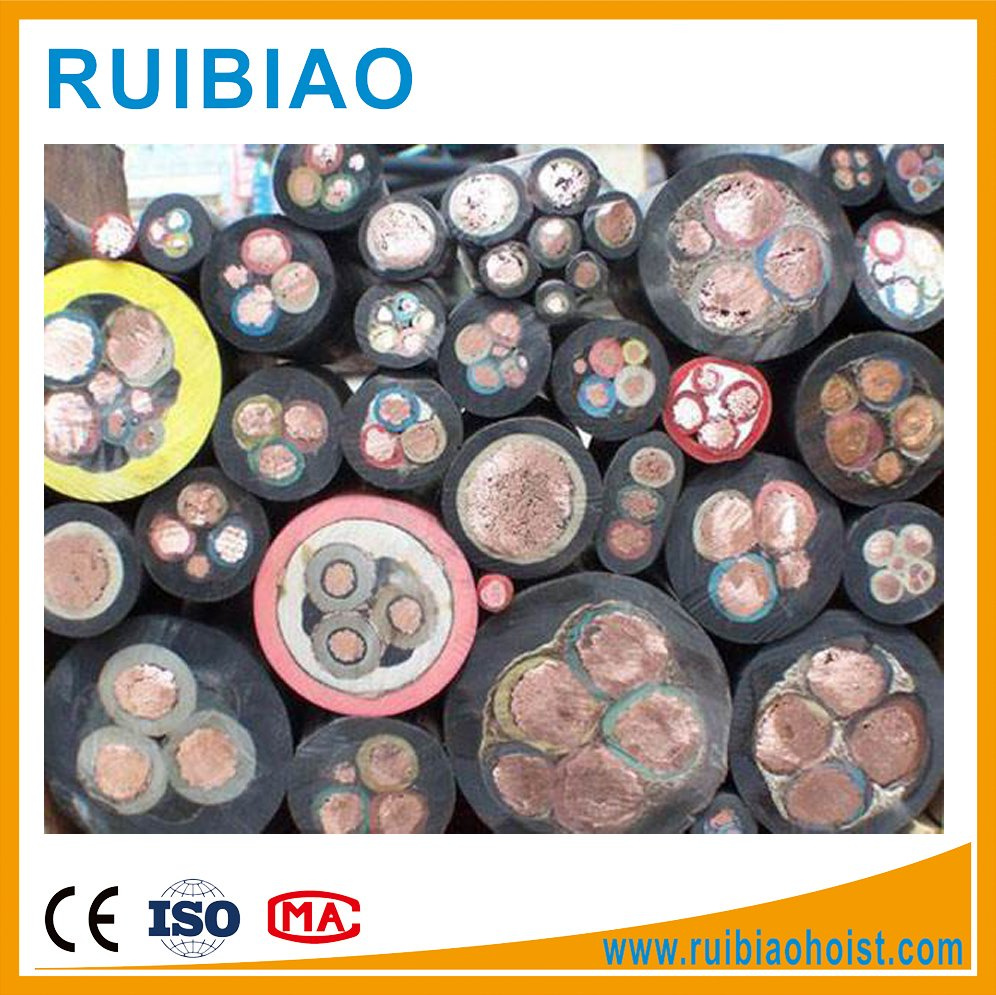

A. Description of Construction Hoist Wire Power Amplifier Subwoofer Dedicated Power CableTypically by a few or several groups of wires ( at least two per group ) formed by twisted cord-like cable , between each group of mutually insulated conductors , and often twisted around a center , the entire outside of the package has a high degree of an insulating cover layer . Electricity cable has an inner and outer insulation characteristics.
This product is a special cable construction elevator , in the same field of similar products unique. Its good bending resistance than common rubber cable 10 times , for a small space has a good adaptability, is extremely high bending ductility requirements of the preferred places . Anti-aging ability , working temperature range up to -40 ºC to + 100 ºC, can easily adapt to harsh outdoor environments. The production process , in strict accordance with the standard factory production, to ensure excellent quality of each cable .
B.Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
C.Application
It is widely used at the transformer circuit which rated voltage is 6000V or under.
D.Specification
The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DIN, and the standard required by the clients. Normal Cross Sectional Area of Conductor (mm2 ) | Normal Diameter of Strand (mm) | Normal Thickness of Insulation (mm) | Normal Thickness of Jacket (mm) | Over Diameter of Cable (mm) | Max Conductor Resistance at 20ºC ( ≤Ω/km ) |
2×0.75 | 0.20 | 0.6 | 0.8 | 4.0×6.4 | 4.4×7.2 |
2×1 | 0.20 | 0.6 | 0.9 | 4.3×6.8 | 4.7×7.6 |
2×1.5 | 0.25 | 0.8 | 1.0 | 5.2×8.4 | 5.7×9.4 |
2×2.5 | 0.25 | 0.9 | 1.1 | 6.0×9.8 | 6.5×10.8 |
2×4 | 0.30 | 1.0 | 1.2 | 7.0×11.6 | 7.6×12.8 |
2×6 | 0.30 | 1.0 | 1.3 | 7.8×13.0 | 8.4×14.2 |
3×0.75 | 0.20 | 0.6 | 0.9 | 4.2×9.0 | 4.6×9.8 |
3×1 | 0.20 | 0.6 | 0.9 | 4.3×9.3 | 4.8×10.3 |
3×1.5 | 0.25 | 0.8 | 1.0 | 5.2×11.5 | 5.8×12.7 |
3×2.5 | 0.25 | 0.9 | 1.1 | 6.0×13.6 | 6.7×15.0 |
3×4 | 0.30 | 1.0 | 1.2 | 7.0×16.0 | 7.8×17.6 |
3×6 | 0.30 | 1.0 | 1.3 | 7.8×18.0 | 8.8×20.0 |
4×0.75 | 0.20 | 0.6 | 0.9 | 4.2×11.4 | 4.7×12.4 |
C. ApplicationThis product is a special cable construction elevator , in the same field of similar products unique. Its good bending resistance than common rubber cable 10 times , for a small space has a good adaptability, is extremely high bending ductility requirements of the preferred places . Anti-aging ability , working temperature range up to -40 ºC to + 100 ºC, can easily adapt to harsh outdoor environments. The production process , in strict accordance with the standard factory production, to ensure excellent quality of each cable .

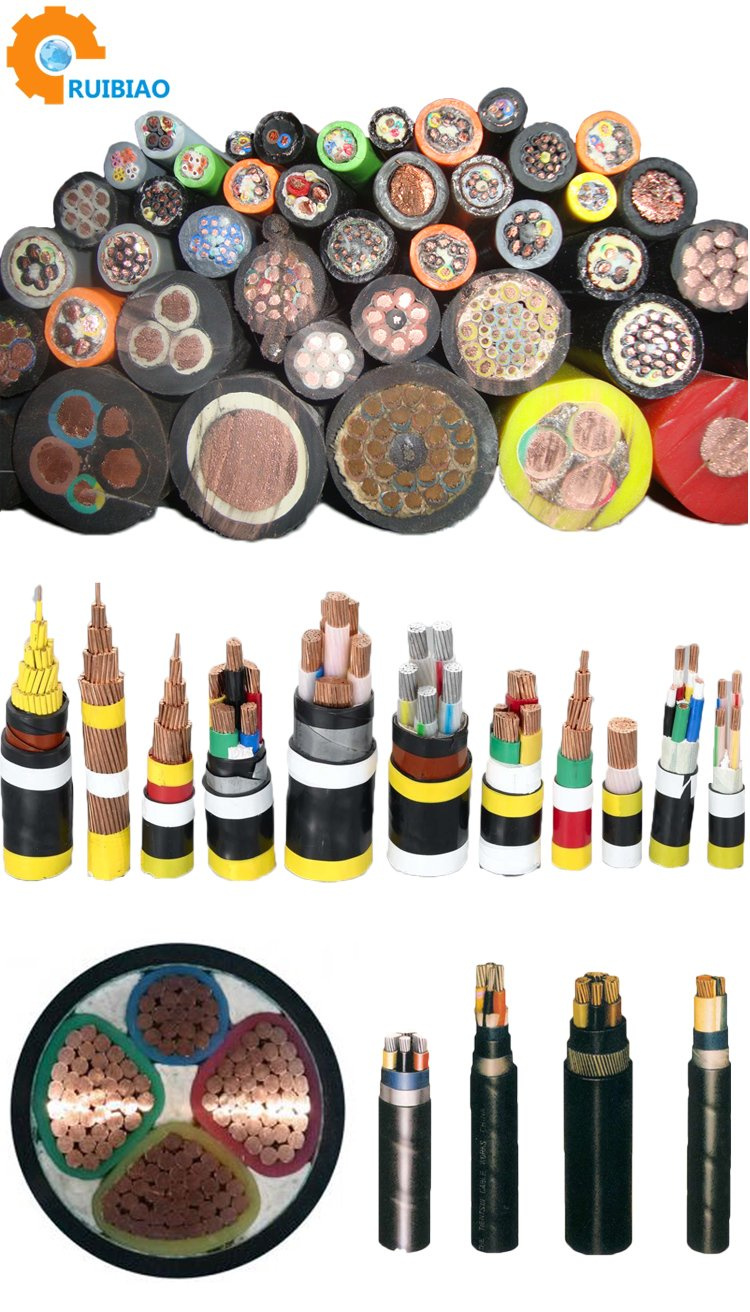

D. Pictures
Product Description
ShangHai RuiBiao Construction Machinery Co., Ltd. is a professional manufacturer, Our main products include hoist safety devices, racks and pinions, construction hoist gearbox and motor, suspended platform, wire rope hoist, electric winch, mast section, overload protector, spring, safety door, construction hoist cage, tower crane, lot of lifting machines.
Our products are mainly exported to Brazil, Vietnam,Turkey, Russia and Malaysia. We can meet our customers' needs well. We can produce products according to customers' special requirements.We sincerely hope to cooperate with you in the future.
Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.FAQ:
Q1:Whether you can provide customized products?
A1:Yes.We are hi-tech enterprise affiliated to China Academy of Building Research.We have a group of engineers, who have title of professor , senior engineer and engineer.We can give you special design as per the drawings of your building, helping you solve different problems faced in your projects.
Q2:Whether customized products takes a very long time to design and manufacture?
A2:Not exactly.Normally for us, some amendment in design to adapt your requirement will take one week.So even for your special project, it will be about 30-40 days delivery time.
Q3:What is the brand of your key components?
A3:Motor:Shanghai RUIBIAO and ABB or Schneider can also be choosed.
Other electrical components:Schneider or Simens
Q4:What kind of services you can provide?
A4:We are dealing with construction machinery for about 10 year.High quality is our advantage, and high technology is our core competency.We ensure that all the machine have been completely tested in our factory before delivery.We will give you one year warranty for complete machine.For problems caused by our production defect, we will provide you free services by sending skilled engineer there.
