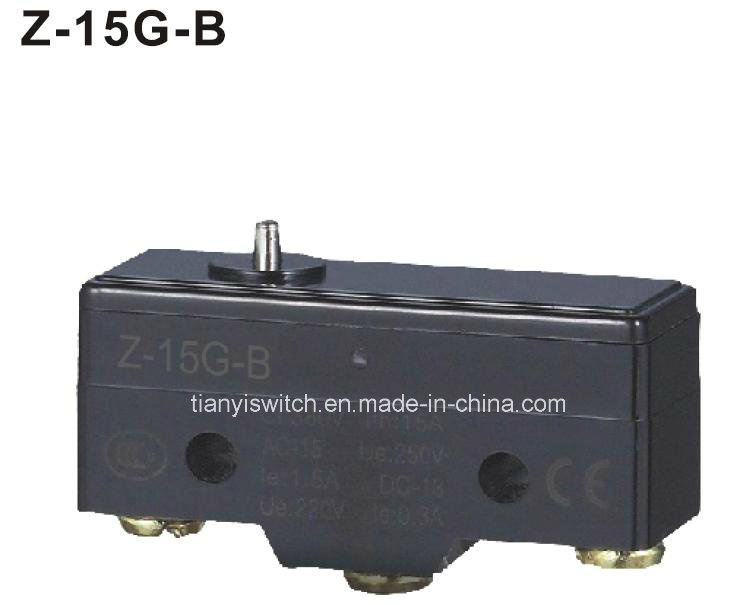

Contact Form Pushbutton Micro Switch

Prod Model:	Z-15G-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hight Accuracy:	Virous of Actuators,Action Position Is Adujustable
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Brand:	Tianyi

Product Description

Features
Virous of actuators,action position is adjustable.

High switch on and off capactiy.

High accuracy.

Wide range of operation speed.

Each type hace solder terminal,screw terminal and tab terminal are selective.

Add a for solder terminal,add C for tab terminal,black for screw  terminal.

Characteristics
Operation speed:0.01mm~1m/sec

Operating frequency:Mechanical:240 operations/min Electrcal:20 Operations/min

Contact resistance:15MΩ max.(intial value)

Insulation resistance:100MΩ min.(at 500VDC)

Dielectric strength:100VAC 50/6Hz for 1minute between terminals of the same polarity
                                  1500VAC,50/60Hz for 1 minute between current-carrying and non
                                   current-carrying metal parts.
                                   1500VAC,50/60Hz for 1minute between each terminal and ground

10-50Hz,1.5mm double amplitude

Shock:Mechanical durable:1000m/Sec2(about 100G'S)
             Malfunction:300/mSec2(about 30G'S)

Ambient temperature:General purpose type:-25~+80ºC,Sealed type:-15~80ºC

Humidity Gereral purpose type:85%RH max,Selaed type:95%RH max.

Life:Mechanical:20000000 operations/min
       Electrical:500000 operations/min

Weight:About 22 to 58g.
