| Prod Model: |

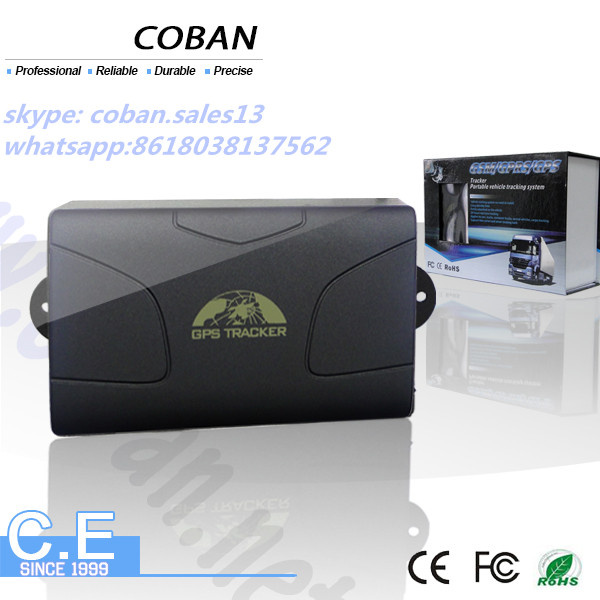

TK104 container GPS Tracking |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
6000 mAh |
| Standby Time: |
100 Days Standby Time |
| OEM Or Not: |
Yes |
| Certificate: |
Ce FCC ISO |
| Tracking System: |
Phone APP, Web Platform, SMS |
| Network: |
GSM/GPRS |
| Feature: |
Waterproof, Magnet, Long Standby Time Battery |
| Manufactuer Or Not: |
Yes |
| Type: |
GPS Tracker |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
Product Description
New GPS 104 Tracker device With 100 days standby time, SD card, USB:
A. Built-in 6000mA battery, 100days standby time
B. Two sleep modes switch, by time or by shock sensor
C. Smart track both upon time and distance interval
D. Support SD card to store information
E. Accident Alarm
F. Support USB data cable to configure parameters
GPS104 tracker Features:
1. Waterproof shell
2. Built-in large capacity 6000mA battery, long standby time of 100 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6. Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8. Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9. Have three LED indicators for identifying signals easily
10. Five authorized phone number to protect tracker information and assets
11. Real time tracking via SMS or GPRS (TCP/UDP)
12. External GPS/GSM and Built-in GSM/GPS for your choice to use
GPS104 Tracking system Functions:
Basic functions:
1. GPS+LBS positioning ways
2. Auto tracking continuously
3. Single location by calling tracker
4. Get absolute street address
5. Oil-cut and restore by sending SMS
6. Engine-cut and restore by sending SMS
7. Low power alarm
8. SOS panic alarm
9. Geo-fence alarm
10. Shock sensor alarm
11. Movement alarm
12. Overspeed alarm
13. Real time tracking by SMS or computer
14. Easy to switch between SMS and GPRS mode
15. Voice surveillance
16. Sleeping function: Can save power to extend the standby time
New Functions:
1. Built-in large capacity 6000mA battery, long standby time up to 100days
2. Two sleep modes swith:
Sleep by time: When setting this mode, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker.
Sleep by shock sensor: When setting this mode, it will enter sleep mode after detect no shock, and LED will be off.
3. Less GPRS traffic: Tracker will change to less GPRS traffic mode after parking 10 minutes, GPRS disconnect and connect again when alarm being triggered or start driving.
4. Auto track continuously, Smart track both upon time and distance interval
5. Automatic update positions of vehicle turns: To web server and form a smooth trajectory consistent with the actual road
6. GPS drift suppression to positioning/locate/track more precise
7. Support SD card to data storage/logging
8. Support Data Load to platform function
9. Forward/Transmit the third parties' message
10. Charges Inquiry, Send SMS command "balance+password+space+phone number+space+content" to tracker to check the SIM card charges
11. Set Multi-area management to make the target under your eye control easily
12. Accident alarm (Option), When tracker detects accident occurred (severe impact), it will send " Accident! +latitude&longitude" to all authorized phone numbers.
13. Cut off the Oil and Power System/Stop vehicle engine or restart vehicle when the speed is less than 20km/h. (Stop vehicle engine upon car speed 20km/h)
14. TCP/UDP switch GPRS mode
15. Come with USB to Configure parameters
GPS104 positioning system Package content:
Tracker device;
AC Adapter;
Lighter car adapter;
GPS Antenna;
GSM Antenna;
Harness;
12V/24V Relay;
Waterproof bag;
Software CD;
English User manual.
GPS104 tracker optional accessories:
SD card 2GB;
USB cable;
Our advantage:
1. We are the manufacturer/factory that developing and producing GPS trackers
2. Lowest factory price with high quality
3. Product warranty time: 1 year
4. Support our Free PC tracking software and Web server software.
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
