| Prod Model: |
ICW360 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
Product Description
Features of ice water system
Cost saving technology for clientsWith rich experience in developing and researching products during the passed tens of year, nowadays, SNOWKEY products are all made of reliable material with advanced design idea, which greatly improves the equipment performance. Above all,all these equipments can reduce operation cost for our clients.
Simple to maintain design
Simple to maintain design guarantees that even the largest refrigeration equipment can be swiftly and easily maintained by only one person with standard tools, which reduces downtime and enhances safety of the equipments. Thus, longer lifetime of the equipments is guaranteed as well.
Overall proposal
We can make the right proposal according to the client's specific requirement .SNOWKEY has different execution proposals of cooling products. We can provide the optimal design according to client's requirement.
Conform to the PED standard
In terms of mechanical characters and materials specification, all ice -making and water- cooling products of SNOWKEY conform to the Europe pressure vessel directive (PED) standard. Moreover, our company also can provide the products for the clients according to other related standard and different national standard;
Backwater cooling
Containerized ice water system is equiped with a backwater re-cooling system. When the water in the cold water tank has not been used for a long time, the water temperature will rise up to a certain temperature (can be set). And then the re-cooling system will start automatically to cool down the water temperature inside the cold water tank..
Containerized assembly

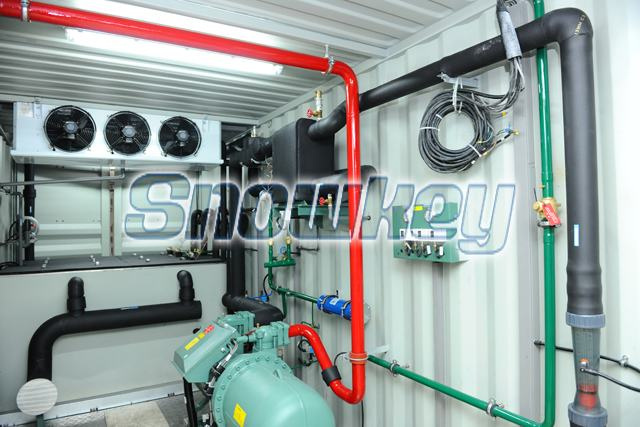

The water chilling system is installed in a new 20/40 feet container. This container is painted white both inside and outside for screening sun. Inside, there are necessary illumination and air conditioning devices installed and aluminum plates floored on the bottom. Assembly, pipeline installation, wiring and pressure test of the water chilling equipment are all finished prior to delivery out of factory.
ICW standard configuration
1. Outside is standard white 20/40 feet new container;inside is decorated with air conditioner, illumination and aluminum alloy floor;

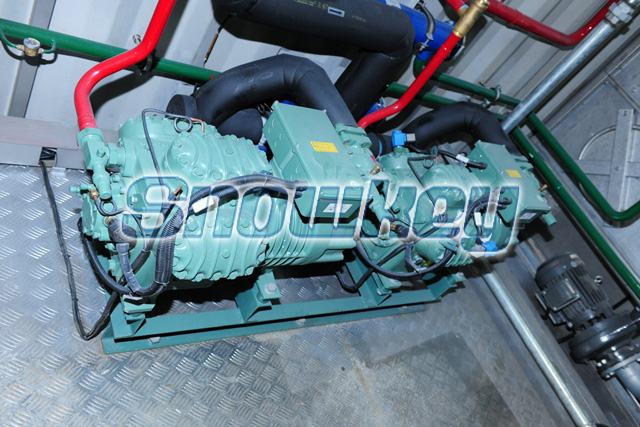

2. Refrigerating compressor unit is semi-hermetic screw or piston compressor;
3. Evaporative condenser with double speed fan;
4. The 1st and 2nd stage is highly effective stainless steel plate heat exchanger or shell and tube evaporator;
5. The 3rd stage is stainless steel immersion plate heat exchanger with air pump;
6. Necessary refrigeration system control, protect components and refrigeration pipeline connection;
7. Valves and subcooling backwater pump of water line system inside with flow indication and low water flow alarm
indication;
8. Electrical control components and electric box with operator interface for displaying the five stage water temperature;
9. Raw water tank and cold water tank level display are optional.
Design condition
Max. temperature : 60°C
Wet-bulb temperature: 30°C
Water-in temperature : 46°C
Water-out temperature: 0.5°C .
Power supply: 3P/380V/50Hz
Running time: 24hours
Refrigerant: R22\R404A\R717
FUJIAN SNOWMAN Co., Ltd. (Originally: Changle City Snowman Refrigeration Equipment Co., Ltd. ) is founded in March, 2000, with registration capital 160 million in RMB. As a new and high technology enterprise, SNOWMAN commits itself to researching, designing, manufacturing, distributing, installing, and after sales service of industrial and civil refrigeration equip -ment and complete refrigeration system. Further, SNOWMAN is the work unit for Working Group 1 on Ice Machine of National Technical Committee 238 on Refrigeration, Air-Conditioning Equipment of Standardization Administration of China and the compiling unit for ice machine standard of National Technical Committee on Refrigeration Standardization.
Headquartered in Fujian Fuzhou Binhai Industrial District, SNOWMAN has two Industrial Parks: Binhai Industrial Park and Liren Industrial Park. Wherein, the 1st phase of Binhai Industrial Park covers more than 80 acres, while the Liren Industrial Park being established, covers more than 156 acres. The 3rd phase, Guhuai Industrial Park, being prepared, would cover more than 3000 acres. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America and Africa, etc.
SNOWMAN attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many domestic famous colleges and universities. We have achieved several national patents and own experimental platform nationally recognized for compressor condensing unit and get the pressure vessel manufacture license. SNOWMAN products have passed ISO9001, ISO14000, OHSAS18000 and CE certificate.
After more than 10 years of development, SNOWMAN has become the largest professional manufacturer of ice making system and successfully organize an excellent contingent of research and manufacture. By sustaining technique and management innovation, SNOWMAN continually breaches and improves the frontier problems to pursue product leadership and practicability. Most advanced design and manufacture technique are applied to refrigerating equipments and system, for developing energy saving and environment friendly products ceaselessly.
