| Prod Model: |
GN-135 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
15kw |
| Temperature Control: |
+-1c |
| Coating Speed: |
0.5m/Min |
| Supply 1: |
Lithium Ion Battery Materials |
| Supply 2: |
Lithium Ion Battery Machine |
| Supply 3: |
Thermal Battery Materials |
| Product Name: |
Continuous Coating Machine for Lithium Ion Batter |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Type: |
Battery Electrode Coating Machine |
Product Description
Welcom to contact us any time:

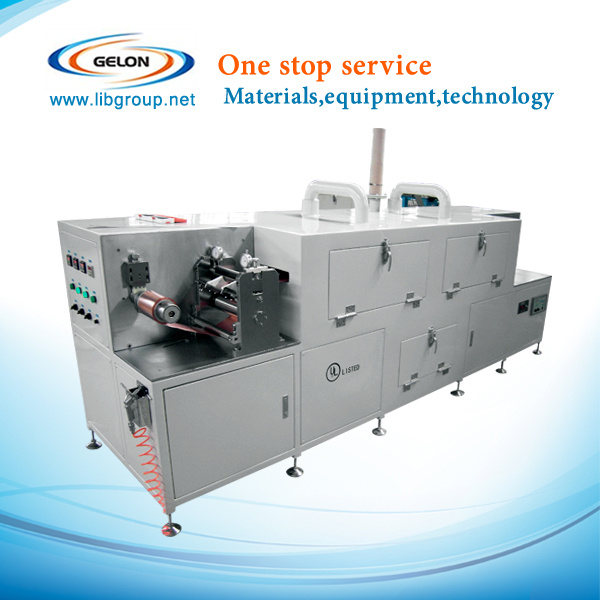

Mobile:+86 13255390189 Continuous Coating Machine for Lithium Ion Battery This equipment is mainly used for lithium battery pole piece in the production
Process slurry drying process, is mainly used in the experiments, using this technology
Can replace the original production of hand-scraped pulp, oven drying operations, and
Improve the uniformity and scrape pulp drying efficiency is indispensable equipment
For mass production.
The technical parameters
1. Coating roller: Length 360mm, Dia: 100mm
2. Drying box: Length2m*1part=2m
3. Heating method: Hot air cycle
4. Unwinding and rewinding: Manual rewinding, auto unwinding(with friction strength)
5. Mechanical speed: Max 1m/min
6. Coating speed≤ 0.5m/min
7. Temperature: Room temperature-150 adjustable
8. Heating zone: 1 zone;
9. Transversal testing precision: ± 0.003mm
10. Max Power: 15KW;
Related Products: Automatic Coating Machine
We could supply one stop solution ( turn key project) for lithium ion battery production line.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
Tks for your time,welcome to inquiry.
Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.
Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.
Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.
We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.
Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
