Contract Manufacturing Enig Fr4 Bare Board PCB
| Price: |
US $ 1.86-2.3/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Type: |
Combining Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
HB |
Product Description
Contract Manufacturing ENIG FR4 Bare Board PCB

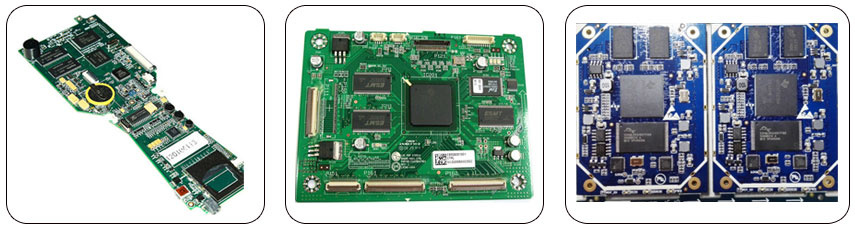

Sample Display:
Bare Board PCB Manufacturing Capabilities
Our circuit board manufacturing capabilities can meet almost 95% demand of custom requirements and actually we concentrated on this field for decades. So plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here.| Total Pad Size | Standard | Advanced |
| Capture Pad | Drill + 0.008 | Drill + 0.006 |
| Landing Pad | Drill + 0.008 | Drill + 0.006 |
| BC Mechanical Drill (Type III) | 0.008 | 0.006 |
| Laser Drill Size | 0.004-0.010 | 0.0025 |
| Material Thickness | 0.0035 | 0.0025 |
| Stacked Via | Yes | Yes |
| Type I Capabilities single & Double Deep | Yes | Yes |
| Type II Capabilities Buried Vias with Microvias | Yes | Yes |
| Type III Capabilities | Yes | Yes |
| Copper Filled Microvia | Yes | Yes |
| Smallest Copper Filled Microvia | 0.004 | 0.0025 |
| Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
| Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
| Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | c |
PCB Assembly Capabilities

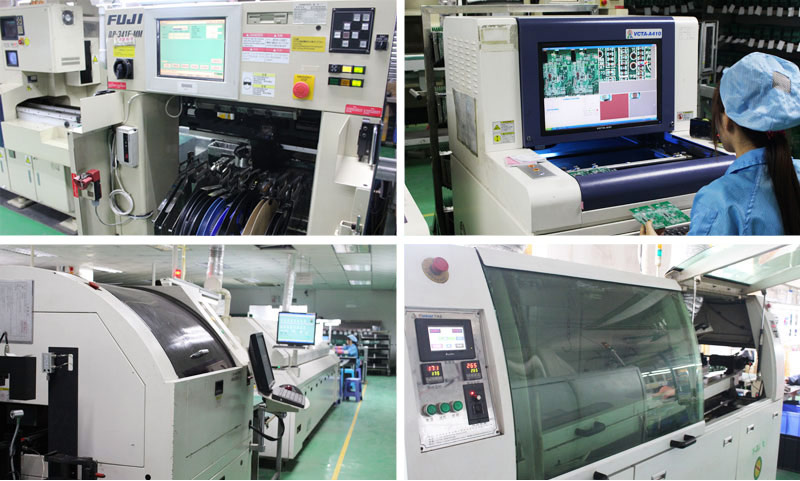

If bare board PCB is bone, PCB assembly is flesh and blood. PCB assembly highly determines the total quality of PCBA funtions. Our sophisticated engineers excute SOPs and weekly training to ensure the manufacturing processes. Advanced SMT lines can catch up with your demand of high-precision soldering, such as 0201, 0.25mm BGAs, PQFP, PLCC, SOP, SOJ etc. Now we have 6 SMT assembly lines and 4 DIP lines.| Turn Times | Selected Volume | Selected Solder Types |
| Same day through four weeks turns | No minimum order quantity | Leaded |
| Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| | Low cost first article builds | No-clean process available |
| Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
| Turnkey | Laser cut stainless steel | As small as .5mm pitch |
| Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
| Partial Turnkey | | |
| Assembly Types | Selected Component Types | Selected Other Capabilities |
| Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
| Thru-hole | As small as 0201 with design review | Repair/Rework services |
| Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
| Single or double sided placement | | Box Build/Electromechanical Assembly |
| | | Sub-assemblies |

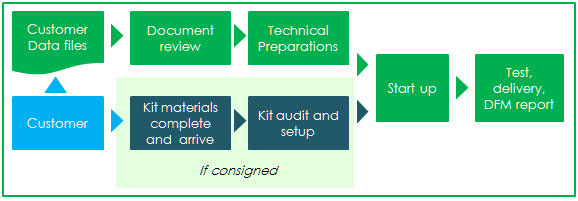

Bare Board PCB Manufacturing Process
About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.Your bare board PCB demand will be perfactly handled by our professional production line.
Trade Terms:1. Payment: T/T in advance (Western Union , payple is welcomed)2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.3. Sample can be delivered in 3days4. Shipping freight are quoted under your requests5. Shipping port: Guangzhou, Huangpu,China6. Discounts are offered based on order quantitiesIf you have any questions , welcom to discuss with us any time.
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
