| Product Name: |
Control Cable XLPE Cable Power Cable Electrical Ca |
| Voltage: |
300-1000V |
| Structure: |
Stranded Flexible Copper |
| OEM Or ODM: |
Yes |
| Usage: |
Power Transimision |
| Size: |
1.5-120mm² |
| Name: |
Control Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
BV TUV Tis |
| Brand: |
Rmjt |
Product Description

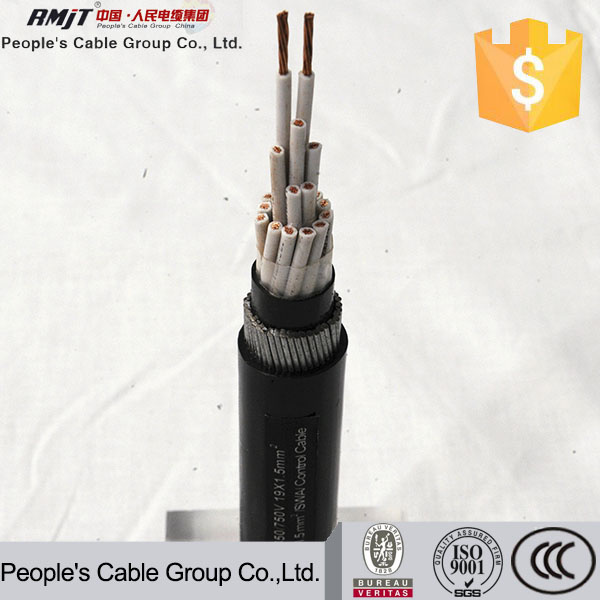

Control cable XLPE cable Power cable Electrical cable Rubber Cable
1.Application
Be suitable for measuring controlling or regulation for assmebly and production line with rated voltage 450/750 V.
For laying indoors, in ducts and in trenches, for fixed installation.
2.Standard:
ISO9001,CE, RoHS, CCC, KEMA and more others at request
3.SpecificationType& Specification
Conductor: Stranded copper conductor, class 2 Solid copper conductor, class1
Insulation: PVC
Sheath: PVC
Note: Insulation color as per standards or at request
| Type | Name | Section Area(mm²) | No. of Cores | Application Site |
| KVV | Copper Conductor, PVC Insulated and Sheathed Control Cable | 0.75,1.0,1.5 2.5 | 2-16 | Permanent installation indoors, in cable ditches or pipes |
| 4,6 | 2-14 |
| 10 | 2-10 |
| KVVP | Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable | 0.75,1.0,1.5,2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4,6 | 2-14 |
| 10 | 2-10 |
| KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 0.75,1.0,1.5,2.5 | 4-10 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4,6 | 7-61 |
| 10 | 4-10 |
| KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable | 0.75,1.0,1.5,2.5 | 7-61 | Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force |
| 4,6 | 4-14 |
| 10 | 4-14 |
| KVVR | Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | 0.5,1.0,1.5,2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 0.5,0.75,1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5,2.5 | 4-48 |
| KYJV | Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable | 0.75,1.0,1.5,2.5 | 2-16 | Permanent installation indoors, in cable ditches or pipes |
| 4,6 | 2-14 |
| 10 | 2-10 |
| KYJVP | Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable | 0.75,1.0,1.5,2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4,6 | 2-14 |
| 10 | 2-10 |
| KYJV22 | Copper Conductor, XLPE Insulated, Steel-tape Armored, PVC Sheathed Control Cable | 0.75,1.0,1.5,2.5 | 7-61 | Permanent installation indoors, in cable ditches, pipes or underground Be cable to with stand stronger external mechanical force |
| 4,6 | 4-14 |
| 10 | 4-10 |
| KYJVP2 | Copper Conductor, XLPE Insulated, Copper tape Screened, PVC Sheathed Control Cable | 0.75,1.0,1.5,2.5 | 7-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4,6 | 4-14 |
| 10 | 4-10 |
| KYJVR | Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable | 0.5,0.75,1.5,2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable | 0.5,0.75,1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5,2.5 | 4-48 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
