| Prod Model: |
HC-FPC-006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
289.00mm * 216.00mm |
| Key: |
136 Keys with Metal Dome and Embossing |
| Connector: |
65pin (Zif) |
| Color: |
11 Colors for Overlay |
| LED: |
12PCS |
| Quality: |
Top Quality |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Synthetic Fiber |
| Flame Retardant Properties: |
V2 |
| Brand: |
Tkm |
Product Description

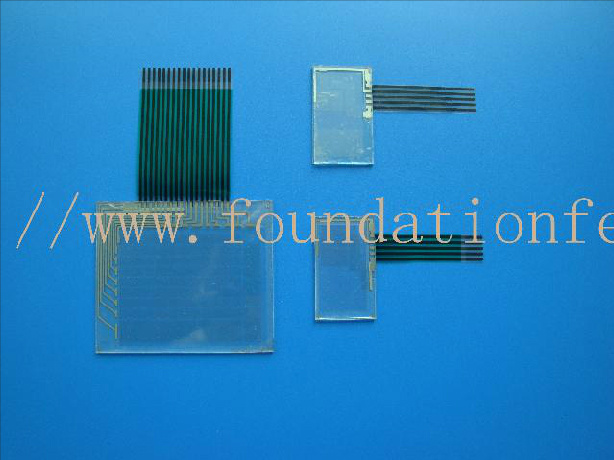

Control Feel Smooth Flexible PCB Board Flexible Printed Circuit
We are a company for the production processing with system integrity, and stable technical personnel fluctuation, besides we can provide one-station service
1. Layers:
Overlay, Overlay adhesive, Dome retainer, Metal dome, Spacer adhesive, Circuit, Rear adhesive (as customers request)
2. Production Capacity:
Screen Print Department, IR Tunnel, Thickness Tester, IR Oven, Laser Cutting Machine, Punching Department, Emboss Key Section, Assemble, Electric Testing, OQC Department, Virtual Aspect Testing, Punch Machine Department, PU Coating Section,
3. Technical Parameters:
Wire Resistance: ≤ 1 Ohm/cm
Current Rating: 25-100mA, 0-30V DC
Work Voltage: ≤ 50V DC
Insulation Voltage: ≤ 100M Ohm 250V DC
Working Life: ≤ One Million Times
Work Temperature: -40 Centigrade-70 Centigrade
Work Humidity: 40 Centigrade-≤ 98%RH
Basic Material Pressurization: 1500V DC
Please do contact me for more information, let's talk details!
Competitive Advantage:
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switch's design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
8. Can swab, character is not damaged, color is rich, good new, convenient installation
|
Insulation Resistance |
<100MΩ,250V DC |
Contact resistance |
<1Ω /cm |
|
operating voltage |
≤ 50VDC |
working current |
25- 100mA,0-30V DC |
|
reliability/service life |
>1 million times/Withstand millions of cycles |
Operating humidity |
when40°C,<98%RH |
|
spring time |
≤ 5ms |
substrate voltage |
2000V DC |
|
Tail flexiblility |
any angle within 180 degree |
Switch travel |
Flat Type 0.05-0.3mm tactile type:0.3-1.5mm |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
