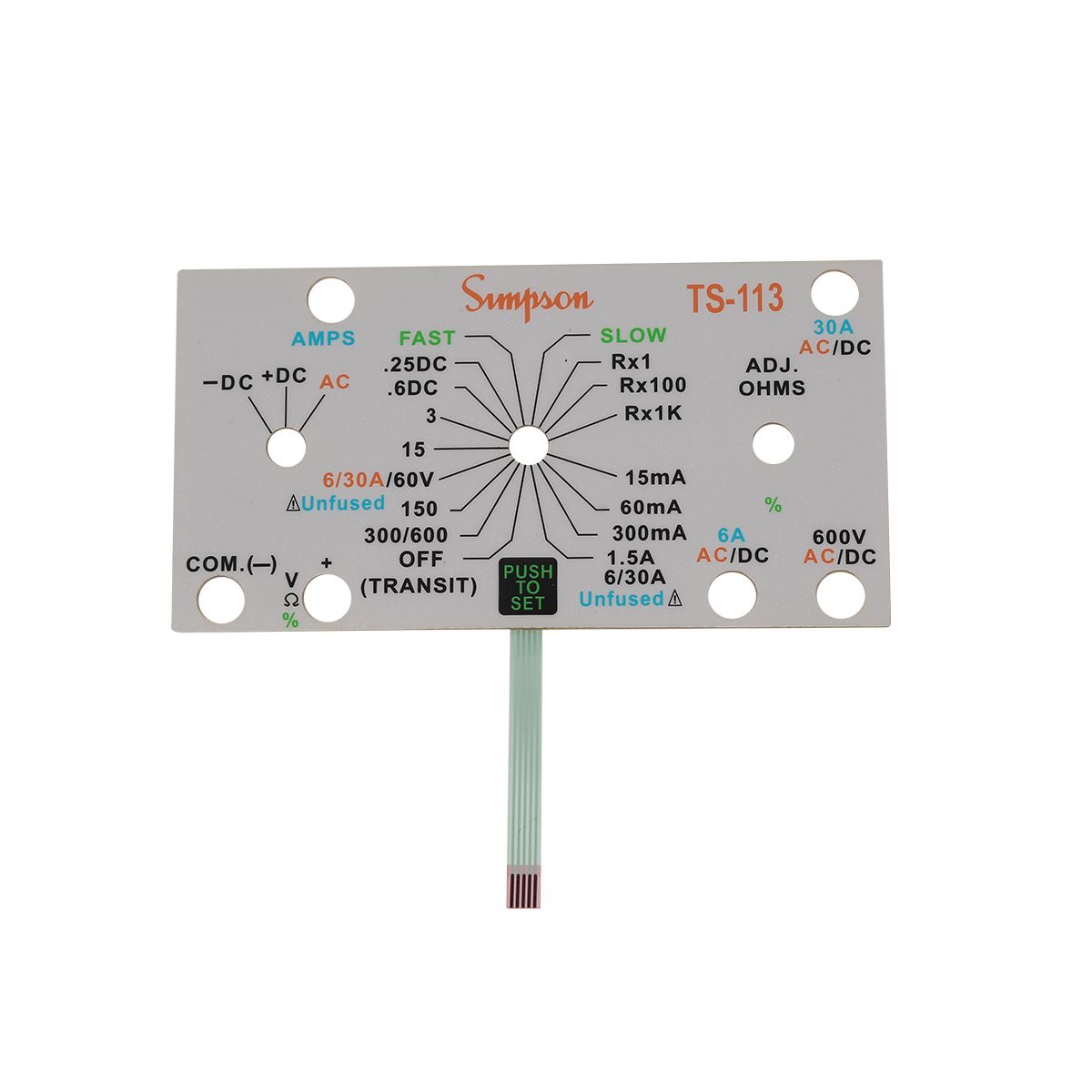

Control Keyboard Panel Metal Dome Membrane Switch

Name: Control Keyboard Panel Metal Dome Membrane Switch
Brand: all-electronics-online.com
SKU: 699158395
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MDMS-003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Type:	Convex
Material:	Silicone
Application:	With Remote Control

Product Description

Control Keyboard Panel Metal Dome Membrane Switch

Membrane switch has below main advantages.

1)Small and portable. Generally a membrane switch is several or dozens grams, it is quite convenient to carry or disassemble.

2)Aesthetic appearance. It adopts advanced silk screen printing technology, with special design; We can provide any custom solution you need.

3)Sealing. To meet customer's unique needs of the program, we can design the membrane switch to be water- proof, grease proofing, dust-proof, and static-free...With unique technologies, the membrane switch can endure a high voltage.

4)Good conductivity. The circuitry is printed with carbon, silver, copper foil and so on, it can be freely folded, and the resistance can be limited according to customer's specification.

5)Low cost. Membrane switch is low price, some even costs only cents. Compare to other electronic components which have same function, it is exactly cheap price.

6)Long lifetime. The materials are with high isolation, thermal resistance, fold resistance and rebound resilience. Moreover, the graphic can not be damaged because of its second surface printing; The lifetime is usually above 3 years.

Look forward to your special inquiry!

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
