| Prod Model: |
HC-NP-007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Exterior: |
Good Looking |
| Type: |
Flat |
| Application: |
With Remote Control |
| Material: |
Silicone |
Product Description

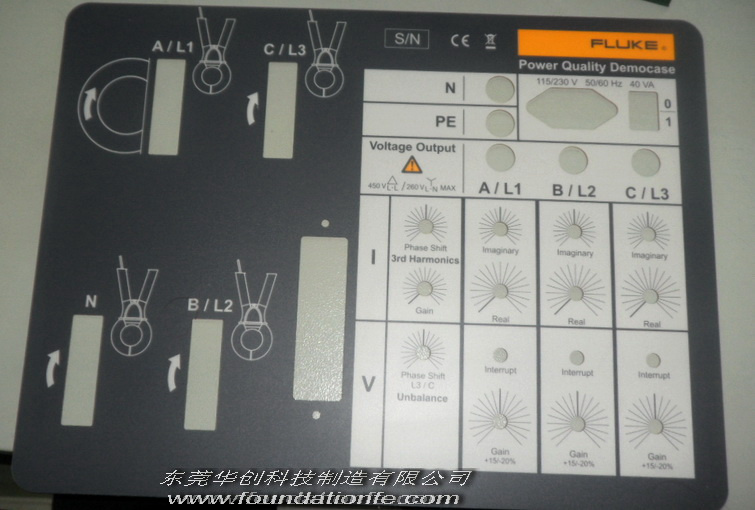

Control Silicone Button Cut Outs Overlay Faceplate Membrane Nameplate
1. Layers: Overlay: V200+3M467MP+PC0.7mm+3M467MP(rear adhesive)
2. Tooling: Silk printing, Steel moulds.
3. Gloss PC with matte finish and PVC
4. With control panel
5. Thickness: 1.0mm
Foundationfe trading here, manufacturing all kind of membrane switches, overlay, flexible circuit, silicone rubber keypads with competitive price and high quality, Looking forward to your inquiry!
6. Digital Printing or Silk screen printing available.
Membrane switch flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.
Membrane switch has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.
Membrane switch production process are generally:
Electrode Board to make silk screen printing plate → → → drying → Silver Screen Printing Screen Printing carbon seminal → drying → Pressing → Screen Printing → panel assembly.
The following brief membrane switch materials and screen printing process.
1. Substrate
For the production of membrane switch panel substrate of the following:
(1) polycarbonate film
Polycarbonate film great temperature range (-135 ~ 135 ºC), when the temperature or humidity changes, the performance of this material changed little, from 100 to ensure the panel can be various types of equipment under a variety of harsh environment use.
(2) PVC film
Poor heat resistance, especially in high temperature conditions, the softening temperature of 59 ºC, less flexible polycarbonate film good. But it has a high elongation (130%), but also because of its low price, it is suitable for use in the general conditions.
(3) polyester film
Flexibility and heat resistance are good, the price range of between polycarbonate film and PVC film. But its hard to process into films matt type surface texture, often isolated and the transparent sheet, while the vast majority of the surface of polyester film of plastic printing ink can not get satisfactory results, generally requires the use of a particular special ink.
(4) Polyethylene film
Polyethylene film with excellent physical properties and chemical properties, and ability many chemicals, such as alcohols, aliphatic hydrocarbons, aromatic hydrocarbons, esters, ketones and alcohol ether etc. However, the higher the price of polyethylene film.
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
