Yueqing Winston Electric Co., Ltd. >> Control Transformer 4000va for Machine Tool (BK-4000)

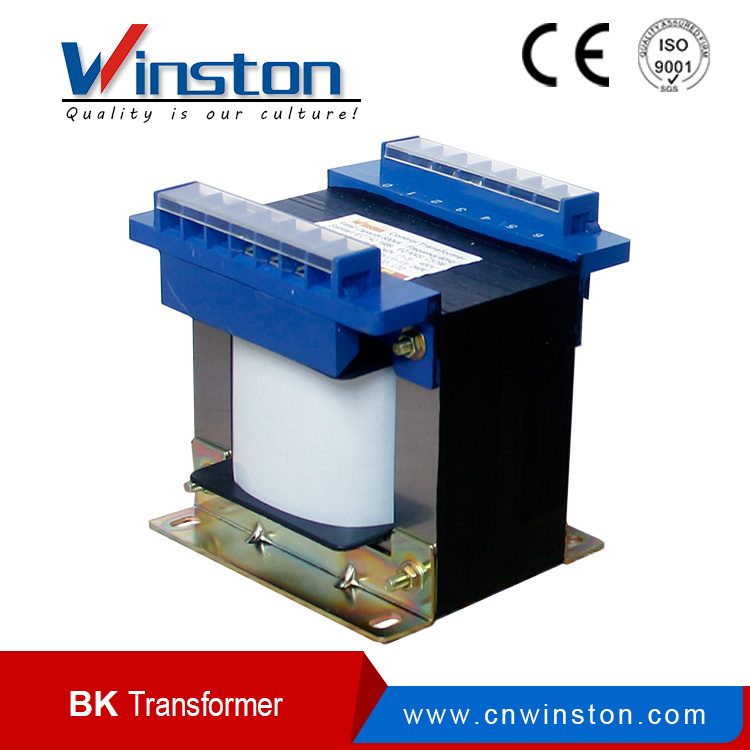

Control Transformer 4000va for Machine Tool (BK-4000)

Control Transformer 4000va for Machine Tool (BK-4000)
Price: US $ 144-165/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: BK-4000
Product Name: Control Transformer
Power: 4000va
Input Voltage: 24V 36V 110V 220V 380V
Product Size: 250*250*280mm
Type: Dry Type
Use For: Machine Tool
Customize: Accept
Certificate: Ce
Warranty: 1 Years
Application: Instrument
Phase: Single
Coil: Shell-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Separated Winding Transformer
Certification: Ce
Brand: Winston

Product Description

Control Transformer 4000VA For Machine Tool (BK-4000)

Application

BK series machine tool control transformer is suitable for circuit of 50~60Hz, voltage up to 500V, usually applied as power supply for machine tool electrical appliances, local lightings and indicator lamps.

Structure character
According to different structures, BK transformer belongs to shell type, and according to the installation mode, it belongs to vertical type.

Working environment
1. Ambient air temperature: -5oC~+40oC, the highest monthly mean temperature should not exceed +30oC;
2. Altitude for installing place should not exceed 1000m;
3. When the ambient air temperature is +40, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25oC, and condensation on the product surface caused by temperature change should be taken into consideration.

Datasheet:

ModelPower (VA)Input   voltage  (V)Output
voltage (V)
ExternalInstalls the sizeInstallment hole
BmaxDmaxEmaxA±0.4C±1.5KJ
BK-2525VA380VAC /220VAC 36V     /24V     /12V   /6.3V 768077655057
BK-5050VA879487706068
BK-100100VA10895101856568
BK-150150VA108100101857568
BK-200200VA108107101858068
BK-250250VA1151101259095811
BK-300300VA11511512590100811
BK-400400VA135140140110100811
BK-500500VA135145140110105811
BK-800800VA155150160125119811
BK-10001000VA155160160125130811
BK-15001500VA180220180143150811
BK-20002000VA180240180143175811
BK-25002500VA210230240185175811
BK-30003000VA210245240185190811
BK-40004000VA250250280195170811
BK-50005000VA250265280195195811
