Convection Oven Motor with Ball Bearing Class H

Name: Convection Oven Motor with Ball Bearing Class H
Brand: all-electronics-online.com
SKU: 817314785
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 2.8-6/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	cross flow blower
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Silicon Sheet
Wire Material:	Copper
Protection:	Over-Heater Protection
Number Of Stator:	Single-Phase
Function:	Driving
Application:	Household Appliance
Starting Mode:	Induction Starting
Brand:	Yixiong
Certification:	Ce UL

Product Description

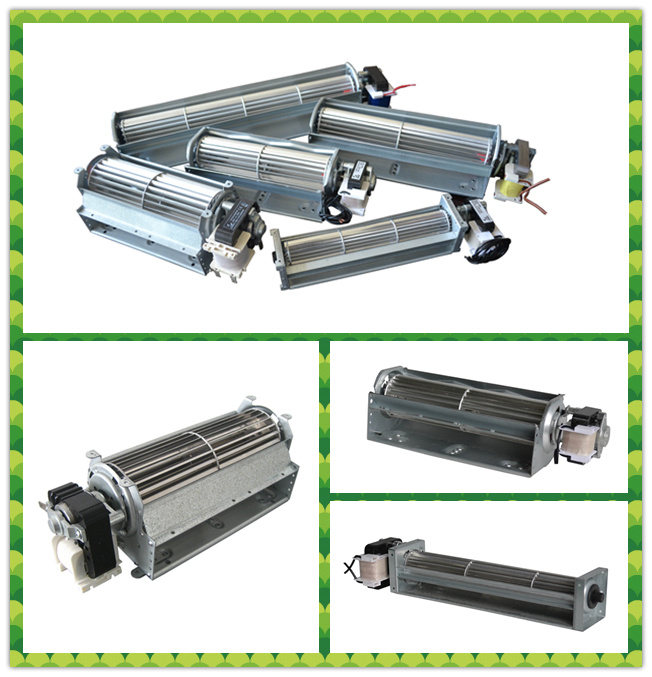

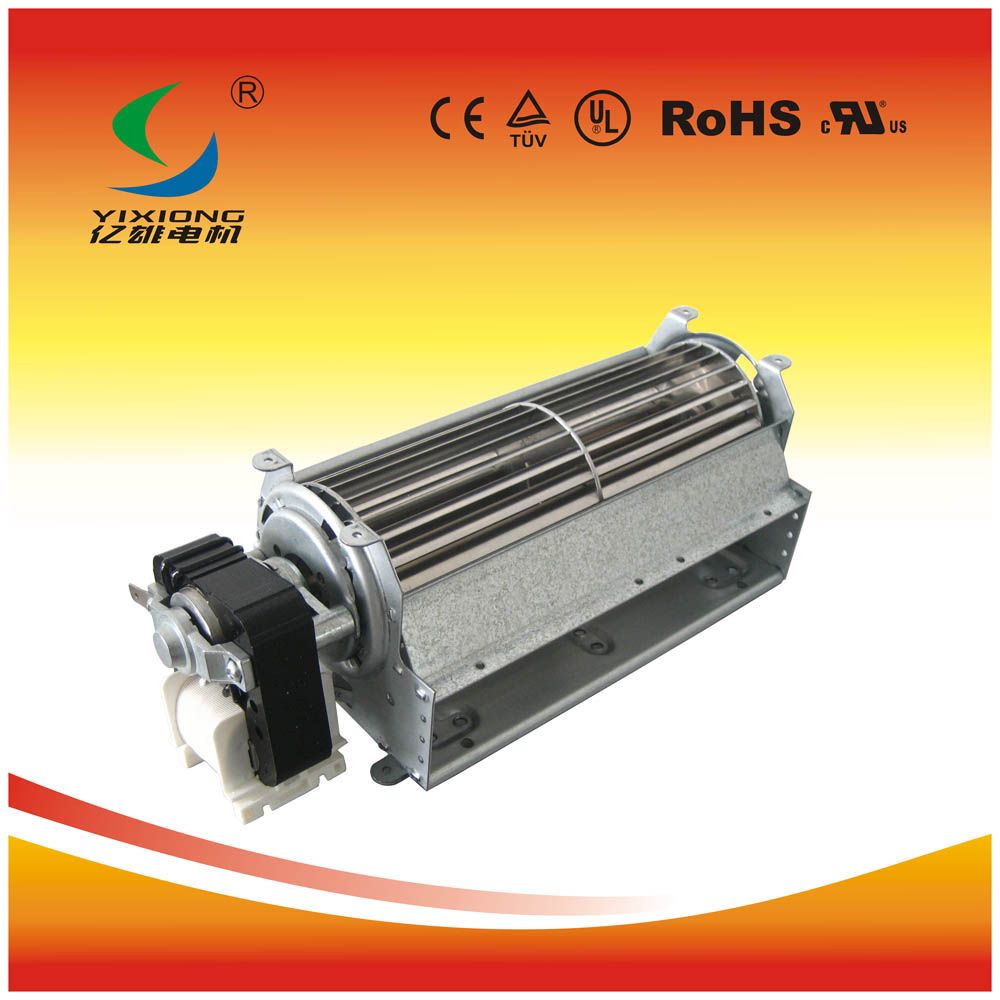

Electric Shaded Pole Cross Flow Blower Motor(YJ61) Specification:

1. Motor Size : YJ48 ,YJ61 , YJ62
2. Blower Size : Wheel Dia : 30,45,60mm
Length : 120-360mm
3. Supply Voltage : 230V AC 50HZ
4. Bearing : Sleeve bearing and Ball bearing are both available
5. Direction of rotation : CCW or CW
6. Axial Clearance : Max 1.0
7. Voltage resistance : 1500V /0.5mA / min
8. Insulation resistance : Cold≥50MΩ , Hot≥20MΩ
9. Comply with Rohs Directive
10 Minly products is approved by CE, TUV, UL

Model	Size	Motor	Speed	Insulation Class
48030	L:180mm D:30mm N:23	YJ4815	2500RPM	E/B/F/H
18045	L:180mm D:45mm N:20	YJ4815	2000RPM	E/B/F/H
30045	L:300mm D:45mm N:20	YJ4815	1000RPM	E/B/F/H
36045	L:360mm D:45mm N:20	YJ4815	900RPM	E/B/F/H
13360	L:133mm D:60mm N:22/23	YJ6116	2500RPM	E/B/F/H
15860	L:158mm D:60mm N:22/24	YJ6116	2400RPM	E/B/F/H
18060	L:180mm D:60mm N:22/24	YJ6120	2300RPM	E/B/F/H
22060	L:220mm D:60mm N:22/24	YJ6120	2200RPM	E/B/F/H
24060	L:240mm D:60mm N:22/24	YJ6130	1500RPM	E/B/F/H
30060	L:300mm D:60mm N:22/24	YJ6130	1200RPM	E/B/F/H
34060	L:340mm D:60mm N:22/24	YJ6140	900RPM	E/B/F/H
36060	L:360mm D:60mm N:22/24	YJ6140	800RPM	E/B/F/H

Application:

1.This cross blower motor could be used for: Fan-heater, Air-conditioner,Microwave oven,fan ,household and industrial,appliances.

2.It is safty and reliale,low noise,characteristic hard,good staring,long life,etc,

Delivery terms:

1.T/T in advance will be our popular payment terms.

2.We'd like to send you some samples for your cloth for your cloth inspection first.

3.We have detailed specification.If you are interested in it,please wite to me or call me on skype.

Packing:

1.Carton use double wall corrugated board.

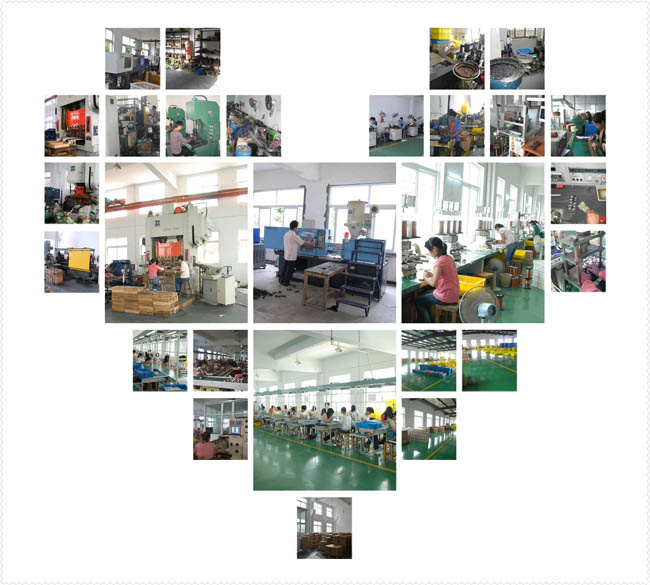

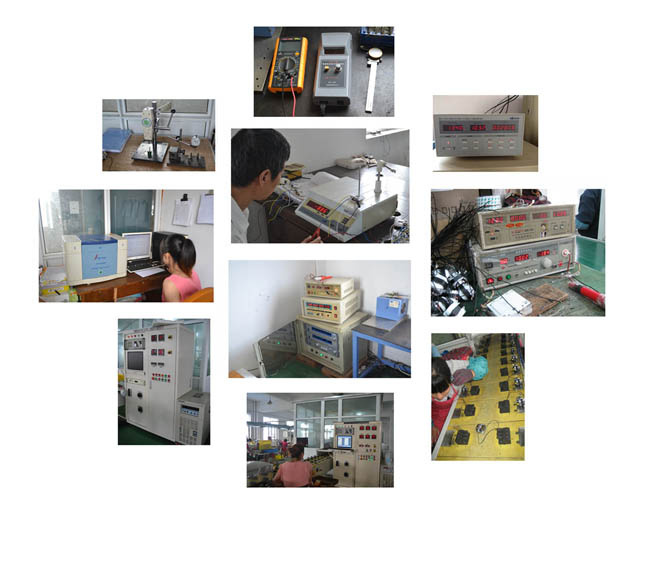

Production and Inspection

Contact

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
