Cool/Heat Digital Temperature Controller AC220V 10A

Name: Cool/Heat Digital Temperature Controller AC220V 10A
Brand: all-electronics-online.com
SKU: 818597325
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 9.7-12.3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KP-112E

Product Description

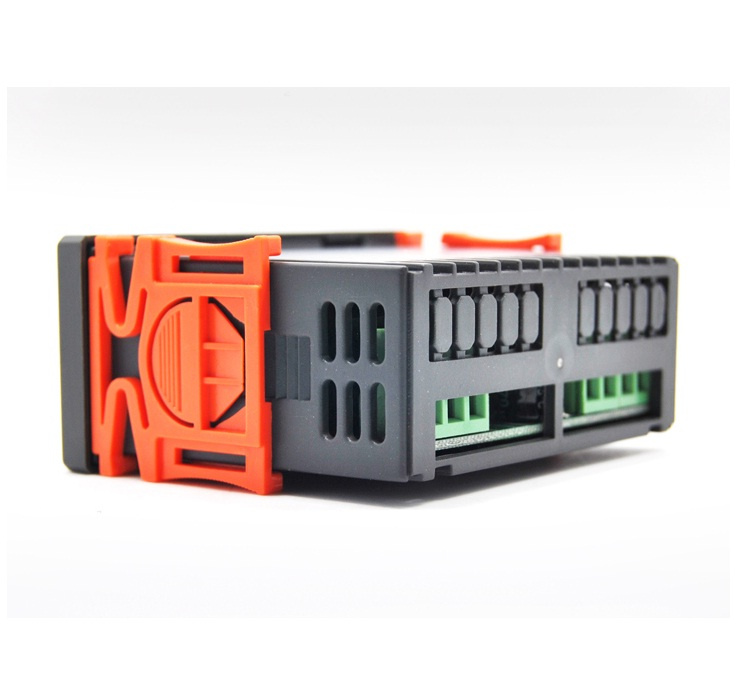

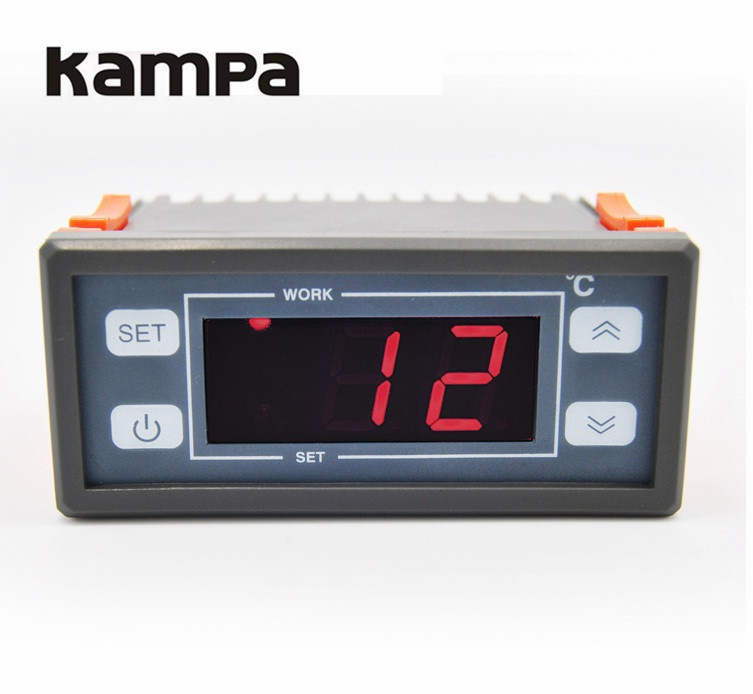

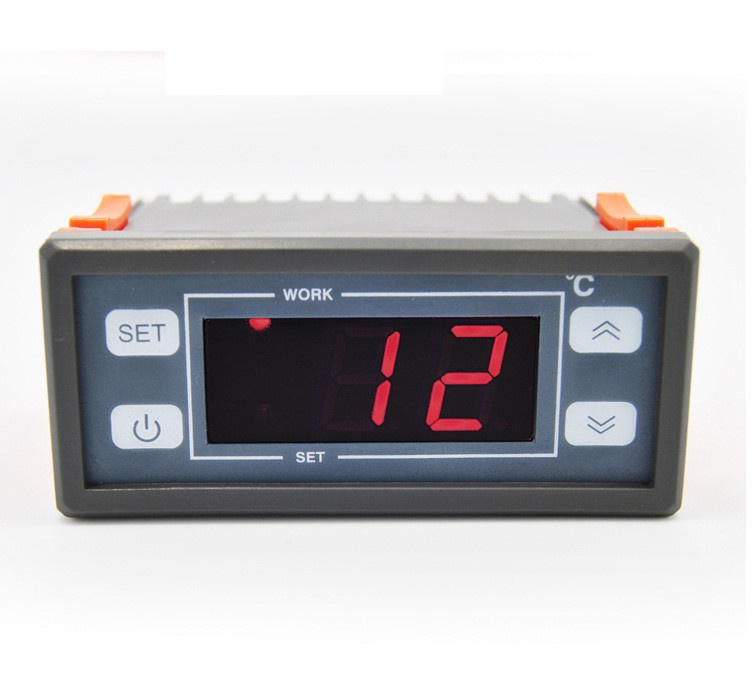

Cool/Heat Digital Temperature Controller AC220V 10A

Features:

LED display
High low temperature limit
Sensor error and over temperature alarm
Key sound accompanied
Keys with cilicone caps
Cool / Heat control

Parameters:

Temperature measuring and controlling range: -40~99°C
Relay capacity of compressor options: 5A, 10A or 30A(different price)
Power options: 220VAC, 110VAC, 24VAC/DC, 12VAC/DC
Input: 1 NTC sensor
Sensor wire: 2m(standard)
Accuracy: ±1°C, Resolution: 1°C
Consumption: ≤3W
Sensor: NTC sensor (1pc)
Cut-out size: 71×29(mm), product size: 77×34.5×62(mm)
Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

Function Menu:

Code	Function	Setting range	Default	Unit
HC	Mode option	C: refrigeration H:heating	C	/
D	Controlling-temp. differential	1~15	3	°C
LS	Lower Temp. limit	-40~setting Temp.	-40	°C
HS	Upper Temp. limit	Setting Temp.~99	99	°C
CA	Temp. calibration	-5~5	0	°C
PT	Compressor delay	0~15	3	Min.

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
