Cooling Aluminum Shell DC Regulated 100W 48V Switch Power Supply DC

Name: Cooling Aluminum Shell DC Regulated 100W 48V Switch Power Supply DC
Brand: all-electronics-online.com
SKU: 820999585
Availability: InStock
Rating: 5 (42 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-100W
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

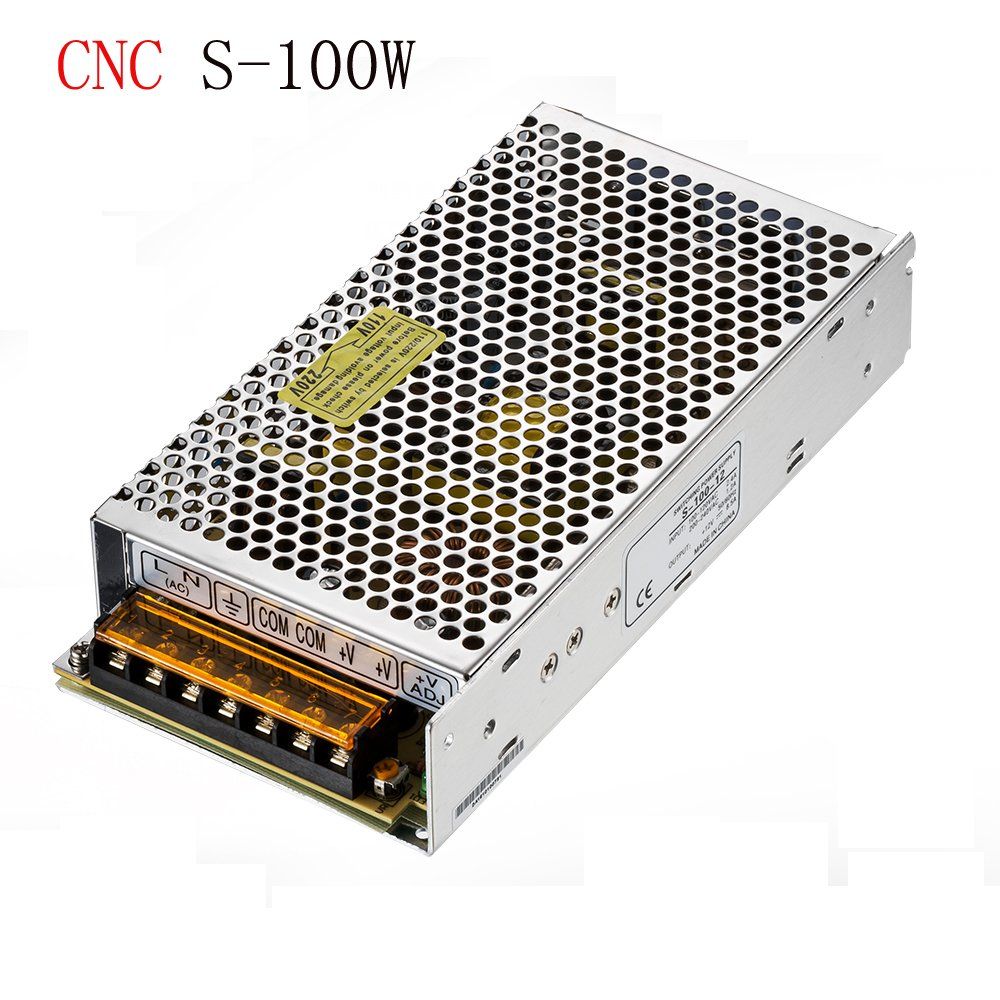

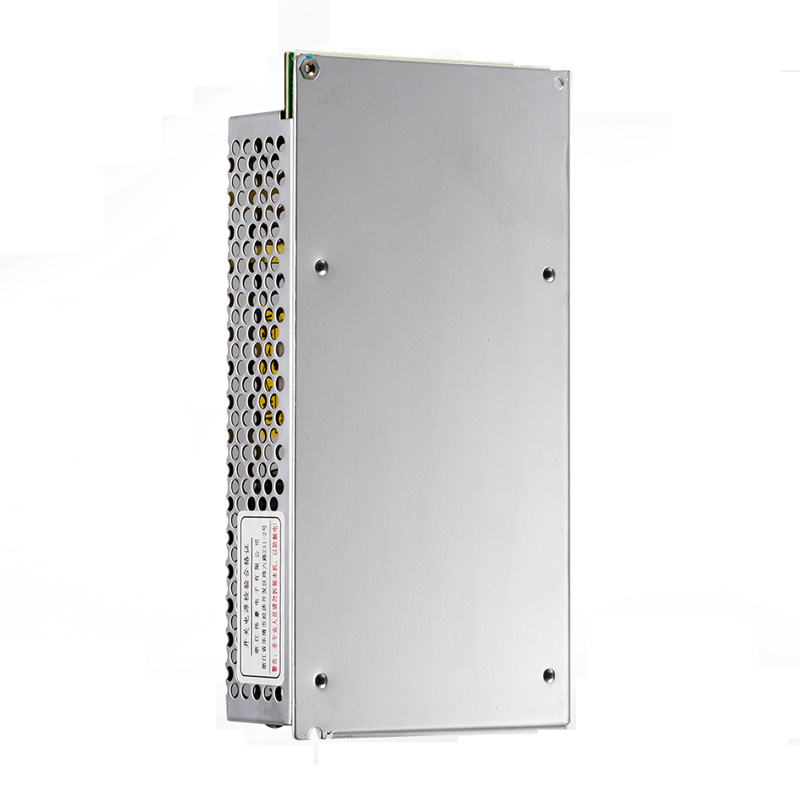

Cooling Aluminum shell DC Regulated 100w 48v switch power supply dc

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model	S-100-3	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
DC output voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Output voltage range(Note:2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Output voltage range(Note:2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise(Note:3)	150mV	150mV	150mV	150mV	150mV	150mV	200mV	240mV
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability(Note:5)	±1%	±1%	±0.5%	±0.3%	±0.3%	±0.2%	±0.3%	±0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	81%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85~3V	4.75~5.5V	6.75~8.25V	10.8~13.2V	13.5~16.5V	21.6~26.4V	26~32V	43.2~52.8V
Input current	2.4A/115V 1.2A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150%		150%~200%	105%~150%
Overload protection	Type: Output shutdown Reset: Recycle AC ON/OFF
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	200ms,100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight	0.65Kgs
Safety standards	Meet UL 1012 requirementNot apply forr the mark
EMC standards	Meet FCC PART 15 J Conduction class B
