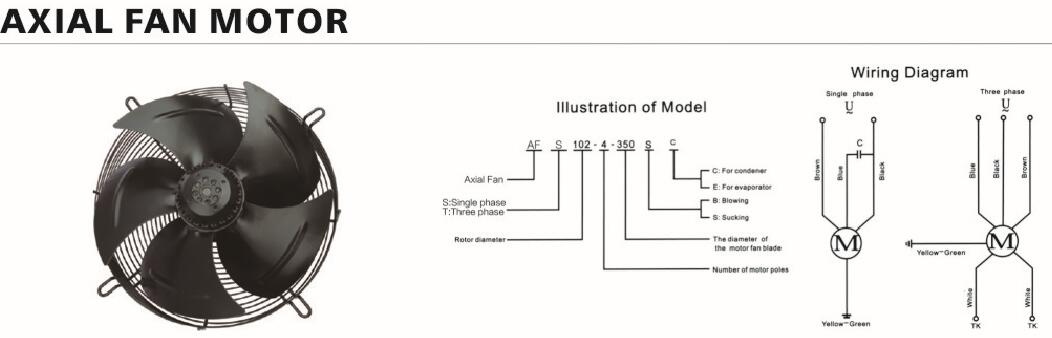

Coolsour Axial Fan Motor for Evaporative Cooler

Name: Coolsour Axial Fan Motor for Evaporative Cooler
Brand: all-electronics-online.com
SKU: 824243215
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 10-200/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AFS/AFT
Port:	Ningbo, Shanghai or Appointed
Color:	Black
Material:	Stainlsss Steel
Special Type:	Can Be Customized
Testing Before Shipping:	Yes
Application:	Moving Machinery
Structure:	Electromagnetic
Brand:	Coolsour

Product Description

Quick Details
Type:Refrigeration parts
Place of Origin:Zhejiang, China (Mainland)
Brand Name:RESOUR
Model Number:RS-YWF
Certification:CE
Diameter:200-630mm
Voltage:220V/380V
Special Voltage:Customized
Poles:2/4/6 Poles
Special type:Can be customized
Testing before shipping:Yes
Packaging & Delivery

Packaging Details:	Carton cover with Single inner box
Delivery Detail:	10-30 days

Specifications

Model	Voltage	Frequency	Current	Input	Rated rotor speed	Rated air flow	Noise	Capacitance	N.W
Model	V	Hz	A	W	r/min	m³/h	dBA	μF	kg
AFS-92-2-200	220	50	0.26	50	2300	1080	50	2	2.5
AFS-92-4-200	220	50	0.30	40	1400	830	45	1.5	3.0
AFT-92-2-250	380	50	0.22	80	2600	1367	60	-	3.0
AFS-92-2-250	220	50	0.45	90	2200	1358	60	3	3.0
AFT-92-4-250	380	50	0.17	60	1400	1132	58	-	3.0
AFS-92-4-250	220	50	0.21	50	1308	1108	58	2	3.0
AFT-92-2-300	380	50	0.35	140	2550	2800	60	-	3.3
AFS-92-2-300	220	50	0.65	140	2530	2800	60	4	3.3
AFT-92-4-300	380	50	0.22	75	1380	1831	58	-	3.3
AFS-92-4-300	220	50	0.45	100	1380	1743	58	3	3.3
AFT-102-4-350	380	50	0.35	120	1380	3170	62	-	4.9
AFS-102-4-350	220	50	0.57	125	1380	2973	62	4	4.9
AFT-102-6-350	380	50	0.35	90	920	2100	56	-	4.9
AFS-102-6-350	220	50	0.32	90	920	2000	56	3	4.9
AFT-102-4-400	380	50	0.50	180	1380	4500	68	-	5.6
AFS-102-4-400	220	50	0.72	160	1380	4400	68	6	5.6
AFT-102-6-400	380	50	0.38	110	920	3200	58	-	5.6
AFS-102-6-400	220	50	0.50	110	920	3200	58	4	5.6
AFT-102-4-450	380	50	0.65	230	1360	5600	68	-	7.2
ATS-102-4-450	220	50	1.20	280	1350	5507	68	8	7.2
AFT-102-6-450	380	50	0.40	150	920	4600	60	-	7.2
AFS-102-6-450	220	50	0.80	160	920	4600	60	6	7.2
AFT-138-4-500	380	50	0.80	300	1300	6246	72	-	9.5
AFS-138-4-500	220	50	1.65	350	1300	6040	72	10	9.5
AFT-138-6-500	380	50	0.60	230	900	5800	68	-	9.5
AFS-138-6-500	220	50	1.20	230	900	5800	68	10	9.5
AFT-138-4-550	380	50	1.20	400	1300	8487	75	-	10.5
AFS-138-4-550	220	50	2.00	500	1300	8268	75	12	10.5
AFT-138-6-550	380	50	0.80	330	900	6509	70	-	10.5
AFS-138-6-550	220	50	1.70	330	900	6348	70	12	10.5
AFT-138-4-600	380	50	2.20	830	1350	12500	78	-	14.0
AFS-138-4-600	220	50	3.00	650	1300	10500	78	16	14.0
AFT-138-6-600	380	50	1.50	520	900	9400	72	-	14.0
AFS-138-6-600	220	50	2.40	520	900	9400	72	16	14.0
AFT-138-4-630	380	50	2.45	930	1320	13000	78	-	15.0
AFS-138-4-630	220	50	3.20	700	1300	11000	78	16	15.0
AFT-138-6-630	380	50	1.60	560	900	9500	75	-	15.0
AFS-138-6-630	220	50	2.50	560	900	9500	75	16	15.0

1.Protect range: IP 54
2.For refrigeration machine
3.More types or models can be chose

RESOUR Refrigeration Integration Co., Ltd Located in Shengzhou City which draws the most of Chinese manufacturers here because of the convenient traffic that only 1 hour to Hangzhou, Ningbo, Yiwu by car and 1.5 hours to Shanghai, Taizhou, Wenzhou by train.

Our factory is one of the leaders into refrigeration industry since 1992, plant area over than 20, 000, number of workshops is over than 8, number of employees is over than 200.

We are turning into a multi-function company who collects matching, designing, customizing, standard production, trading and maintenance together through our inceasing development and innovation.

We devote our whole team into refrigeration industry service, including cold room equipment and spare parts, commercial and household refrigerator spare parts, air conditioning and spare parts, also the corresponding facilities.

We are ready for you at any time.
