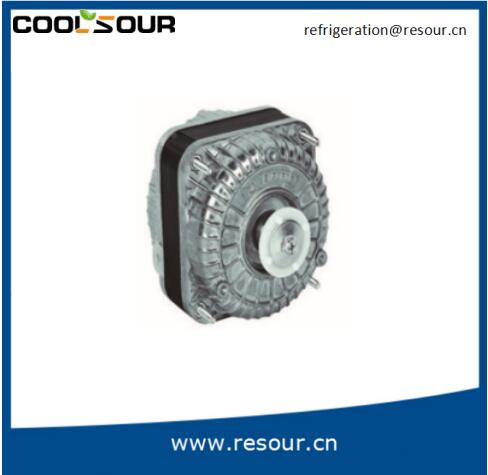

Coolsour Shaded Pole Gear Motor AC Electric Motor

Name: Coolsour Shaded Pole Gear Motor AC Electric Motor
Brand: all-electronics-online.com
SKU: 824250235
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 1-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YZF
Port:	Ningbo, Shanghai or Appointed
Color:	Black
Material:	Stainlsss Steel
Special Type:	Can Be Customized
Testing Before Shipping:	Yes
Application:	Moving Machinery
Structure:	Electromagnetic
Brand:	Coolsour

Product Description

Packaging Details:	Carton cover with Single inner box
Delivery Detail:	10-30 days

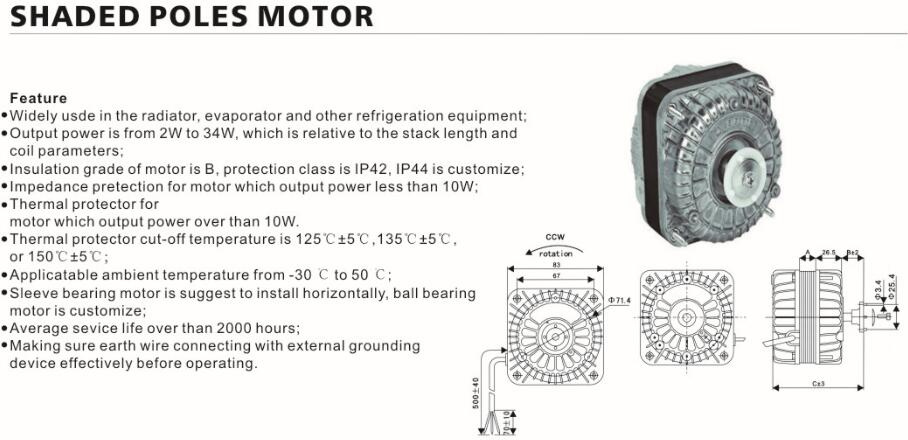

Feature:
1.Widely usde in the radiator, evaporator and other refrigeration equipment;
2.Output power is from 2W to 34W, which is relative to the stack length and coil parameters;
3.Insulation grade of motor is B, protection class is IP42, IP44 is customize;
4.Impedance pretection for motor which output power less than 10W, Thermal protector for motor which output power over than 10W.
5.Thermal protector cut-off temperature is 125ºC±5ºC,135ºC±5ºC, or 150ºC±5ºC;
6.Applicatable ambient temperature from -30 ºC to 50 ºC;
7.Sleeve bearing motor is suggest to install horizontally, ball bearing motor is customize;
8.Average sevice life over than 2000 hours;
9.Making sure earth wire connecting with external grounding device effectively before operating.

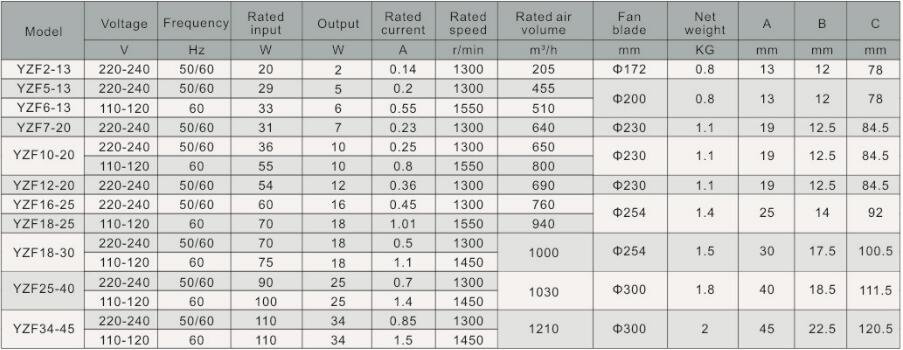

Specifications

1.Protect range: IP 54
2.For refrigeration machine
3.More types or models can be chose

RESOUR Refrigeration Integration Co., Ltd Located in Shengzhou City which draws the most of Chinese manufacturers here because of the convenient traffic that only 1 hour to Hangzhou, Ningbo, Yiwu by car and 1.5 hours to Shanghai, Taizhou, Wenzhou by train.

Our factory is one of the leaders into refrigeration industry since 1992, plant area over than 20, 000, number of workshops is over than 8, number of employees is over than 200.

We are turning into a multi-function company who collects matching, designing, customizing, standard production, trading and maintenance together through our inceasing development and innovation.

We devote our whole team into refrigeration industry service, including cold room equipment and spare parts, commercial and household refrigerator spare parts, air conditioning and spare parts, also the corresponding facilities.

We are ready for you at any time.
