Copper-Aluminium Connecting Terminal (DTL-2 Series)

Name: Copper-Aluminium Connecting Terminal (DTL-2 Series)
Brand: all-electronics-online.com
SKU: 618968735
Availability: InStock
Rating: 5 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTL-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Product Description:

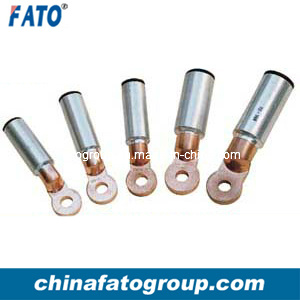

DTL series of copper-aluminum wiring terminals are suitable connection of the circular aluminium wires, hemicycle-sector aluminium wires, power supply cables in the distribution equipment and copper terminals of the electrial equipment. The material of aluminuum and copper is that of L3and T2 respctively. The technology of friction welding is wonderfully adopted. Therefore they have disinguishing features of strong weld intensity,good nature in electrification, resistant galvanic corrosion and long service life.

Model as follows:

TYPE	Φ	D	D	L	L1
DTL-2-16	13	16	5.5	87	42
DTL-2-25	13	16	6.5	87	42
DTL-2-35	13	16	8	87	42
DTL-2-50	13	20	9	87	43
DTL-2-70	13	20	11	87	43
DTL-2-95	13	20	12.5	87	43
DTL-2-120	13	25	13.5	111	60
DTL-2-150	13	25	15.5	111	60
DTL-2-185	13	32	17.5	116	60
DTL-2-240	13	32	19.5	116	60
DTL-2-300	13	34	22.5	120	62
