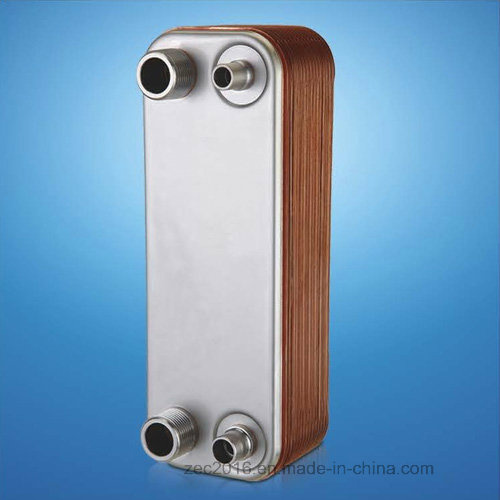

Copper Brazed Heat Exchanger with UL, Ce

Name: Copper Brazed Heat Exchanger with UL, Ce
Brand: all-electronics-online.com
SKU: 715001052
Availability: InStock
Rating: 4.6 (87 reviews)

Price:	US $ 37-45/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	B3-027-10
Applications:	Heat Pump, Low Temperature Testing Equipment
Heating Capacity:	5-20kw
Warranty:	2 Years
Customized Connections:	Yes
Thickness Of Plate:	0.38

Product Description

Model B3-027
Height x width 310x110mm
Hole distance 250x50mm

Design pressure 3.0MPA 4.5MPA
Test pressurec 4.5MPA 6.75MPA

Max Threaded Connection 1 1/4"
Max Welded Connection 1 3/8"
Plate material AISI 316L 304
Weight(kg) 1.3+0.12n
Max No. Of plate 150

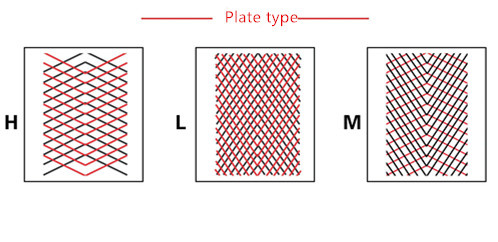

Channel H

Heat exchange area(m2) (n-2)× 0.027
Side valumn 0.05× N/2 0.05× (n-2)/2
Design temperature -196---+200degree

Model	No. Of Plate	Design Pressure>3.0	Design Pressure≤3.0	Weight(Kg)	Capacity(L)		Heat transfer Area(m2)
Model	No. Of Plate	A(mm)	A(mm)	Weight(Kg)	Q1Q2 Side	Q3Q4 Side	Heat transfer Area(m2)
B3-027	n	11+2.4n	9+2.4n	1.3+0.12n	0.050*1/2n	0.050*1/2(n-2)	(n-2)0.027
	20	59	57	3.8	0.500	0.450	0.504
	30	83	81	5.1	0.750	0.700	0.784
	40	107	105	6.4	1.000	0.950	1.064
	50	131	129	7.7	1.250	1.200	1.344
	60	155	153	9.0	1.500	1.450	1.624
	70	179	177	10.3	1.750	1.700	1.904
	80	203	201	11.6	2.000	1.950	2.184
	90	227	225	12.9	2.250	2.200	2.464
	100	251	249	14.2	2.500	2.450	2.744

Zhejiang ZEC Trade & Industry Co., Ltd. is located in the famous city Hangzhou.

Hangzhou city is 180 KM away from Shanghai and 160 KM away from Ningbo Port.

Sea, land and air transportation is very convenient, and communications network facilities is quite perfect.

We are professional manufacturer and exporter that was founded in 1984 and have many years of exporting experiment in China. Our products sell well inAsia, America, Germany, Italy and Brazil etc.

As a leading manufacturer and exporter for the refrigeration field in China, we mainly produce and export brazed plate heat exchanger& finned tube heat exchanger. Our factory has the advanced vacuum braze fumace and special fin machine and professional testing equipment.

The product has passed the following product certification: ISO9001: 2008 quality system certification, and CE, UL certification.

Welcome to send your inquiry with details and we sincerely promise to give a prompt answer within 12 hours.
