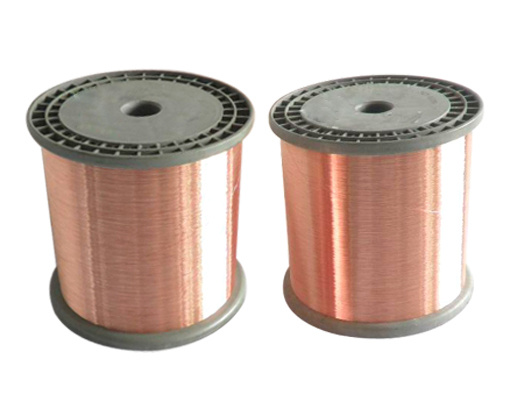

Copper Clad Aluminum Wire (CCA wire) -15A-0.08mm-5.0mm

Name: Copper Clad Aluminum Wire (CCA wire) -15A-0.08mm-5.0mm
Brand: all-electronics-online.com
SKU: 685658862
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Roll
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CCA-15A-0.08MM-5.0MM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CCA Is Divided Into According To Mechani:	Hard-Drawn(H) and Annealed(a)
CCA According To The Process:	Cladding CCA and Plating CCA
Specitication:	From 0.12mm-0.8mm
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper Clad Aluminum
Insulation Material:	Bare
Certification:	RoHS
Application:	Wires
Sheath Material:	None
Range Of Application:	Cables

Product Description

CCA  Performance:
It has th advantages of:
1.small density of aluminium
2. good conductivity of copper
3. high signal transmission property
4. light weight
5. low production cost
6. direct soldering, good colorability , high adhesiveness
7.thermal stability . high thermal endurance . high temperature softening breakdown
8.HF-resistance , solvent resistance and chemical property resistance to winding damage

Application :

CCA wire widely used in Cable TV signal and large volume communications net work signal transmission, control signal cable ,

welding cable and so on .

High Frequency Signal Transmission :

1. Choice conductor material for : cable TV coaxial cable

2. 50Ω Radio frequency (RF) cable

3. Flexible RF coaxial cable inner conductor material

4. Computer cable and other data cable inner conductor material

5. Superfine coaxial cable inner conductor material

Power Transmission:

1. Choice conductor material for Enameled Wire

2. Power cable conductor material

3. Control cable conductor material

4. Car and locomotives cable inner conductor

5. Construction cable conductor material

6. Bus-bar conductor material

7. Fuse

8. RF shielded cable network

Special Magnet Wire :

1. Choice conductor material for Computer

2. Mobile communications wire

3. Coil or column used in Aeronautics and Astronautics or Military Devices

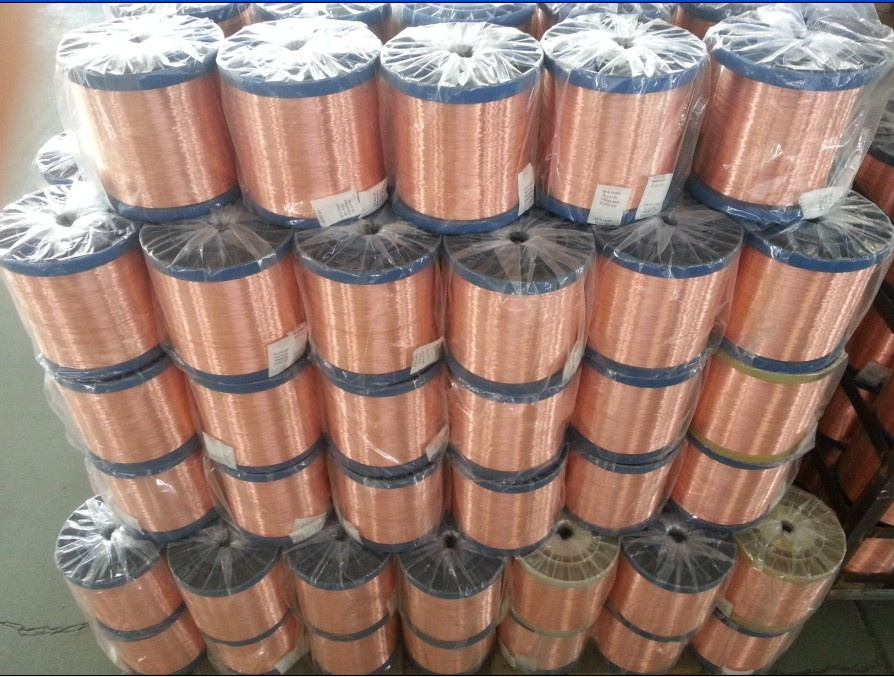

Normal Package :

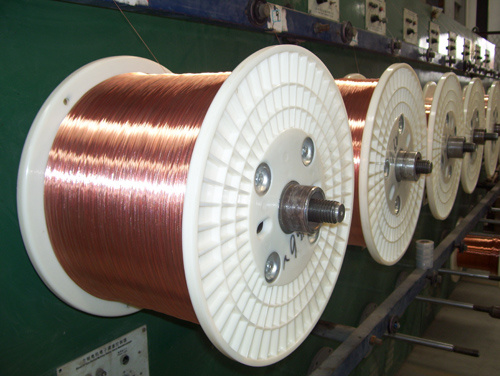

Spool size: DIN130mm ,DIN160mm,Din185mm,DIN250mm, DIN400mm,Din630mm,DIN800mm;

property	Conductor
	CCA wire	CCAM wire	CCA(plating) wire	CCAM(plating) wire	Copper wire
Copper volume	15	13-17	3-10	3-10	100
Specific gravity	3.63	3.61	2.85	2.85	8.89
Length compared to copper wire	2.5:1	2.5:1	3.2:1	3.2:1	1:1
Conductivity(%IACS)	65%	50%-55%	62%-65%	37%-50%	1005
Dc resistivity(Ω.mm2/m)	0.02651	0.02857	0.027	0.047	0.01724
Tensile Strength(Mpa)	95-135	180-230	90-130	>250	215-265
Elongation(%)	≥10	≥10	≥10	≥10	≥10
Windability	good	good	good	good	excellent
Weight	good	good	good	good	bad
Solderability	excellent	excellent	excellent	excellent	excellent
Dc resistance	excellent	good	excellent	good	excellent
