| Prod Model: |
braided power cable |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
BV Cable 50mm2 |
| Voltage Rating: |
450/7502V |
| Conductor: |
Bare Copper |
| Cores: |
as Client's Requirement |
| Color: |
Red/Black/Blue/Yellow/Green |
| Jcaket: |
PVC |
| Lenght: |
100m/Reel |
| Package: |
Package Fillm Packing |
| Delivery: |
15-20days After Payment |
| Certificat: |
CE/3c/SGS/RoHS |
| Application: |
House |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Model: |
BV |
| Brand: |
Yongkuntai |
Product Description

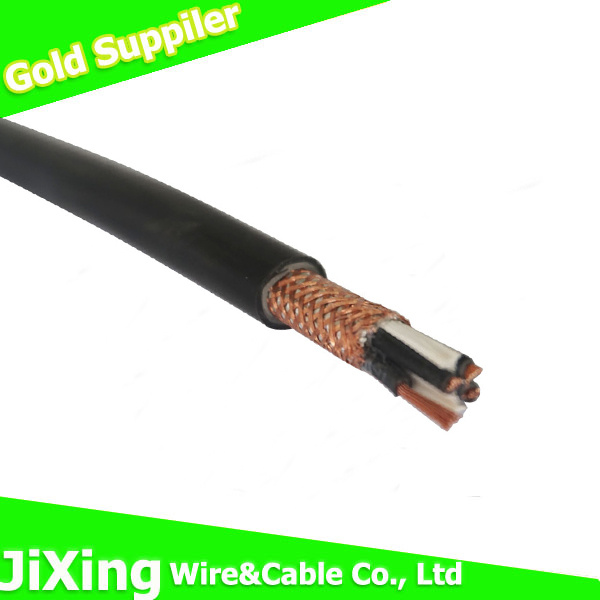

copper conductor braided power cable control cable
The cable is manufactured according to GB5023-2008 and JB8734-1998 national standard
or international standard of 60227IEC.
Model:bv copper wire
Application
The cables can be applied to the copper(aluminum)-core cables in the rated A/C voltage of
U/U450/750V and the below power, lighting, daily electric appliances, apparatus and
telecommunication equipments.
Operation characteristics
1-U0/U is 450/750V and 300/500V ;
2-The allowed long-term working temperature of wire should not exceed 70°C;
The cable (wire) shall be installed at temperature not lower than 0°C;
3-The bending radius shall not be less than 4D of the cable overall diameter it is less
25mm; the bending radius shall not be less than 6D of cable overall diameter when it
is more than25mm.
Manufacture length
1-The coil length of cable (wire) shall be 100M, filled reel length shall be more than 1000M;
2-The short cable are permitted with a length not less than 10m for each and their quantity
shall not exceed 10% of the total supply length, and short length quantity of every piece
not more than 2pcs;
3-Any supply length is permitted based on the agreement with buyer. The error of metering
shall not exceed ±0.5%.
Specifications:
| Type | Description | Specification |
| Rated voltage (V) | No. of cores | Nominal cross-sectional area (mm 2 ) |
| BV | Cu conductor PVC insulated cable(wire) | 300/500 | 1 | 0.75-1 |
| 227 IEC 01(BV) | Single-core hard conductor non-sheathed cable(wire) | 450/750 | 1 | 1.5-400 |
|
|
|
|
|
|
|
|
| BV 300/500V Cu conductor PVC insulated cable (wire) |
|
|
|
|
|
|
|
|
| Nominal cross-sectional area (mm 2 ) | Construction of conductor (No. of wires) | Insulation thickness (mm) | Max Outer diameter (mm) | Max. D.C. resistance at 20 °C (Ω/km) | Min Insulation resistance at 70 °C (MΩ/km) | Current rating in air at 25 °C (A) | Approx. Weight of cable (kg/km) |
| 0.75 | 1 | 0.6 | 2.4 | 24.5 | 0.012 | 13 | 10.9 |
| 1.00 | 1 | 0.6 | 2.7 | 18.1 | 0.013 | 20 | 11.5 |
|
|
|
|
|
|
|
|
| 227 IEC 01 ( BV ) 450/750V Single-core hard conductor non-sheathed cable(wire) |
|
|
|
|
|
|
|
|
| Nominal cross-sectional area (mm 2 ) | Construction of conductor (No. of wires) | Insulation thickness (mm) | Max Outer diameter (mm) | Max. D.C. resistance at 20 °C (Ω/km) | Min Insulation resistance at 70 °C (MΩ/km) | Current rating in air at 25 °C (A) | Approx. Weight of cable (kg/km) |
| 1.5 | 1 | 0.7 | 3.3 | 12.1 | 0.011 | 25 | 19.9 |
| 2.5 | 1 | 0.8 | 3.9 | 7.41 | 0.01 | 34 | 31.4 |
| 4 | 1 | 0.8 | 4.4 | 4.61 | 0.0085 | 44.5 | 46.3 |
| 6 | 1 | 0.8 | 4.9 | 3.08 | 0.007 | 58 | 66 |
| 10 | 7 | 1.0 | 6.4 | 1.83 | 0.007 | 79.5 | 116 |
| 16 | 7 | 1.0 | 8 | 1.15 | 0.005 | 111 | 175 |
| 25 | 7 | 1.2 | 9.8 | 0.727 | 0.005 | 146 | 275 |
| 35 | 7 | 1.2 | 11 | 0.524 | 0.004 | 180 | 372 |
| 50 | 19 | 1.4 | 13 | 0.387 | 0.0045 | 225 | 496 |
| 70 | 19 | 1.4 | 15 | 0.268 | 0.0035 | 280 | 701 |
| 95 | 19 | 1.6 | 17 | 0.193 | 0.0035 | 344 | 969 |
| 120 | 37 | 1.6 | 19 | 0.153 | 0.0032 | 397.5 | 1202 |
| 150 | 37 | 1.8 | 21 | 0.124 | 0.0032 | 455 | 1478 |
| 185 | 37 | 2.0 | 23.5 | 0.0991 | 0.0032 | 519 | 1853 |
| 240 | 61 | 2.2 | 26.5 | 0.0754 | 0.0032 | 541 | 2417 |
| 300 | 61 | 2.4 | 29.5 | 0.0601 | 0.003 | 636 | 3024 |
| 400 | 61 | 2.6 | 33.5 | 0.047 | 0.0028 | 727 | 3825 |
Our factory:
shenzhen jixing wire&cable co.,ltd .is a specializing in the production of wire and cable, our products : 0.6/1kv plastic insulation,cross-linked insulated power cable,LSZH cables environmentally friendly,flame retardant cables,fire resistant cables,aluminum cable,branch cable,B series(rated voltage 450/750 and bellow) plastic wire and cable,XLPE wires and specifications.
Company has the most advanced testing equipment and production equipement,quality has reached the national and industry standards.
Jixing wire&cables:
Bare Conductor, Bare Copper Rod, Bare Aluminum Rod.
2 450/750V and below PVC Insulated Electrical Wires and Power Cables.
3 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.
4 0.6/1kV PVC Insulated Power Cables.
5 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6 450/750V and below Control Cables.
7 1kV Aerial Bundled Cables.
Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
