Copper Conductor Flexible Electric Wire Cable

Copper Conductor Flexible Electric Wire Cable
Price: US $ 5/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 100/Meter
Pay Type: L/C,T/T
Prod Model: RVV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage Range: 0.6/1kv
Current: AC
Conductor: Stranded Copper
Core Number: 1-19
Cross Section: 0.5-35mm2
Type: Insulated
Conductor Type: Stranded
Conductor Material: Copper
Insulation Material: PVC
Certification: ISO9001
Application: Power Transmission
Range Of Application: Power Transmission
Brand: Qiangling

Product Description

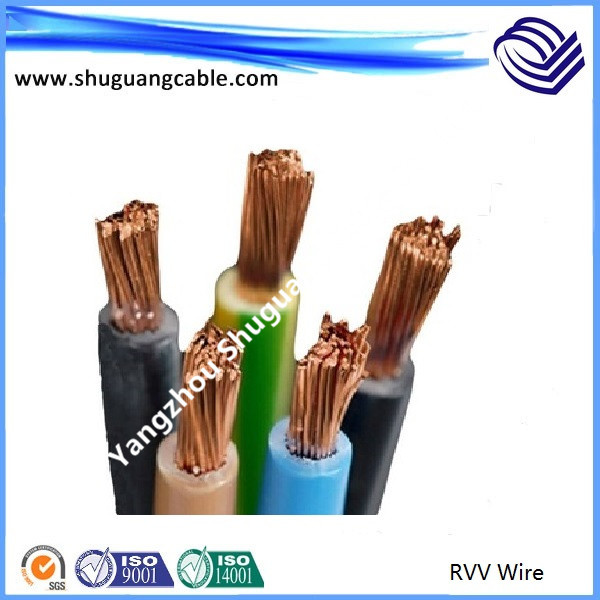

Copper Conductor Flexible Power Cable

1. Application Area
It is suitable for linking the household electrical appliance, small electric tools, instrument and power lighting devices with the rated voltage equal or less than AC 450/750V.

2. Main performance:
Maximum continuous operating temperature of cable is 70 ºC.
The ambient temperature of cable:≥0ºC.
The bending radius of cable: more than 4 times of overall diameter.

3. Type & Description
TypeVoltageNominal cross-section
mm2
CoresDescription

BV

300/500V

0.75~1

1
Copper core PVC insulated wire

BVR

450/750V

2.5~70

1
Copper core PVC insulated soft wire

BVV

300/500V

0.75~10

1
Copper core PVC insulated PVC
sheathed circular type cable

4. Structure
BV  300/500V PVC insulated wire
Nominal
cross-section of conductor
mm2
Stranded conductor in a single number at least (Nominal thickness of insulation) mmUpper limit of the average
outside
diameter
mm
20ºC max. D.C.
resistance of copper conductor)
Ω/km
Insulation resistance when the minimum value at 70
MΩ·km
0.7570.62.624.50.012
170.62.818.10.011

BVR  450/750V PVC insulated soft wire
Nominal cross-section of conductor
mm2
Stranded conductor in a single number at leastNominal thickness of insulation mmUpper limit of the average outside diameter
mm
20ºC max.
D.C. resistance of copper conductor
Ω/km
Insulation resistance when the minimum value at 70
MΩ·km
2.5190.84.17.410.011
4190.84.84.610.009
6190.85.33.080.0084
10491.06.81.830.0072
16491.08.11.150.0062
25981.210.20.7270.0058
351331.211.70.5240.0052
501331.413.90.3870.0051
701891.416.00.2680.0045

BVV  300/500V PVC insulated PVC sheathed rotundity cable(single core)
Nominal cross-section of conductor)
mm2
Solid or stranded conductor in a single number at leastNominal thickness of insulation mmNominal thickness of sheath mmUpper limit of the average outside diameter mm20ºC max. D.C. resistance of
copper conductor
Ω/km
Insulation resistance when the minimum value at 70
MΩ·km
0.7510.60.84.424.50.012
1.010.60.84.518.10.011
1.510.70.85.012.10.011
1.570.70.85.212.10.010
2.510.80.85.77.410.010
2.570.80.85.97.410.009
410.80.96.54.610.0085
470.80.96.84.610.0077
610.80.97.13.080.0070
670.80.97.33.080.0065
1071.00.98.81.830.0065





Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".

With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.

We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.

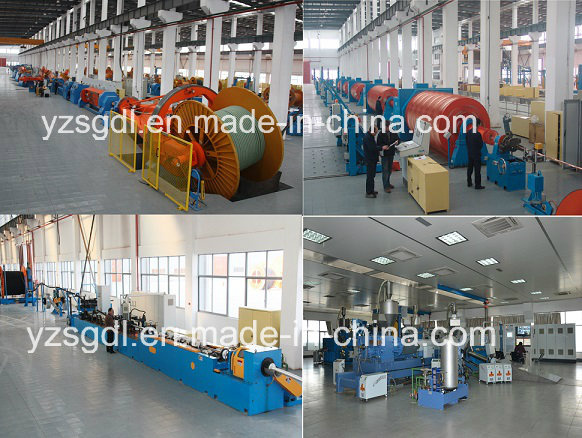

With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.

"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
