Copper Conductor Insulated Electric/Electrical Wire
| Price: |
US $ 0.5/Meter |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
RVS |
| Product Name: |
Ecectric Wire |
| Ecectric Wire Length: |
100m/Roll |
| Voltage Range: |
300/500V |
| Ecectric Wire Color: |
as Require |
| National Standard: |
3c/Ce/SGS/RoHS |
| Ecectric Wire Type: |
Copper Wire |
| Cross Area: |
1.5-2.5-4-........Square mm2 |
| Ecectric Wire Shape: |
Round Wire |
| Delivery: |
15-20days After Receive The Payment |
| Ecectric Wire Conductor: |
Bare Copper |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Yongkuntai |
Product Description
Product Description

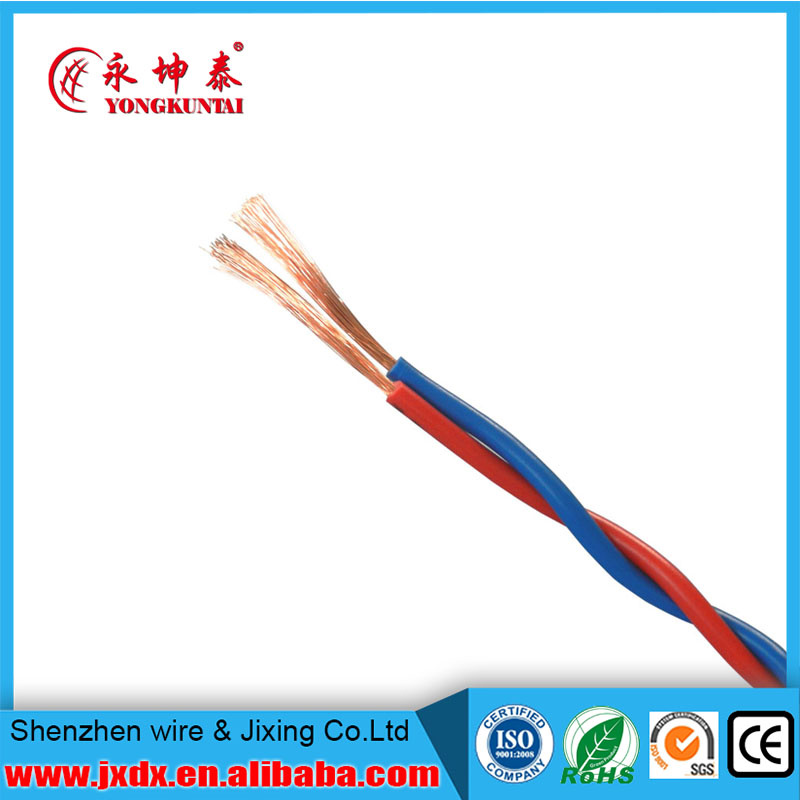

Copper Conductor Insulated Electric/Electrical Wire
Specification:Code
Designation
by IEC | Code
Designation
by GB | Rated Voltage | Name | Application | Rated Temperature |
| 60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors
Instrument etc. |
0°C to +70°C |
| 60227 IEC 05 | BV | 450/750V |
| | BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) |
| | BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
| 60227 IEC10 | BVV | 300/500V |
| Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
| | BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
| | BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
| 60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
| 60227 IEC 06 | RV | 300/500V |
| 60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
| | RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
| 60227 IEC 53 | RVV | 300/500V |

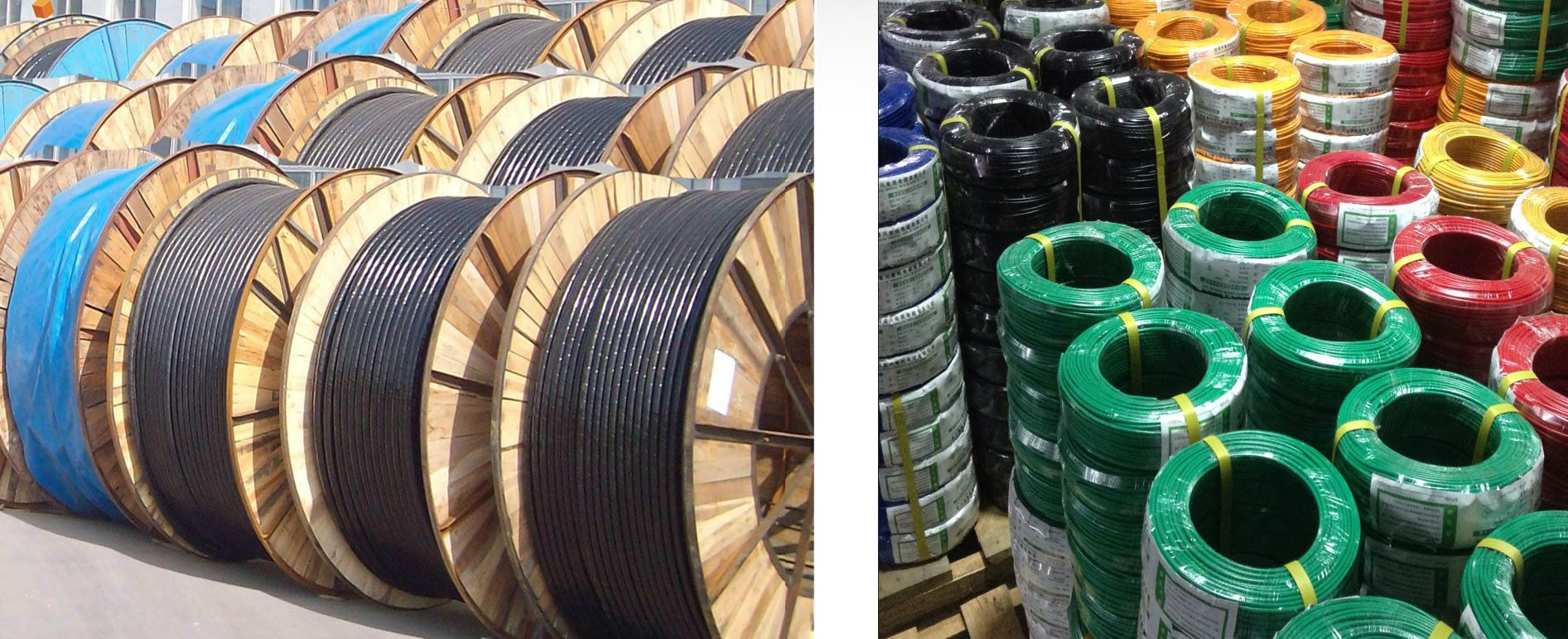

Payment Term: 30%deposit before production 70%balance payment before delivery.Delivery Time: 15-20 days after receive your payment.Package: 100m/roll, film package, white bags or as required.

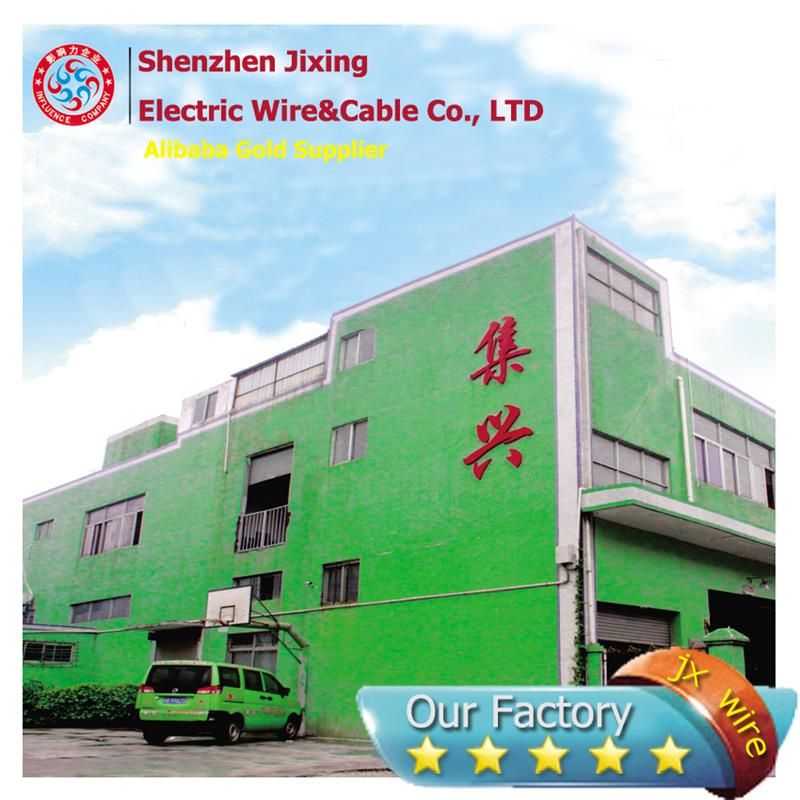

Factory Information: Shenzhen Jixing Electric Wire&Cable Co.,Ltd, is a medium enterprise specialized in the production of wire and cable. Our factory covers and area of 12,000 square meters, we have 126 staff, including 11 engineersand technical experts.Technical operation of the frontline workers have come up to the average of national requirements. We have engaged in wire and cable more than 20 years, we have a whole advanced production equipment and well management system, rich experience and outstanding talented.Because of our excellent quality and best service, we enjoy high reputations and strong supports from China and Abroad. Our products: 0.6/1kV PVC, XLPE insulated armored power cable, environment-friendly LSZH (low smoke halogen free) cable, flame retardant cable, branching wire, aluminum cable, B series PVC/XLPE sheath cable and other varies of welding cable, control cable and internet cable, more than 28 kinds and 6400 specifications, all the cable are low voltage(450/750V, 300/500V and below) and we have received ISO9001, CE, ROHS quality system certification.
Customers Story
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
