| Prod Model: |
Cu/PVC/PVC |
| Rated Voltage: |
450/750V, 600/1000V |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Range Of Application: |
Power Controlling |
| Brand: |
Hongda |
| Conductor Type: |
Solid/Stranded/Flexible |
| Application: |
Power Controlling |
Product Description

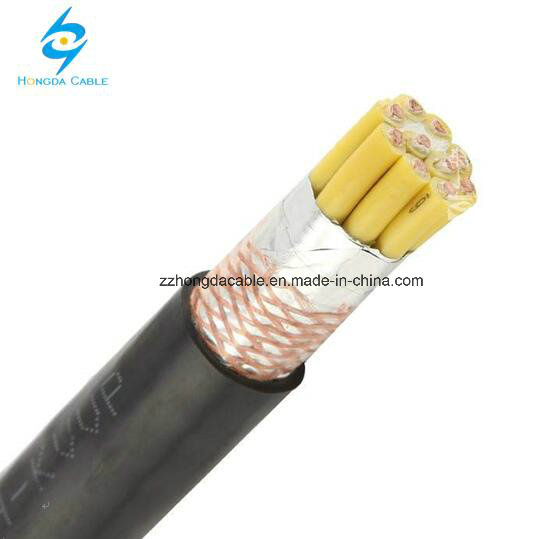

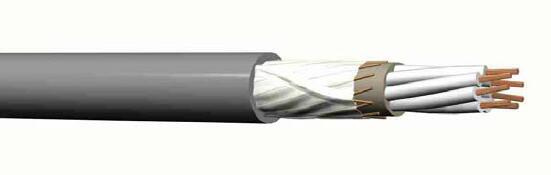

Copper Conductor PVC Insulated Control Cable
1.ApplicationWiring for controlling electrical equipment and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution with rated voltage up to 450/750V(600/1000V) A.C.
2.StandardsGB/T9330-2008 ,IEC 60502, etc.
Hongda Cable can also design and produce for special application requirement.
3.Products Type| Chinese Type | Descriptions | Applications |
| KVV | Copper conductor PVC insulated PVC sheathed control cables | For laying indoor, in tunnels, ducts,
conduit etc.permanent place |
| KVVR | Copper conductor PVC insulated and sheathed flexible control cable | For laying indoor ,in tunnels, ducts and movable using |
| KVVP | Copper conductor PVC insulated and sheathed copper wire braiding shielded control cable | For laying indoor, in tunnels, ducts, conduit etc.
permanent place where shield required. |
| KVVRP | Copper conductor PVC insulated and sheathed copper wire braiding shielded flexible control cable | For laying indoor ,in tunnels, ducts and flexible and shield
required etc.place ,easy to move |
| KVVP2 | Copper conductor PVC insulated PVC sheathed copper tape shielded control cables | For laying indoor, in tunnels, ducts, conduit etc.
permanent place where shield required. |
| KVVP2-22 | Copper conductor PVC Insulated PVC Sheathed Copper Tape shielded steel tape armored Control Cables | Used in light-current control system and heavy-current magnetic interference region. |
| KVV22 | Copper conductor PVC insulated PVC sheathed steel tape armored control cables | For laying indoor, in tunnels, ducts, conduit and direct burial
etc. Permanent place, able to bear greater mechanical force |
| KVV32 | Copper conductor PVC insulated PVC sheathed steel wire armored control cables | For laying indoor, in tunnels, ducts, conduit and direct burial
etc. Permanent place, able to bear greater mechanical force |
NOTE: Hongda Cable can produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series","Low Smoke Low Halogen (LSLH) Series", etc. control cable as customer required.
Performance in line with IEC60332: 2004 requirements.
4.Production RangeRated Voltage U0/U(Um) (kV): 450/750V, 600/1000V
No. of cores: 2~61
Nominal cross-section(mm2): 0.75~10
