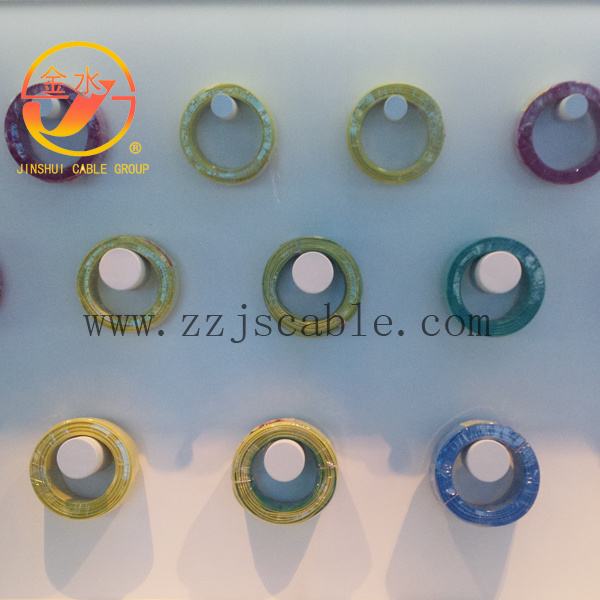

Copper Conductor PVC Insulated Flexible Connector Wire
| Price: |
US $ 0.01-0.99/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
1*150 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Buiding |
| Range Of Application: |
Building |
| Brand: |
Jinshui |
Product Description
PVC insulated wires are used for electricity transmission for building, construction and lighting,which are fit for A.C. Rated voltage 450/750V.
BV-105 model should be no more than 105ºC. Other should be no more than 75ºC,installation temperature should be above 0ºC.
Model and name
| TYPE | Rated voltage
V | No. Of cores | Nominal section mm² |
| Copper conductor PVC insulated wire (227IEC05) | 300/500 | 1 | 0.5~1 |
| Copper conductor pvc insulated wire (227IEC01) | 450/750 | 1 | 1.5~400 |
| Heat resistant copper conductor pvc insulated wire at 90ºC(227IEC07) | 300/500 | 1 | 0.5~2.5 |
| Aluminum conductor pvc insulated wire | 450/750 | 1 | 2.5~400 |
| Copper conductor pvc insulated flexible wire | 450/750 | 1 | 0.75~70 |
| Copper conductor pvc insulated pvc sheathed round wire(227IEC10) | 300/500 | 2~5 | 1.5~35 |
| Copper conductor pvc insulated pvc sheathed round wire | 300/500 | 1 | 0.75~10 |
| Aluminum conductor pvc insulated pvc sheathed round wire | 300/500 | 1 | 2.5~10 |
| Copper conductor pvc insulated pvc sheathed flat wire | 300/500 | 2,3 | 0.75~10 |
| Aluminum conductor pvc insulated pvc sheathed flat wire | 300/500 | 2,3 | 2.5~10 |
| Copper conductor pvc insulated flexible connector wire(227IEC06) | 300/500 | 1 | 0.5~1 |
| Copper conductor pvc insulated flexible connector wire(227IEC02) | 450/750 | 1 | 1.5~240 |
| Copper conductor pvc insulated flat flexible connector wire(227IEC42) | 300/300 | 2 | 0.5~0.75 |
| Copper conductor pvc insulated flexible wisting connector | 300/300 | 2 | 0.2~2.5 |
| Copper conductor pvc insulated pvc sheathed round flexible connector wire (227IEC52) | 300/300 | 2,3 | 0.5~0.75 |
| Copper conductor pvc insulated pvc sheathed round flexible connector wire (227IEC53) | 300/500 | 2~14 | 0.3~2.5 |
| Copper conductor heat resistant pvc insulated flexible connector at 90ºC wire(227IEC08) | 300/500 | 1 | 0.5~2.5 |
| Copper conductor pvc insulated screened flexible wire | 300/300 | 1
2 | 0.08~0.4
0.08~2.5 |
| |
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
