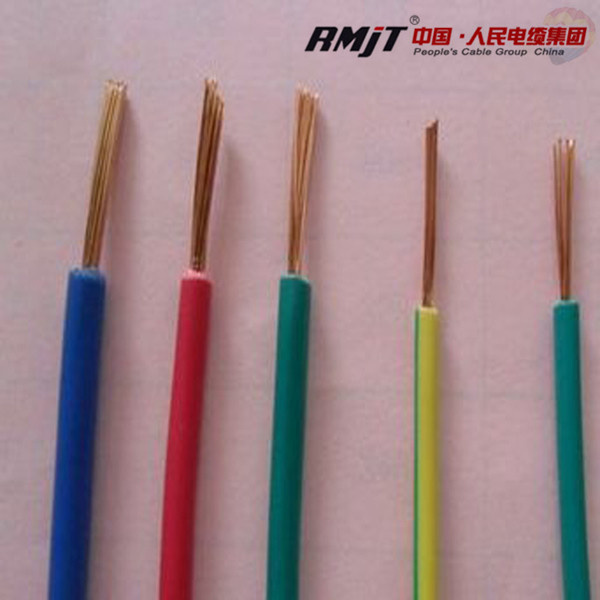

Copper Conductor PVC Insulation House Wire
| Price: |
US $ 0.09-0.23/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
house wire |
| Number Of Wire: |
Solid, Two, Three.. |
| Type: |
Insulated |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Strand |
| Brand: |
Rmjt |
Product Description
1.Application of house wire
The PVC Insulated House Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
2.Construction of house wire
(1).Conductor: bare solid/stranded copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement.
(4).Outer sheath: PVC tapes ST2 to IEC.
3.Standard of house wire
The products can be produced according to standard GB/T 5023, IEC60227, BS6004, JB8734,and more we have extended the range of the type to fit for the requirement of the consumers.
0.5mm2-400mm2 various types of wire size, we can make according to your request.
| Type | Description | Nominal sectional Area(mm2 ) | Cores | Rated Voltage (V) | Main Application |
| 60227IEC01(BV) | General purpose single-core hard conductor non-sheath cable | 1.5~400 | 1 | 450/750 | Used for fixed installation in air or wire conduit |
| 1.5(B) | 1 |
| 60227IEC05(BV) | Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe | 0.5~1.0 | 1 | 300/500 |
| 60227IEC02(RV) | General purpose single-core flexible conductor non-sheath cable | 1.5~10 | 1 | 450/750 | Mainly used for medium or light duty movable electrical appliances, instruments, household appliances ,power, lighting system and so on in flexing application. |
| 60227IEC06(RV) | internal wiring conductor temperature 70oC flexible conductor non-sheath cable | 0.5~1.0 | 1 | 300/500 |
| 60227IEC52(RVV) | Light-type PVC sheath flexible cable | 0.5~0.75 | 2~3 | 300/300 |
| 60227IEC53(RVV) | Normal PVC sheath flexible wire | 0.75~2.5 | 2~5 | 300/500 |
| RVV | Ordinary PVC-sheathed flexible cable | 1.5~6.0 | 2 |
| 4.0 | 3~5 |
| 0.75~2.5 | 6 |
| 0.75~1.5 | 7~8 |
| 0.75~1.0 | 10,12,
15,16,19 |
| RVS | PVC insulation stranded connection flexible wire | 0.5~2.5 | 2 | 300/300 |
| RVB | Copper core PVC insulated PVC sheathed flat type cable | 0.5~2.5 | 2 |
| BVVB | Copper core PVC insulation PVC sheath flat cable | 0.75~10 | 2~3 | 300/500 | Used for fixed installation in air or wire conduit in case of high mechanical protection and wet circumstances |
| BLVVB | Aluminum core PVC insulation PVC sheath flat cable | 2.5~10 |
| BVV | Light-type PVC sheath cable | 0.75~10 | 1 |
| BLVV | Aluminum core PVC insulation PVC sheath round cable
| 2.5~10 |
| 60227IEC10(BVV) | Light-type PVC sheath cable | 1.5~10 | 2~5 |
| 60245IEC53(YZ) | Rubber sheathed cable | 0.75~2.5 | 2~5 | 300/500 | Used for light , medium, high duty movable electrical appliance |
| YZ | 4~6 | 2~5 |
| 1.5~6 | 3 1 |
| YC | 1.5~95 | 1~4 | 450/750 |
| 1.5~25 | 5 |
| 2.5~95 | 3 1 |
| 60245IEC81(YH) | 16~95 | 1 | none |
| BV | Copper conductor PVC-sheathed flexible cable | 0.75(B),1.0(B) | 1 | 300/500 | Used for fixed installation in air or wire conduit |
| BLV | Aluminum core PVC insulation cable | 2.5~400 | 1 | 450/750 |
| BVR | Copper core PVC insulation flexible cable | 2.5~70 | 1 | 450/750 | Used for fixed in flexing application |
| RVVP | PVC insulation shield PVC sheath flexible cable | 0.3~2.5 | 1 | 300/300 |
| 0.12~1.5 | 2 |
| 0.12~1.5 | 3 |
| 0.12~0.4 | 4~10,12,14,
16,19,20,24 |
| AVVR | | 0.12~0.4 | 3~10,12,14,
16,18~20,24 |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
