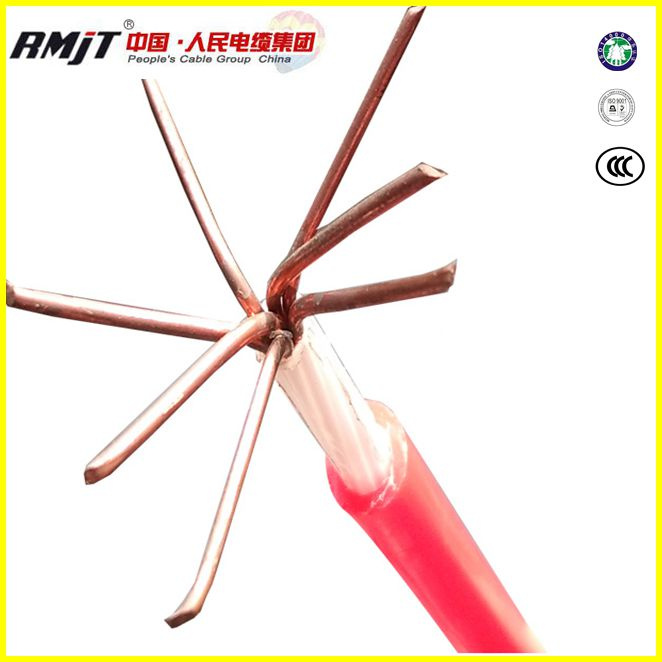

Copper Conductor PVDF Insulation Hmwpe Sheathed Cathodic Protection Cable
| Price: |
US $ 1-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
electrical cable |
| Insulation Color: |
Black, Red, Yellow or as Request |
| Standard: |
IEC, ASTM, DIN, BS, NFC |
| Manufacturer: |
People's Cable Group |
| Range Of Application: |
Cathodic Protection |
| Experience: |
26 Years |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Certification: |
CCC |
| Insulation Material: |
PVDF |
| Sheath Material: |
Hmwpe |
| Model: |
Electrical Cable |
| Brand: |
Rmjt |
Product Description
1.ApplicationThe primary insulation layer is Polyvinyliden fluoride(PVDF) and the outer sleeve (the secondary insulation) layer is High Molecular Weight Polyethylene(HMWPE), PVDF or HMWPE cables are extensively used in the cathodic protection system of highly corrosive enviroment.
The cathodic protection cable mainly used for impressed currect cathodic protection system. It has excellent electrical properties, mechanical behavior, Heat aging property, resistance to environmentstress and chemical corrosion resistance ability, very low water absoption and simple structure, easy to use, and not be limited to the setting high-drop installation.2.Characteristics1)Long-term permissible working temperature of cable conductor: PVC insulated cable: 70ºC
HMWPE insulated cable:90ºC
PVDF/KYNAR insulated cable:135ºC
2) The layout temperature of cable shall not be lower than -20ºC
3) Minimum bending radius: Diameter up to 25mm, 4 x OD; Diameter over 25mm, 6 x OD3.StandardPVDF cable meets or exceeds the following standards:BS, IEC4.SpecificationSize (mm2) | Maximum Overall Dia
(mm) | Thickness of Insulation
(mm) | Dia over
Core
(mm) | Thickness of
Sheath
(mm) | Nominal
Overall Dia
(mm) | Weight (Kg/km) |
1x6 | 3.12 | 0.7 | 4.5 | 1.4 | 7.3 | 104 |
1x10 | 4.05 | 0.7 | 5.5 | 1.4 | 8.3 | 150 |
1x16 | 5.10 | 0.7 | 6.5 | 1.4 | 9.3 | 214 |
1x25 | 6.40 | 0.9 | 8.2 | 1.4 | 11.0 | 317 |
1x35 | 7.50 | 0.9 | 9.3 | 1.4 | 12.1 | 420 |
1x50 | 8.90 | 1.0 | 11.1 | 1.4 | 14.2 | 560 |
1x70 | 10.70 | 1.1 | 13.2 | 1.5 | 16.4 | 787 |
1x95 | 12.60 | 1.1 | 15.0 | 1.5 | 18.3 | 1050 |
1x120 | 14.98 | 1.2 | 17.6 | 1.6 | 21.2 | 1450 |
1x150 | 15.96 | 1.4 | 19.0 | 1.7 | 22.8 | 1650 |
1x185 | 17.78 | 1.6 | 21.3 | 1.7 | 25.1 | 2030 |
1x240 | 20.52 | 1.7 | 24.3 | 1.9 | 28.4 | 2660 |

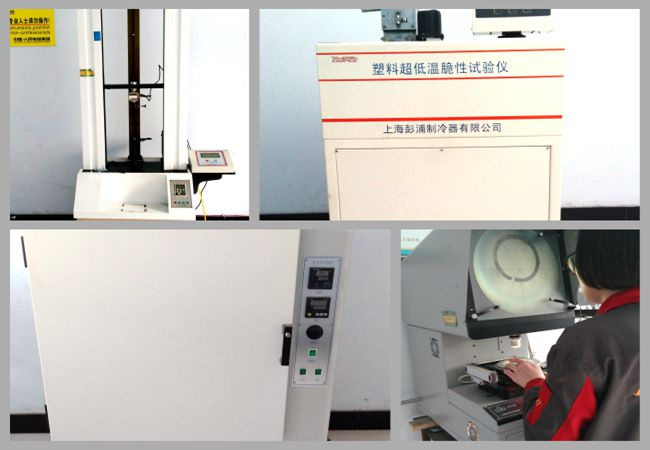

5.Test Progress

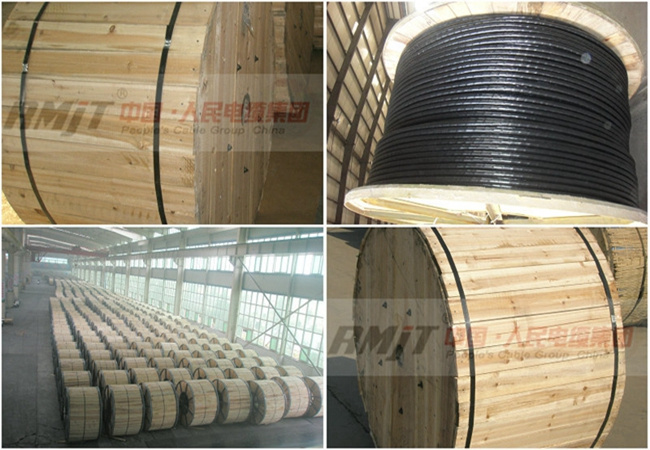

6.PackagePacking in wooden drum, steel-wooden drum or as customer's requirement

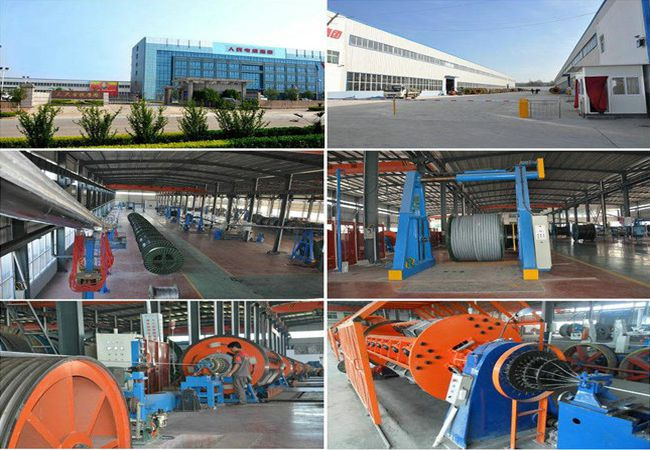

7.About UsPeople's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
8.CertificationAs top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
9.Customer VisitWe have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
10.RFQs:Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc. Contact InfoFactory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
