| Prod Model: |
SYWV018 |
| Color: |
Black,White,Red,Blue,Yellow etc |
| Size: |
Customized |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
CCC |
| Type: |
Rg59/RG6 |
| Brand: |
Gemt |
Product Description
Copper Conductor RG59 Coaxial Cable (SYWV)
1. Cable Introduction:
Application: Applicable to close-circuit TV system below 1GHz, public antenna system(CCTV/CATV/MATV) as branch line and owner line or equipment line for other high requency machine.
Structure:
Conductor: O.F.C, Pure Copper, CCA,CCS
Cross Sectional Area: 0.59mm,0.81mm,1.01mm
FPE Insulator
Brading:Al,CCA,Copper
PVC Jacket
Color: White, Black, Grey, etc
Uses:
used for video surveillance line, Conference Video and other Erection of electronic circuits, engineering decoration signal transmission, connection of audio-visual equipment and other electronic devices , transmit RF signal
Detailed spec. are as follows, Product ID | Name of product | Model specifications | Process structure | Inner conductor/mm | Insulated diameter/mm | Shielding structure | Jacket/color | XD-2101 | 75Ω | SYV 75-3 (TC96) | 0.5(BC) | PE 2.95 | 16/6/0.10(TC) | PVC/ | XD-2101-2 | 75Ω RF coaxial cable | SYV 75-3-41 (96 series) | 7/0.18BC | PE 3.0 | 1. 2. Weaving 16/6/0.12 (BC) | PVC/ Black | XD-2101-1 | 75Ω RF coaxial cable | SYV 75-5 (96 series) | 0.8(BC) | PE 4.8 | 1.Longitudinal aluminum foil packet 2. Weaving 16/6/0.10 (BC) | PVC/ Black | XD-2101-3 | 75Ω RF coaxial cable | SYV 75-5 (96 series) | 16/0.12BC | PE 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/6/0.10 (BC) | PVC/ Black | XD-2102 | 75Ω RF coaxial cable | SYV 75-5 (128 series) | 0.8(BC) | PE 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/8/0.10 (BC) | PVC/ Black | XD-2102-2 | 75Ω RF coaxial cable | SYV 75-5 (multi-core 128 series) | 16/0.12BC | PE 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/8/0.10 (BC) | PVC/ Black | XD-2102-1 | 75Ω RF coaxial cable | SYV 75-5-41 (128 series | 0.8(BC) | PE 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/8/0.12 (BC) | PVC/ Black | XD-2103 | 75Ω RF coaxial cable | SYV 75-7 (TC144 series) | 1.2(BC) | PE 7.2 | 1. Longitudinal aluminum foil packet 2. Weaving 24/6/0.10 (BC) | PVC/ Black | XD-2103-1 | 75Ω RF coaxial cable | SYV 75-7-8 (144 series) | 1.2(BC) | PE 7.2 | 1. Longitudinal aluminum foil packet 2. Weaving 16/9/0.12(BC) | PVC/ Black | XD-2401 | 75Ω RF coaxial cable | SYV 75-3 (CCA64 series) | 0.5(BC) | PE 2.95 | Weaving 16/4/0.12 (CCA) | PVC/ Black | XD-2402 | 75Ω RF coaxial cable | SYV 75-5 (CCA96 series) | 0.8(BC) | PE 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/6/0.12 CCA) | PVC/ Black | XD-2104-1 | | TSYV-75-3-I160 series | 25×1 Su-Line | PE+PVC 3.0 | 1. Longitudinal aluminum foil packet 2. Weaving 16/5/0.10BC) 3. Weaving 16/5/0.10 BC) | PVC/ Black | XD-2105 | Elevator with integrated cable | TSYV-75-4TVVB 2×1.0160 series | A)65/0.12(CCS) | PE 4.0 | 1. Weaving 16/5/0.10BC) 2. Weaving 16/5/0.10 BC) | Elasticity PVC/ Black | B)32/0.20(BC) | PVC 2.6 | | XD-2106 | High-speed elevators dedicated video lines | TSYV-75-5-I176 series | 60×1 Tian Su-Line | PE+PVC 4.8 | 1. Longitudinal aluminum foil packet 2. Weaving 16/5/0.10BC) 3. Weaving 16/6/0.10 BC) | Elasticity PVC/ Black | XD-2107 | Camera-only lanes | A)RG-59 | 0.65(BC) | PE3.8 | 1. Weaving 16/7/0.10(BC) | PVC/ Black | B)2C×0.75 | 24/0.2 (BC) | PVC2.4 |
|
2. Details of Transaction:
1) Minimum order quantity: 10 kilometers at least
2) Price: FOB or CIF at any port in China
3) Payment: 30% down payment, balance against B/L copy
4) Lead Time: within 20 days
5) Packing: 100m/roll or 500m/roll in bag, box or drum
6) Sample: Free sample is available for you
7) Individual Service: can print your logo or brand name on cable
3. Product description:Conductor: Multi-Unit bare copper wire strands
Insulation: Polyvinyl chloride (PVC)
Sheath: Polyvinyl Chloride (PVC)
Rated Voltage: UO / U for 300/500 V
Temperature Rating: Long-term temperature should be no more than 704. To Which Market:
5. Why Choose Us(GEMT): G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable
6. Company Information:
Company:
Factory:

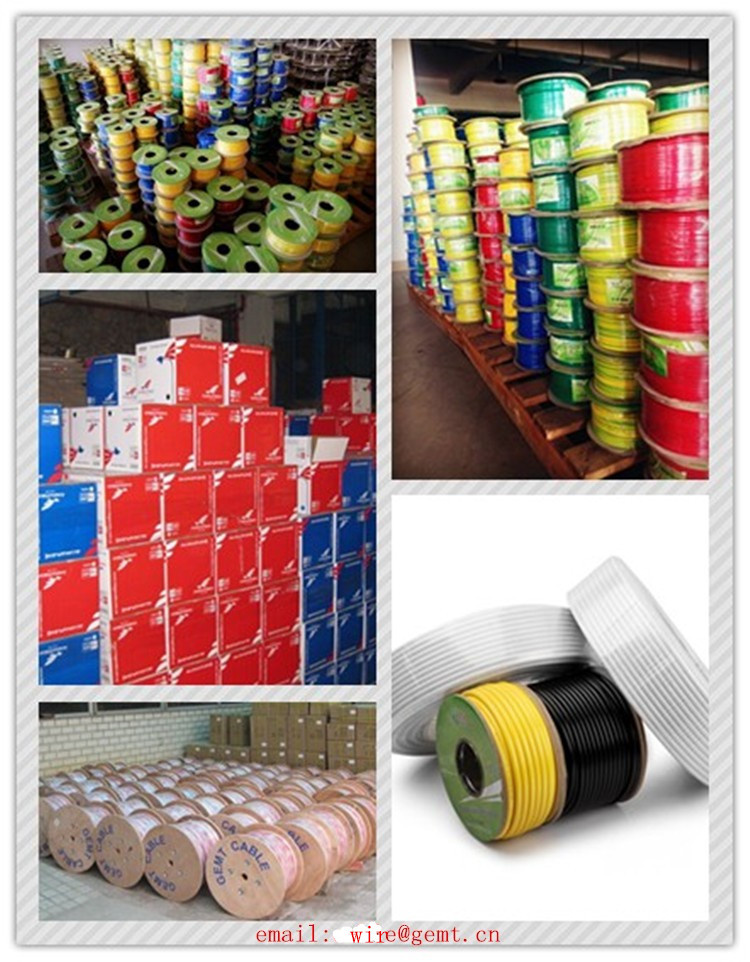

Packing & Shipping:
Trade Show:
Certification:
WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~
PLS FEEL FREE TO
CONTACT ME : VERA ZHUANG
TEL:+86-13415529380
Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.
The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.
Our tenet is "Specialized quality, Sincere service",
From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise
Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
