| Prod Model: |
YJV42/YJY43 |
| Port: |
by Buyer's Request |
| Application: |
Underground |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Sheath Material: |
PE/PVC |
| Wire Core Material: |
Copper |
| Model: |
Yjv42/Yjy43 |
| Brand: |
Jp |
Product Description
Application

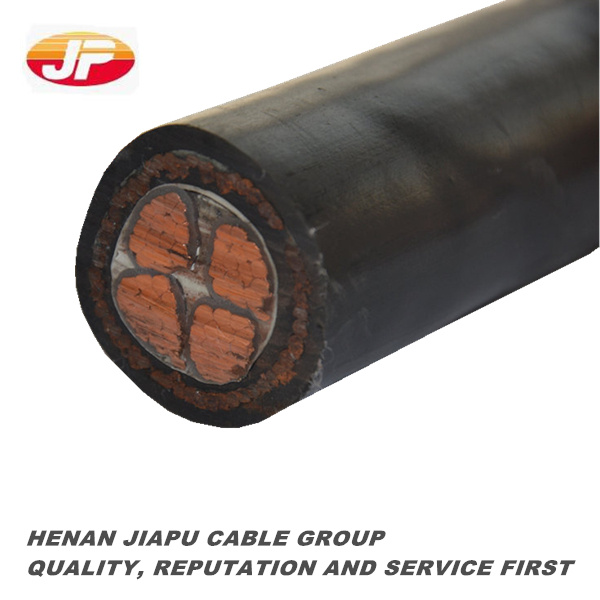

Low Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Property
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.
Specification
Standard:
IEC,BS,VDE,AS/NZS,ICEA,JIS and so on;Only the halogen free cables shall be generally produced complied with IEC61034 and 60754.
Designing and manufacturing special power cable according to the other standards required by the customers requests.
0.6/ 1kV ,Two Cores,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;
| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 10.2 | 13.0 | 14.7 | 110 | 227 | 325 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.2 | 14.0 | 15.7 | 142 | 270 | 378 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.2 | 15.0 | 16.7 | 181 | 321 | 438 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 13.4 | 16.2 | 17.9 | 233 | 386 | 516 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.3 | 1.7 | 1.5 | 1.7 | 14.8 | 17.6 | 20.2 | 315 | 483 | 763 | 194 | 363 | 643 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.3 | 1.7 | 1.5 | 1.7 | 16.9 | 19.6 | 22.3 | 455 | 646 | 963 | 259 | 450 | 767 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 20.2 | 23.0 | 26.3 | 646 | 892 | 1413 | 363 | 591 | 1112 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 22.5 | 25.2 | 28.6 | 857 | 1110 | 1682 | 434 | 683 | 1242 |
| 50 | 8.4 | 1.0 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 25.6 | 28.3 | 31.7 | 1123 | 1411 | 2061 | 555 | 838 | 1474 |
| 70 | 10.0 | 1.1 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.9 | 22.7 | 25.6 | 29.1 | 1427 | 1692 | 2295 | 591 | 836 | 1382 |
| 95 | 11.7 | 1.1 | 1.2 | 1.2 | 0.2 | 2.0 | 1.9 | 1.7 | 2.0 | 25.8 | 28.6 | 33.3 | 1935 | 2222 | 3132 | 782 | 1050 | 1914 |
| 120 | 13.3 | 1.2 | 1.2 | 1.2 | 0.5 | 2.0 | 2.0 | 1.9 | 2.1 | 29.2 | 33.6 | 36.7 | 2431 | 3072 | 3777 | 971 | 1573 | 2226 |
| 150 | 14.5 | 1.4 | 1.3 | 1.2 | 0.5 | 2.0 | 2.1 | 2.0 | 2.2 | 31.9 | 36.5 | 39.3 | 2984 | 3696 | 4450 | 1171 | 1845 | 2545 |
| 185 | 16.4 | 1.6 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.1 | 2.4 | 36.5 | 41.2 | 45.4 | 3721 | 4545 | 5840 | 1461 | 2246 | 3442 |
| 240 | 18.7 | 1.7 | 1.4 | 1.4 | 0.5 | 2.5 | 2.4 | 2.2 | 2.5 | 41.3 | 46.0 | 50.3 | 4841 | 5770 | 7190 | 1924 | 2852 | 4272 |
| 300 | 20.4 | 1.8 | 1.5 | 1.5 | 0.5 | 2.5 | 2.5 | 2.4 | 2.6 | 44.7 | 49.6 | 53.8 | 6023 | 7041 | 8575 | 2363 | 3381 | 4915 |
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.
0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;
| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 10.7 | 13.5 | 15.2 | 130 | 253 | 355 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.7 | 14.5 | 16.2 | 173 | 308 | 420 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.9 | 15.7 | 17.4 | 227 | 374 | 500 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 14.1 | 16.9 | 18.6 | 297 | 458 | 596 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.7 | 18.4 | 21.1 | 413 | 591 | 886 | 236 | 414 | 709 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 17.9 | 20.7 | 23.3 | 609 | 811 | 1142 | 314 | 517 | 847 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 21.5 | 24.3 | 27.6 | 903 | 1145 | 1691 | 451 | 694 | 1240 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 23.9 | 26.7 | 30.0 | 1187 | 1456 | 2068 | 550 | 814 | 1413 |
| 50 | 8.4 | 1.0 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.8 | 27.3 | 30.2 | 33.6 | 1563 | 1881 | 2571 | 712 | 1025 | 1701 |
| 70 | 10.0 | 1.1 | 1.2 | 1.2 | 0.2 | 2.0 | 1.8 | 1.7 | 1.9 | 26.4 | 29.4 | 33.9 | 2097 | 2403 | 3321 | 849 | 1133 | 1981 |
| 95 | 11.7 | 1.1 | 1.2 | 1.2 | 0.5 | 2.0 | 1.9 | 2.0 | 2.2 | 29.8 | 34.6 | 37.6 | 2834 | 3517 | 4238 | 1111 | 1751 | 2420 |
| 120 | 13.3 | 1.2 | 1.3 | 1.4 | 0.5 | 2.5 | 2.0 | 2.0 | 2.3 | 33.2 | 38.2 | 42.4 | 3560 | 4332 | 5510 | 1377 | 2105 | 3226 |
| 150 | 14.5 | 1.4 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.0 | 2.4 | 37.9 | 42.5 | 46.9 | 4406 | 5247 | 6577 | 1693 | 2492 | 3762 |
| 185 | 16.4 | 1.6 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.2 | 2.5 | 42.9 | 47.8 | 52.1 | 5491 | 6476 | 7960 | 2109 | 3050 | 4473 |
| 240 | 18.7 | 1.7 | 1.5 | 1.5 | 0.5 | 2.5 | 2.4 | 2.4 | 2.6 | 48.0 | 53.1 | 57.4 | 7144 | 8261 | 9914 | 2707 | 3779 | 5368 |
| 300 | 20.4 | 1.8 | 1.5 | 1.5 | 0.5 | 2.5 | 2.6 | 2.5 | 2.8 | 52.5 | 57.5 | 61.8 | 8903 | 10119 | 11914 | 3337 | 4508 | 6235 |
1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.
What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
