Copper Connecting Terminals (oil-plugging)

Prod Model:	DT-35
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stainless Steel Cable Lug:	Cable Lugs and Sleeve
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity

Product Description

These terminals are suitable for the conjunction of wires, cables in the distribution equipment and the electrical equipment. DL series of aluminum connecting terminals are pressed with aluminum bar(L3), DT series of copper connecting terminals with copper bar(T2).

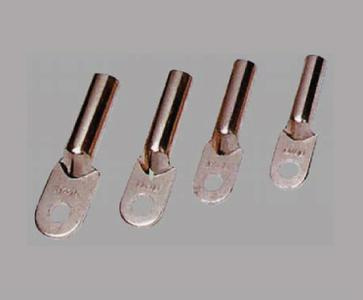

DT series Copper Connecting terminal oil plugging:
DT copper terminal is used for copper terminal electric equipment. DT copper terminal is used for copper terminal linking of copper core cable and electric equipment, the products adopt friction welding workmanshiop.
1) Application: Connection of wires in distribution equipment or power supply cable with electronic apparatus.
2) Material: T2 copper bar, good conductivity
3) Surface Treatment: Acid cleaning, primary color
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage and quick delivery

We can also offer so many other design of the Copper and Aluminium connecting terminal.
Types available:
RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series

Catalog No.	Dimensions(mm)
	φ	D	d	L	L 1	B
DT-10	8.5	9	5.5	67	31	16
DT-16	8.5	10	6.5	67	31	16
DT-25	8.5	11	7	70	34	18
DT-35	10.5	12	8.5	79	36	20.5
DT-50	10.5	14	9.5	87	40	23
DT-70	12.5	16	11.5	95	42	26
DT-95	12.5	18	13.5	105	46	28
DT-120	14.5	20	15	112	48	30
DT-150	14.5	22	16.5	118	52	34
DT-185	16.5	25	18.5	125	55	37
DT-240	16.5	27	21	136	60	40
DT-300	21	30	23	148	65	45
DT-400	21	32	26	165	70	50
DT-500	21	35	29	185	75	60
DT-630		45	34	220	85	80
DT-800		50	38	265	85	100

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.
